Scheepskabel

LKMM-FRHF

DownloadDatasheet PDF LKMM-FRHF Fire-resistant unarmoured power cable with extruded filler 0,6/1kV Application: For fixed installation in most areas and on... read more

Beschrijving

Download
Datasheet PDF

LKMM-FRHF

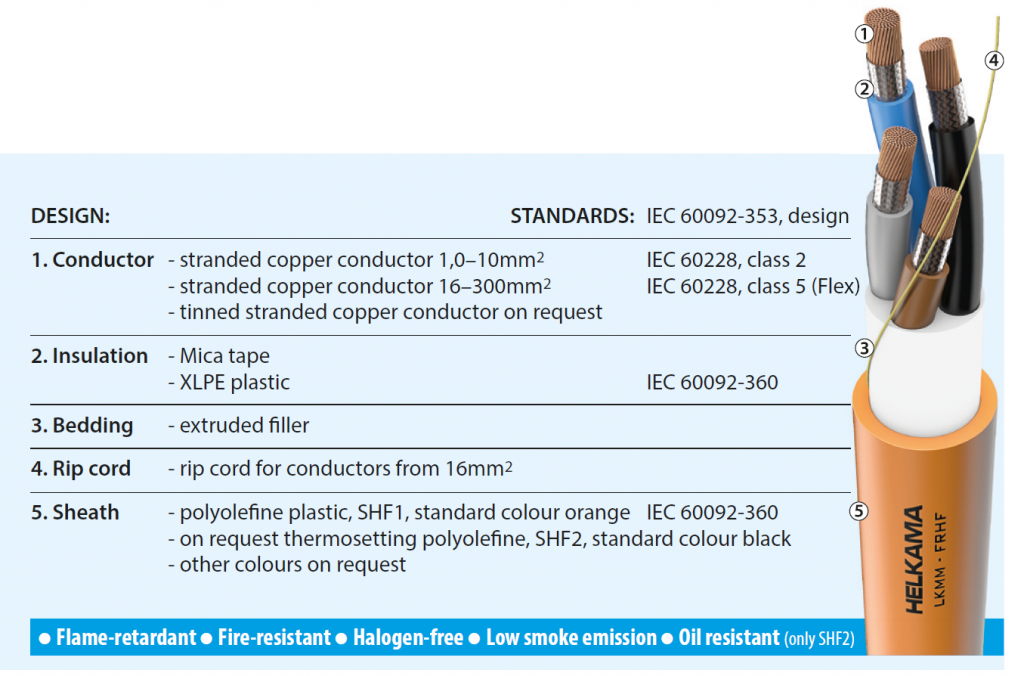

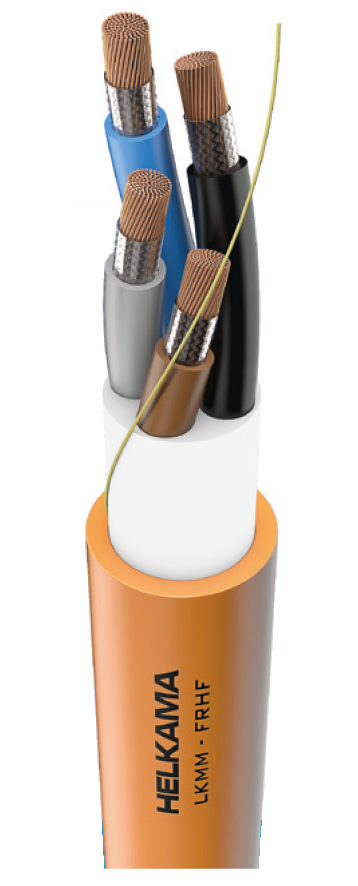

Fire-resistant unarmoured power cable with extruded filler 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant IEC 60331-1 or IEC 60331-2
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section
Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
29532 2×1,5 12 ,0 165 20 70
29533 2×2,5 13,0 195 26 75
29534 2×4 13,5 250 34 85
29535 2×6 15,5 315 44 90
29536 2×10 17,0 440 61 105
29537 2×16 Flex 20,0 570 80 120
29538 2×25 Flex 24,5 840 105 145
29539 2×35 Flex 26,0 1145 130 160
29540 2×50 Flex 30,5 1555 167 185
29541 2×70 Flex 35,5 2095 204 210
29550 29551 3×1,5 12,0 190 16 75
29552 29553 3×2,5 13,0 240 21 80
29554 29555 3×4 15,0 305 28 90
29556 29557 3×6 15,5 395 36 95
29558 29559 3×10 18,0 560 50 110
29560 29561 3×16 Flex 20,5 735 66 125
29562 29563 3×25 Flex 26,0 1095 86 155
29564 29565 3×35 Flex 28,5 1475 107 170
29566 29567 3×50 Flex 32,5 2015 137 195
29568 29569 3×70 Flex 38,5 2805 168 230
29570 29571 3×95 Flex 43,5 3630 199 265
29572 29573 3×120 Flex 48,0 4535 232 290
29574 29575 3×150 Flex 54,5 5720 267 330
29576 29577 3×185 Flex 61,0 7010 300 370
29578 29579 3×240 Flex 70,0 9220 355 420
29584 29585 4×1,5 13,0 230 16 80
29586 29587 4×2,5 14,0 285 21 85
29588 29589 4×4 15,5 370 28 95
29590 29591 4×6 17,0 490 36 105
29592 29593 4×10 20,5 700 50 120
29594 29595 4×16 Flex 23,5 940 66 140
29596 29597 4×25 Flex 28,5 1380 86 170
29598 29599 4×35 Flex 30,5 1860 107 185
29600 29601 4×50 Flex 37,0 2580 137 220
29602 29603 4×70 Flex 42,5 3545 168 250
29618 29619 5×1,5 14,0 270 13 85
29620 29621 5×2,5 16,0 335 17 95
29622 29623 5×4 17,5 450 23 105
29624 29625 5×6 18,5 585 30 115
29626 29627 5×10 21,5 850 42 130
29628 29629 5×16 Flex 25,5 1145 55 150
29630 29631 5×25 Flex 30,5 1710 71 185

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
