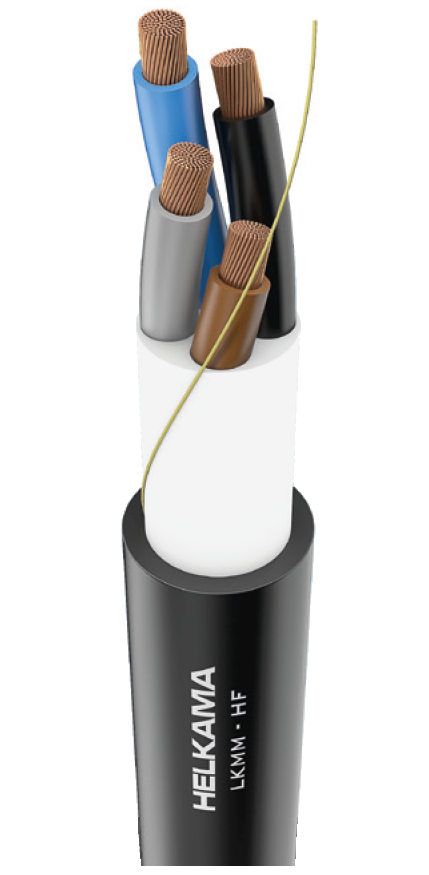

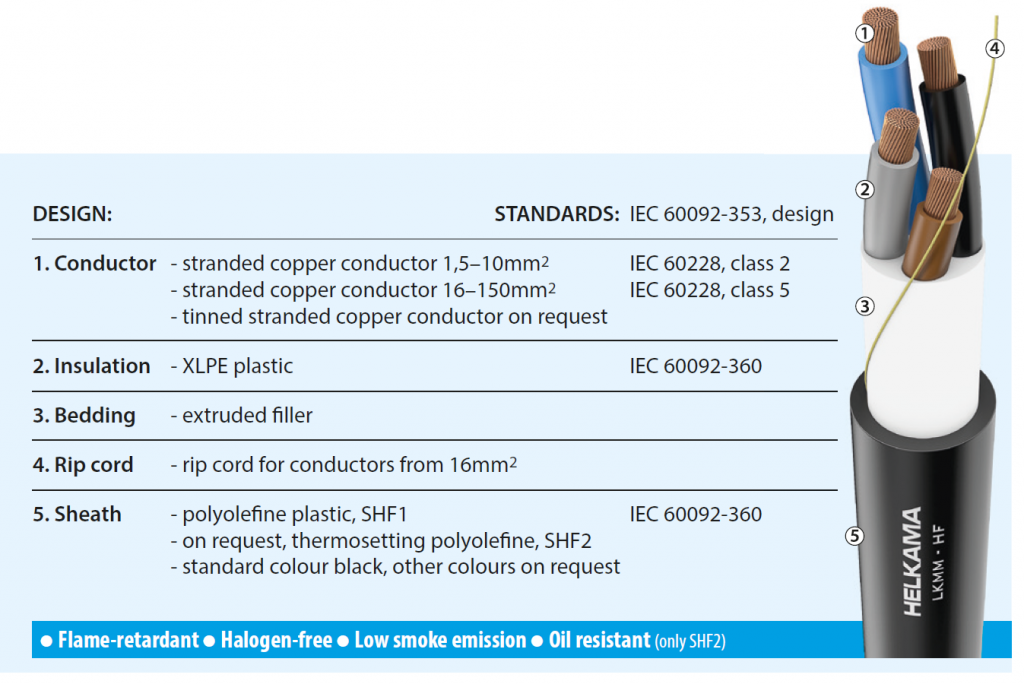

LKMM-HF
Unarmoured power cable with extruded filler 0,6/1kV
Application: For fixed installation in most areas and on open deck in ships and off shore units.
| Main characteristics | |
| Rated voltage | AC 0,6/1kV (1,2kV) DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV) |
| Flame-retardant | IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A |
| Halogen-free | IEC 60754 series |
| Smoke emission | IEC 61034 series |
| Oil resistance (only SHF2) | IEC 60811-404 conditions according to 60092-360/SHF2 |
| Temperature rating: | Maximum conductor temperature + 90 °C Fixed installation -40 °C to +80 °C Minimum recommended installation temperature -15 °C |
| For details see general information section | |
| Part number Normal |
G-type | Number of conductors & cross-section n x mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Current Rating A at +45°C |
Min. bending radius fixed installation mm |
| 27532 | – | 2×1,5 | 9,0 | 125 | 20 | 35 |
| 27534 | – | 2×2,5 | 10,0 | 170 | 26 | 40 |
| 27536 | – | 2×4 | 11,0 | 225 | 34 | 45 |
| 27538 | – | 2×6 | 12,5 | 295 | 44 | 50 |
| 27540 | – | 2×10 | 14,5 | 440 | 61 | 60 |
| 27543 | – | 2×16 Flex | 19,0 | 635 | 80 | 75 |
| 27545 | – | 2×25 Flex | 23,5 | 955 | 105 | 95 |
| 27547 | – | 2×35 Flex | 25,0 | 1290 | 130 | 150 |
| 27549 | – | 2×50 Flex | 29,0 | 1755 | 167 | 175 |
| 27551 | – | 2×70 Flex | 33,5 | 2400 | 204 | 200 |
| 27564 | 27566 | 3×1,5 | 9,5 | 140 | 16 | 35 |
| 27568 | 27570 | 3×2,5 | 10,5 | 190 | 21 | 45 |
| 27572 | 27574 | 3×4 | 12,0 | 260 | 28 | 45 |
| 27576 | 27578 | 3×6 | 13,5 | 360 | 36 | 55 |
| 27580 | 27582 | 3×10 | 15,5 | 530 | 50 | 60 |
| 27585 | 27587 | 3×16 Flex | 20,0 | 765 | 66 | 80 |
| 27589 | 27591 | 3×25 Flex | 24,5 | 1160 | 86 | 100 |
| 27593 | 27595 | 3×35 Flex | 26,5 | 1555 | 107 | 160 |
| 27597 | 27599 | 3×50 Flex | 30,5 | 2130 | 137 | 185 |
| 27601 | 27603 | 3×70 Flex | 36,0 | 2985 | 168 | 215 |
| 27605 | 27607 | 3×95 Flex | 39,5 | 3795 | 199 | 240 |
| 27609 | 27611 | 3×120 Flex | 44,5 | 4775 | 232 | 265 |
| 27613 | 27615 | 3×150 Flex | 51,0 | 6075 | 267 | 305 |
| 27617 | 27619 | 3×185 Flex | 56,0 | 7405 | 300 | 335 |
| 27621 | 27623 | 3×240 Flex | 63,0 | 9795 | 355 | 380 |
| 27628 | 27630 | 4×1,5 | 10,5 | 175 | 16 | 40 |
| 27632 | 27634 | 4×2,5 | 11,5 | 225 | 21 | 45 |
| 27636 | 27638 | 4×4 | 13,0 | 320 | 28 | 50 |
| 27640 | 27642 | 4×6 | 14,5 | 430 | 36 | 60 |
| 27644 | 27646 | 4×10 | 17,5 | 650 | 50 | 70 |
| 27649 | 27651 | 4×16 Flex | 22,5 | 950 | 66 | 90 |
| 27653 | 27655 | 4×25 Flex | 27,0 | 1425 | 86 | 165 |
| 27657 | 27659 | 4×35 Flex | 29,5 | 1910 | 107 | 175 |
| 27661 | 27663 | 4×50 Flex | 34,5 | 2655 | 137 | 205 |
| 27665 | 27667 | 4×70 Flex | 40,0 | 3680 | 168 | 240 |
| 27692 | 27694 | 5×1,5 | 11,5 | 205 | 13 | 45 |
| 27696 | 27698 | 5×2,5 | 12,5 | 270 | 17 | 50 |
| 27700 | 27702 | 5×4 | 14,5 | 360 | 23 | 55 |
| 27704 | 27706 | 5×6 | 16,5 | 515 | 30 | 65 |
| 27708 | 27710 | 5×10 | 19,0 | 770 | 42 | 75 |
| 27713 | 27715 | 5×16 Flex | 24,0 | 1160 | 55 | 95 |
| 27717 | 27719 | 5×25 Flex | 30,0 | 1760 | 71 | 180 |
Other sizes on request.
G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
