LKSM-HF

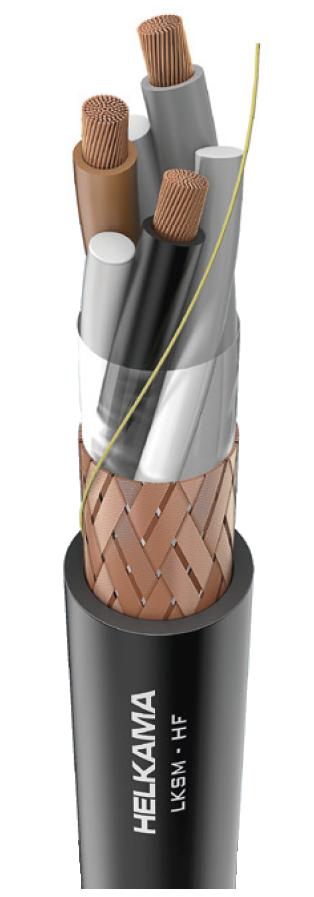

Armoured power and control cable 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units.

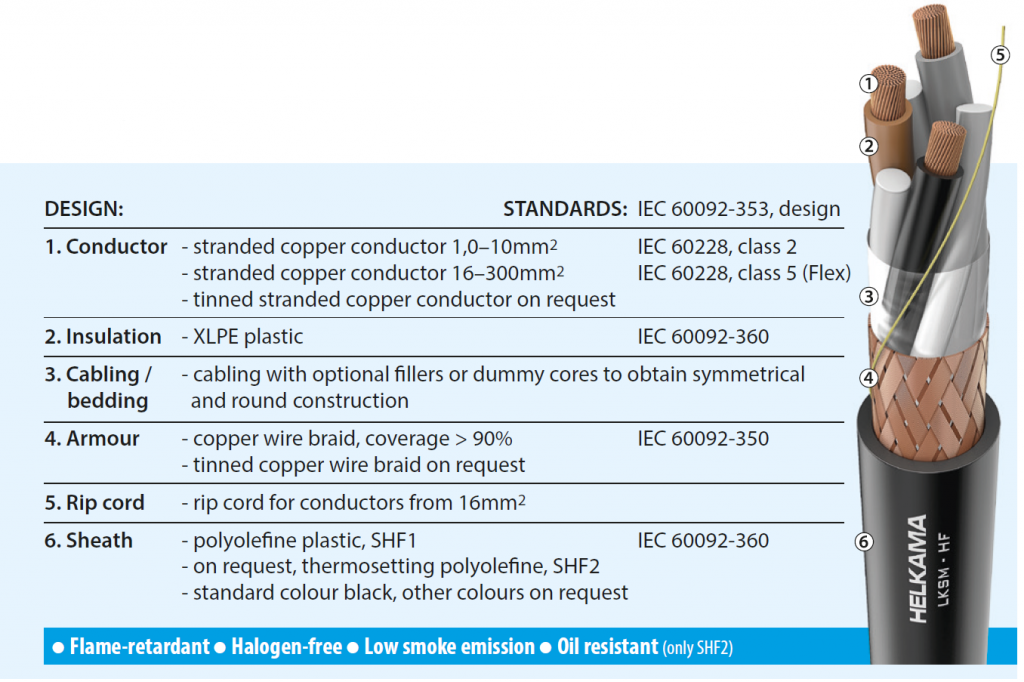

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Cross-section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
25955 28425 1×1,0 3,0 6,0 70 18 40
25736 28426 1×1,5 3,0 6,5 75 23 40
25738 27050 1×2,5 2,5 7,0 85 30 45
25740 27052 1×4 3,1 7,5 110 40 45
25742 27054 1×6 3,1 8,0 130 52 50
25744 27056 1×10 3,6 9,5 190 72 60
26237 27059 1×16 Flex 4,1 10,5 240 94 65
26238 27061 1×25 Flex 4,9 13,0 360 123 80
26239 27063 1×35 Flex 5,5 14,0 455 153 85
26240 27065 1×50 Flex 8,7 16,0 640 196 100
26241 27067 1×70 Flex 10,0 18,5 865 240 115
26242 27069 1×95 Flex 11,5 20,0 1090 284 125
26243 27071 1×120 Flex 12,3 22,5 1360 331 135
26244 27073 1×150 Flex 13,7 25,0 1685 381 155
26245 27075 1×185 Flex 15,2 27,0 2020 429 165
26246 27077 1×240 Flex 18,2 30,5 2655 507 185
26247 27079 1×300 Flex 18,7 34,0 3250 582 205
25956 2×1,0 3,6 9,0 110 15 55
25770 2×1,5 3,8 9,5 130 20 60
25785 2×2,5 4,3 10,5 160 26 65
25801 2×4 5,2 12,0 215 34 75
25803 2×6 5,4 13,0 320 44 80
25805 2×10 8,7 15,5 480 61 95
26254 2×16 Flex 10,0 18,0 635 80 110
26255 2×25 Flex 12,3 23,0 965 105 140
26256 2×35 Flex 14,0 24,5 1230 130 150
26257 2×50 Flex 16,3 28,5 1655 167 175
26258 2×70 Flex 18,7 33,0 2245 204 200
26259 2×95 Flex 21,2 36,5 2890 241 220
25957 3×1,0 3,7 9,5 130 13 60
25772 25773 3×1,5 4,1 10,0 155 16 65
25786 25787 3×2,5 5,2 11,0 200 21 70
25802 25880 3×4 5,3 12,5 265 28 80
25804 25882 3×6 5,8 14,0 375 36 85
25806 25884 3×10 9,3 16,5 575 50 100
26271 26272 3×16 Flex 10,7 19,0 770 66 115
26273 26274 3×25 Flex 13,2 24,5 1185 86 150
26275 26276 3×35 Flex 15,0 26,0 1510 107 160
26277 26278 3×50 Flex 17,5 30,5 2095 137 185
26279 26280 3×70 Flex 20,2 35,5 2860 168 215
26281 26282 3×95 Flex 22,8 39,0 3660 199 235
26283 26284 3×120 Flex 35,1 44,0 4705 232 265
26285 26286 3×150 Flex 39,3 50,0 5885 267 305
26287 26288 3×185 Flex 43,4 55,0 7160 300 335
26295 26296 3×240 Flex 50,7 62,0 9385 355 375
25958 4×1,0 4,1 10,0 150 13 65
25774 25775 4×1,5 4,5 11,0 185 16 70
25788 25789 4×2,5 5,3 12,5 240 21 75
25830 25831 4×4 5,7 13,5 320 28 85
25832 25833 4×6 8,8 15,5 480 36 95
25834 25835 4×10 10,3 18,0 700 50 110
26301 26302 4×16 Flex 11,9 21,5 945 66 130
26303 26304 4×25 Flex 14,8 27,0 1425 86 165
26305 26306 4×35 Flex 16,7 29,0 1850 107 175
26307 26308 4×50 Flex 19,5 34,0 2560 137 205
26309 26310 4×70 Flex 22,6 39,0 3495 168 235
26311 26312 4×95 Flex 35,0 44,0 4615 199 265
26313 26314 4×120 Flex 39,3 49,0 5765 232 295
26315 26316 4×150 Flex 44,0 55,5 7240 267 335
26317 26318 4×185 Flex 48,9 61,5 8810 300 370
25959 5×1,0 4,5 10,5 180 10 65
25776 25777 5×1,5 5,0 12,0 225 13 75
25790 25791 5×2,5 5,6 13,5 290 17 80
26011 26012 5×4 8,6 15,0 420 23 95
26013 26014 5×6 9,7 17,0 580 30 105
26015 26016 5×10 11,5 20,0 850 42 120
26331 26332 5×16 Flex 13,2 23,0 1135 55 140
26333 26334 5×25 Flex 16,3 29,5 1740 71 180
26335 26336 5×35 Flex 18,6 32,0 2295 89 195
26325 26326 5×50 Flex 22,4 37,0 3150 114 225
26327 26328 5×70 Flex 34,4 43,5 4445 139 265
26329 26330 5×95 Flex 39,3 48,5 5755 165 295
25960 7×1,0 4,9 11,5 215 9 75
25961 10×1,0 8,7 15,0 320 8 90
25962 12×1,0 9,0 15,0 350 8 95
25963 14×1,0 9,4 16,0 385 7 100
25964 16×1,0 10,0 17,0 440 7 105
25965 19×1,0 10,6 17,5 485 7 110
25977 24×1,0 12,5 20,5 610 6 125
25978 27×1,0 12,8 21,0 660 6 130
25979 30×1,0 13,3 21,5 710 5 135
25981 37×1,0 14,4 23,5 840 5 145
25778 25779 7×1,5 5,4 13,0 265 12 80
26025 26026 10×1,5 9,6 16,5 400 11 100
25780 25846 12×1,5 10,0 17,0 445 10 105
26027 26028 14×1,5 10,5 18,0 495 10 110
26030 26029 16×1,5 11,1 19,0 550 9 115
25782 25781 19×1,5 11,7 19,5 615 9 120
25828 25829 24×1,5 13,9 23,5 790 8 140
25783 25847 27×1,5 14,1 24,0 855 8 145
26039 30×1,5 14,7 24,5 925 7 150
25784 25848 37×1,5 16,0 26,5 1095 7 160
25792 25793 7×2,5 8,5 15,0 380 16 90
26033 26034 10×2,5 10,8 18,5 530 14 115
25794 25795 12×2,5 11,5 19,0 590 13 115
26035 26036 14×2,5 11,8 20,5 675 13 125
26037 26038 16×2,5 12,5 21,5 755 12 130
25796 25797 19×2,5 13,2 22,5 845 11 135
25798 25799 24×2,5 15,7 26,0 1070 10 160
25768 25769 27×2,5 16,1 27,0 1165 10 165
26040 30×2,5 16,7 27,5 1265 10 170
25849 25850 37×2,5 18,1 30,0 1525 9 185

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
