Scheepskabel

LKSM-SHF2 120°C

DownloadDatasheet PDF LKSM-SHF2 120°C Heat and oil resistant armoured power and control cable 0,6/1kV Application: For fixed installation in most... read more

Beschrijving

Download
Datasheet PDF

LKSM-SHF2 120°C

Heat and oil resistant armoured power and control cable 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships or on oil rigs and various industrial use. Excellent resistance against weathering, ozone, UV-rays, Oil / Diesel oil. Typical Marine, Oil, Gas and Petrochemical applications are for example Ship Engine rooms, power plants and/or other areas where ambient temperature may exceed +80°C, which is the limit for traditional IEC 60092-cables.

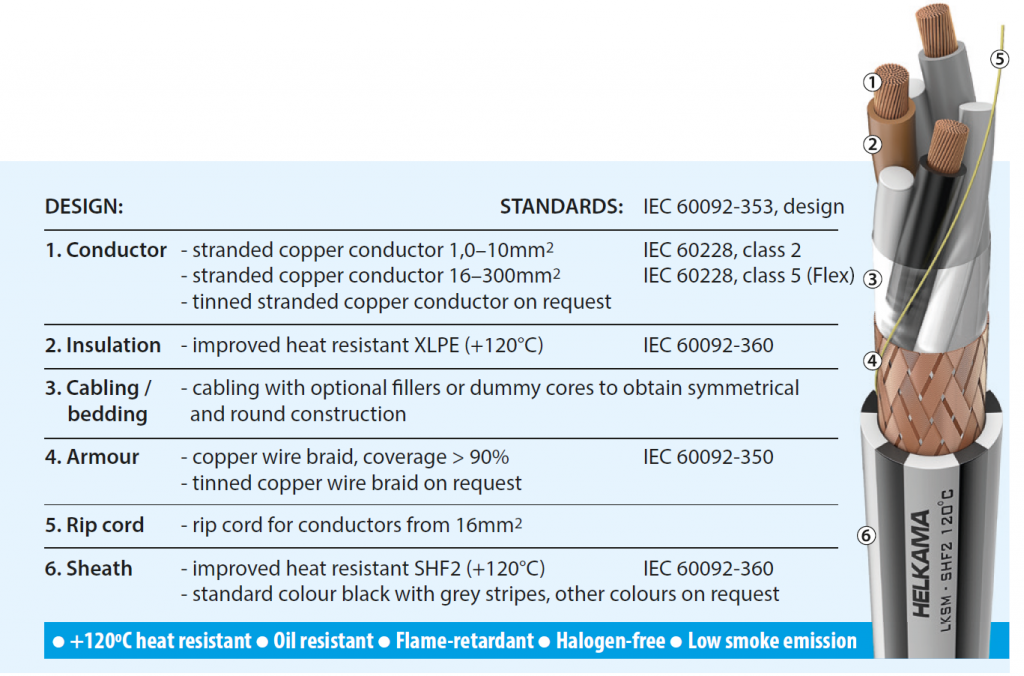

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Oil resistance IEC 60811-404 conditions according to 60092-360
Halogen-free IEC 60754 series
Flame-retardant IEC 60332-1-2 Test for single insulated wire and cable
IEC 60332-3-22 Test for bunched wires and cables, category A
Smoke emission IEC 61034 series
Temperature rating: Fixed installation: -40 ºC to +120 ºC
Occasionally moved: -20 ºC to +120 ºC
Max. conductor temperature: +120 ºC
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Cross-section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
4125955 4128425 1×1,0 3,0 6,0 70 18 40
4125736 4128426 1×1,5 3,0 6,5 75 23 40
4125738 4127050 1×2,5 2,5 7,0 85 30 45
4125740 4127052 1×4 3,1 7,5 110 40 45
4125742 4127054 1×6 3,1 8,0 130 52 50
4125744 4127056 1×10 3,6 9,5 190 72 60
4126237 4127059 1×16 Flex 4,1 10,5 240 94 65
4126238 4127061 1×25 Flex 4,9 13,0 360 123 80
4126239 4127063 1×35 Flex 5,5 14,0 455 153 85
4126240 4127065 1×50 Flex 8,7 16,0 640 196 100
4126241 4127067 1×70 Flex 10,0 18,5 865 240 115
4126242 4127069 1×95 Flex 11,5 20,0 1090 284 125
4126243 4127071 1×120 Flex 12,3 22,5 1360 331 135
4126244 4127073 1×150 Flex 13,7 25,0 1685 381 155
4126245 4127075 1×185 Flex 15,2 27,0 2020 429 165
4126246 4127077 1×240 Flex 18,2 30,5 2655 507 185
4126247 4127079 1×300 Flex 18,7 34,0 3250 582 205
4125956 2×1,0 3,6 9,0 110 15 55
4125770 2×1,5 3,8 9,5 130 20 60
4125785 2×2,5 4,3 10,5 160 26 65
4125801 2×4 5,2 12,0 215 34 75
4125803 2×6 5,4 13,0 320 44 80
4125805 2×10 8,7 15,5 480 61 95
4126254 2×16 Flex 10,0 18,0 615 80 110
4126255 2×25 Flex 12,3 23,0 940 105 140
4126256 2×35 Flex 14,0 24,5 1175 130 150
4126257 2×50 Flex 16,3 28,5 1590 167 175
4126258 2×70 Flex 18,7 33,0 2170 204 200
4126259 2×95 Flex 21,2 36,5 2750 241 220
4125957 3×1,0 3,7 9,5 130 13 60
4125772 4125773 3×1,5 4,1 10,0 155 16 65
4125786 4125787 3×2,5 5,2 11,0 200 21 70
4125802 4125880 3×4 5,3 12,5 265 28 80
4125804 4125882 3×6 5,8 14,0 375 36 85
4125806 4125884 3×10 9,3 16,5 575 50 100
4126271 4126272 3×16 Flex 10,7 19,0 770 66 115
4126273 4126274 3×25 Flex 13,2 24,5 1185 86 150
4126275 4126276 3×35 Flex 15,0 26,0 1510 107 160
4126277 4126278 3×50 Flex 17,5 30,5 2095 137 185
4126279 4126280 3×70 Flex 20,2 35,5 2860 168 215
4126281 4126282 3×95 Flex 22,8 39,0 3660 199 235
4126283 4126284 3×120 Flex 35,1 44,0 4705 232 265
4126285 4126286 3×150 Flex 39,3 50,0 5885 267 305
4126287 4126288 3×185 Flex 43,4 55,0 7160 300 335
4126289 4126290 3×240 Flex 50,7 62,0 9385 355 375
4125958 4×1,0 4,1 10,0 150 13 65
4125774 4125775 4×1,5 4,5 11,0 185 16 70
4125788 4125789 4×2,5 5,3 12,5 240 21 75
4125830 4125831 4×4 5,7 13,5 320 28 85
4125832 4125833 4×6 8,8 15,5 480 36 95
4125834 4125835 4×10 10,3 18,0 700 50 110
4126301 4126302 4×16 Flex 11,9 21,5 940 66 130
4126303 4126304 4×25 Flex 14,8 27,0 1425 86 165
4126305 4126306 4×35 Flex 16,7 29,0 1850 107 175
4126307 4126308 4×50 Flex 19,5 34,0 2550 137 205
4126309 4126310 4×70 Flex 22,6 39,0 3495 168 235
4126311 4126312 4×95 Flex 35,0 44,0 4615 199 265
4126313 4126314 4×120 Flex 39,3 49,0 5765 232 295
4126315 4126316 4×150 Flex 44,0 55,5 7240 267 335
4125959 5×1,0 4,5 10,5 180 10 65
4125776 4125777 5×1,5 5,0 12,0 225 13 75
4125790 4125791 5×2,5 5,6 13,5 290 17 80
4126011 4126012 5×4 8,6 15,0 420 23 95
4126013 4126014 5×6 9,7 17,0 580 30 105
4126015 4126016 5×10 11,5 20,0 850 42 120
4126331 4126332 5×16 Flex 13,2 23,0 1135 55 140
4126333 4126334 5×25 Flex 16,3 29,5 1740 71 180
4125960 7×1,0 4,9 11,5 215 9 75
4125961 10×1,0 8,7 15,0 320 8 90
4125962 12×1,0 9,0 15,0 350 8 95
4125963 14×1,0 9,4 16,0 385 7 100
4125964 16×1,0 10,0 17,0 440 7 105
4125965 19×1,0 10,6 17,5 485 7 110
4125977 24×1,0 12,5 20,5 610 6 125
4125978 27×1,0 12,8 21,0 660 6 130
4125981 37×1,0 14,4 23,5 840 5 145
4125778 4125779 7×1,5 5,4 13,0 265 12 80
4126025 4126026 10×1,5 9,6 16,5 400 11 100
4125780 4125846 12×1,5 10,0 17,0 445 10 105
4126027 4126028 14×1,5 10,5 18,0 495 10 110
4126030 4126029 16×1,5 11,1 19,0 550 9 115
4125782 4125781 19×1,5 11,7 19,5 615 9 120
4125828 4125829 24×1,5 13,9 23,5 790 8 140
4125783 4125847 27×1,5 14,1 24,0 855 8 145
4125784 4125848 37×1,5 16,0 26,5 1095 7 160
4125792 4125793 7×2,5 8,5 15,0 380 16 90
4126033 4126034 10×2,5 10,8 18,5 530 14 115
4125794 4125795 12×2,5 11,5 19,0 590 13 115
4126035 4126036 14×2,5 11,8 20,5 675 13 125
4126037 4126038 16×2,5 12,5 21,5 755 12 130
4125796 4125797 19×2,5 13,2 22,5 845 11 135
4125798 4125799 24×2,5 15,7 26,0 1070 10 160
4125768 4125769 27×2,5 16,1 27,0 1165 10 165

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5
