Scheepskabel

LKAM-HF

DownloadDatasheet PDF LKAM-HF Screened power and control cable 0,6/1kV Application: For fi xed installation in most areas and on open... read more

Beschrijving

Download
Datasheet PDF

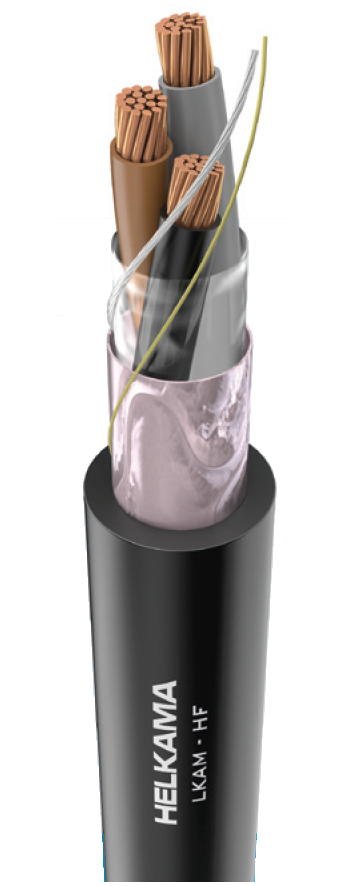

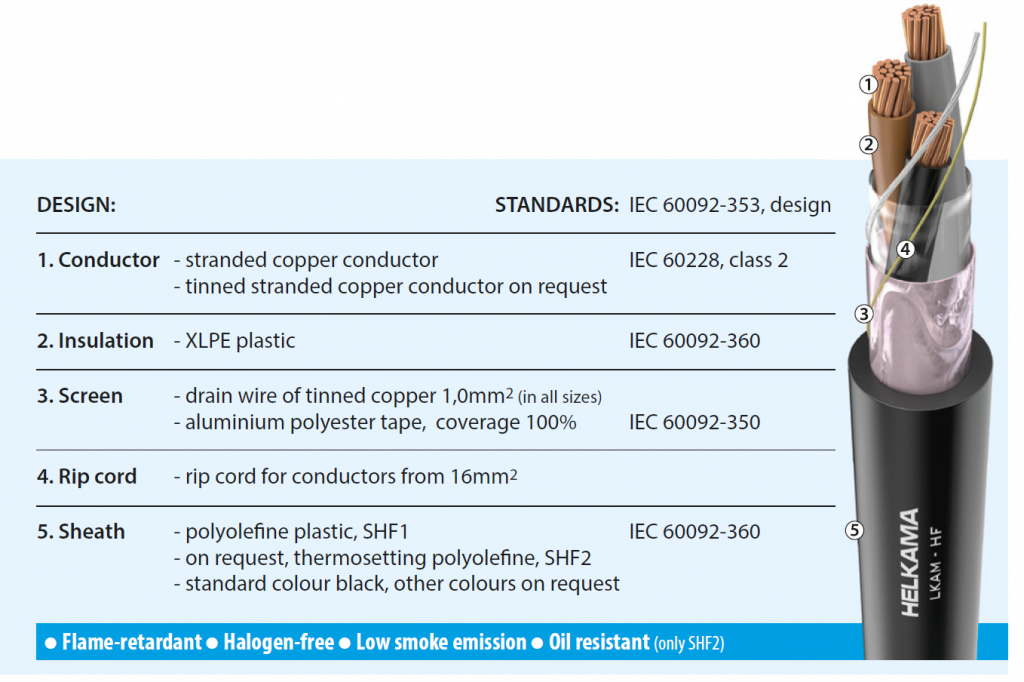

LKAM-HF

Screened power and control cable 0,6/1kV

Application: For fi xed installation in most areas and on open deck in ships and off shore units, especially when lightweight and screened cables are needed.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
27102 2×1,5 9,0 100 20 55
27106 27107 3×1,5 9,5 125 16 55
27110 27111 4×1,5 10,0 145 16 60
27114 27115 5×1,5 11,0 175 13 65
27118 27119 7×1,5 12,0 220 12 70
27140 27141 10×1,5 15,5 310 11 90
27122 27123 12×1,5 16,0 350 10 95
27144 27145 14×1,5 16,5 395 10 100
27148 27149 16×1,5 17,5 450 9 105
27126 27127 19×1,5 18,5 510 9 110
27130 27131 24×1,5 22,0 650 8 130
27134 27135 27×1,5 22,5 715 8 135
27155 27156 32×1,5 23,5 825 7 140
27136 27137 37×1,5 25,0 935 7 150
27104 2×2,5 9,5 125 26 60
27108 27109 3×2,5 10,5 160 21 60
27112 27113 4×2,5 11,0 195 21 65
27116 27117 5×2,5 12,5 240 17 75
27120 27121 7×2,5 13,5 300 16 80
27142 27143 10×2,5 17,5 435 14 105
27124 27125 12×2,5 18,0 495 13 105
27146 27147 14×2,5 18,5 560 13 110
27150 27151 16×2,5 19,5 630 12 120
27128 27129 19×2,5 21,0 740 11 125
27132 27133 24×2,5 25,0 935 10 150
27138 27139 27×2,5 25,5 1025 10 150
27157 27158 32×2,5 26,5 1195 9 160
27152 27153 37×2,5 28,5 1355 9 170

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
