LKAM-FRHF

DownloadDatasheet PDF LKAM-FRHF Fire-resistant screened power and control cable 0,6/1kV Application: For fixed installation in most areas and on open... read more

Beschrijving

Download
Datasheet PDF

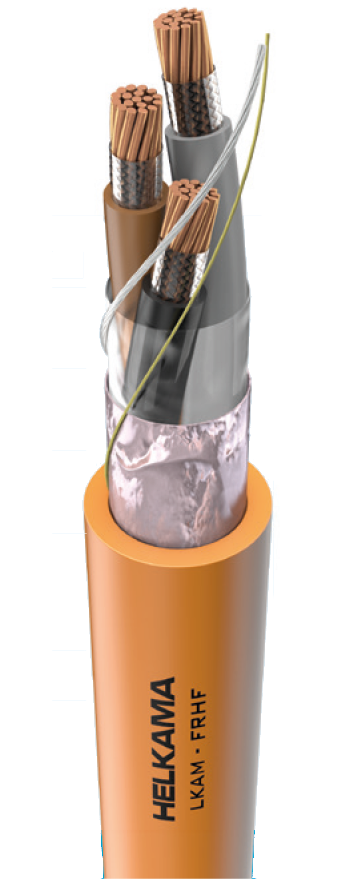

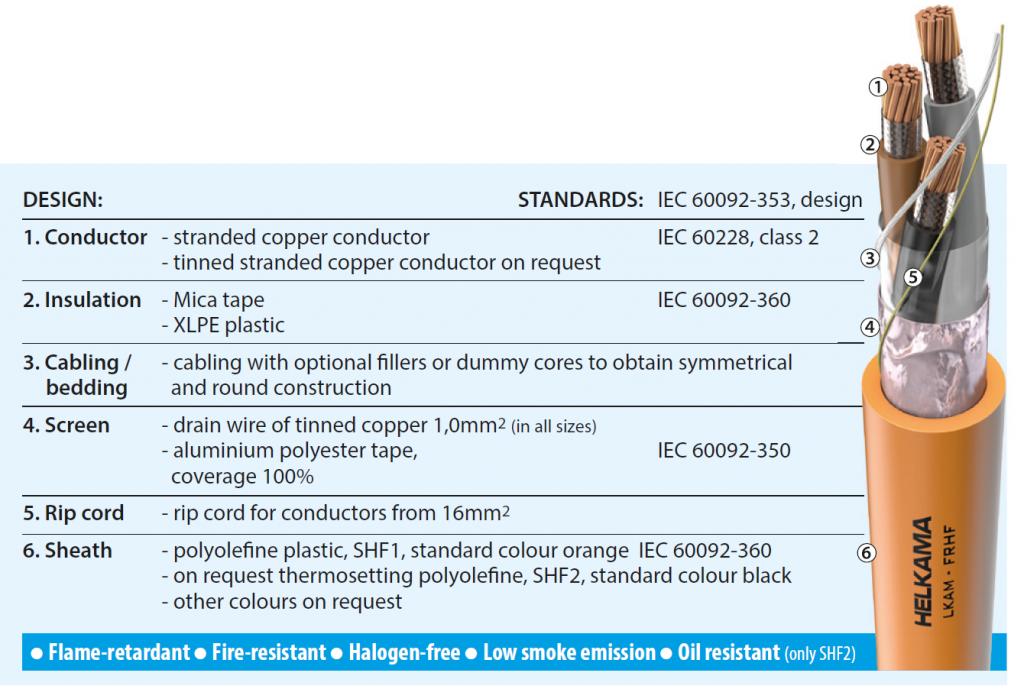

LKAM-FRHF

Fire-resistant screened power and control cable 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units, especially when lightweight cables are needed. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant IEC 60331-1 or IEC 60331-2
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15°C
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
28741 2×1,5 9,5 110 20 60
28743 28744 3×1,5 10,0 135 16 60
28747 28748 4×1,5 11,0 165 16 65
28751 28752 5×1,5 12,0 200 13 70
28755 28756 7×1,5 13,5 250 12 80
28759 28760 10×1,5 17,0 350 11 100
28763 28764 12×1,5 17,5 400 10 105
28767 28768 14×1,5 18,5 450 10 110
28771 28772 16×1,5 19,5 515 9 115
28775 28776 19×1,5 20,5 580 9 125
28779 28780 24×1,5 24,5 745 8 145
28783 28784 27×1,5 25,0 815 8 150
28787 28788 37×1,5 28,0 1070 7 170
28742 2×2,5 10,5 140 26 65
28745 28746 3×2,5 11,0 175 21 65
28749 28750 4×2,5 12,0 215 21 75
28753 28754 5×2,5 13,5 270 17 80
28757 28758 7×2,5 14,5 335 16 90
28761 28762 10×2,5 19,0 485 14 115
28765 28766 12×2,5 19,5 555 13 115
28769 28770 14×2,5 20,5 630 13 125
28773 28774 16×2,5 21,5 705 12 130
28777 28778 19×2,5 23,0 825 11 140
28781 28782 24×2,5 27,0 1045 10 165
28785 28786 27×2,5 28,0 1145 10 165
28789 28790 37×2,5 31,5 1515 9 190

Other sizes on request.

G-type is with yellow/green earth conductor
and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
