Scheepskabel

LKSM-VFD

DownloadDatasheet PDF LKSM-VFD Armoured power and control cable with improved EMC screening 1,8/3kV Application: For fixed installation in most areas... read more

Beschrijving

Download
Datasheet PDF

LKSM-VFD

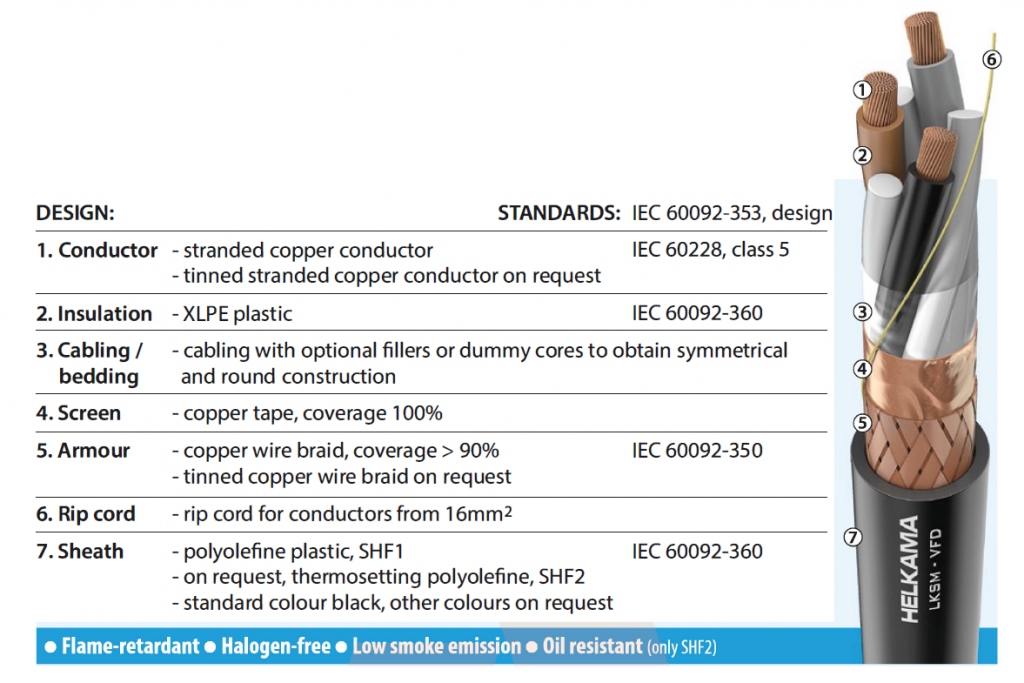

Armoured power and control cable with improved EMC screening 1,8/3kV

Application: For fixed installation in most areas and on open deck in ships and offshore units. Design to meet requirements for Variable Frequency Drivers (VFD). Suitable for voltage peaks up to 3kV.

Main characteristics
Rated voltage 1,8/3kV (3,6kV)
Flame-retardant IEC60332-1-2 -test for single insulated wire and cable
IEC60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC60754 series
Smoke emission IEC61034 series
Oil resistance (only SHF2) IEC60811-404 conditions according to 60092-360/SHF2
Transfer impedance IEC61196-1 (typical value 26dB over 1mO/m at 100MHz [20mO/m])
Temperature rating: Maximum conductor temperature+ 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number Number of conductors & cross-section
nxmm2
Cross- section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at+45°C
Min. bending radius fixed installation
mm
Note
26918 1×10 4,7 12,5 280 71 75 X
26920 1×16 5,6 14,5 355 94 85 X
26922 1×25 8,5 16,0 495 123 95 X
26924 1×35 9,4 17,0 620 153 100 X
26926 1×50 10,4 18,5 780 196 110 X
26928 1×70 11,4 20,5 985 240 120 X
26930 1×95 12,6 22,5 1245 284 135 X
26932 1×120 13,7 24,0 1505 331 145 X
26934 1×150 14,8 26,0 1790 381 155 X
26936 1×185 15,8 27,5 2110 429 165 X
26938 1×240 17,7 31,0 2730 507 185 X
26940 1×300 19,0 33,5 3310 582 200 X
26892 3×10 13,2 23,5 1030 50 140 1)
26871 3×16 16,6 27,0 1325 66 160 1)
26873 3×25 17,0 30,0 1735 86 180 1)
26875 3×35 18,8 32,0 2155 107 190 1)
26877 3×50 29,1 36,5 2880 137 220 1)
26879 3×70 35,3 40,0 3760 168 240 1)
26881 3×95 35,7 44,0 4630 199 265 X
26883 3×120 38,8 48,0 5615 232 285 X
26885 3×150 42,2 53,0 6920 267 315 X
26887 3×185 45,7 56,0 8110 300 335 X
26889 3×240 50,5 62,0 10425 355 375 X
26893 3×95+3×16 35,7 44,0 4495 199 265 2)
26895 3×120+3×25 38,8 48,0 5580 232 285 2)
26897 3×150+3×25 42,2 53,0 6635 267 315 2)

NOTE!

PE-rules PE rules, for cables over 16mm2 the PE-conductor have to be half of main conductor and min.16mm2
This according to IEC 60092-352, Electrical installations in ships
-Choice and installation of electrical cables)
x = Protective earth (PE) rules are NOT fulfilled.
1) = Single Armour can be used as Protective Earth. PE-rules are fulfilled.
2) = Three additional protective earth (PE) conductors. Protective earth (PE) rules are fulfilled.
3) = Double Armour can be used as Protective Earth. PE-rules are fulfilled.

Information given are indicative and don’t involve any warranty on results.
We keep the right to change this datasheet.

Other sizes on request.

Part number for oil resistant SHF2 cable:
4 + code from above table-+ 4xxxxx
