Scheepskabel

LKM-FRHF+WSR/WJR

DownloadDatasheet PDF LKM-FRHF+WSR/WJR Fire Resistant + Water Spray Resistant and/or Water Jet Resistant, unarmoured power and control cable 0,6/1kV Application:... read more

Beschrijving

Download
Datasheet PDF

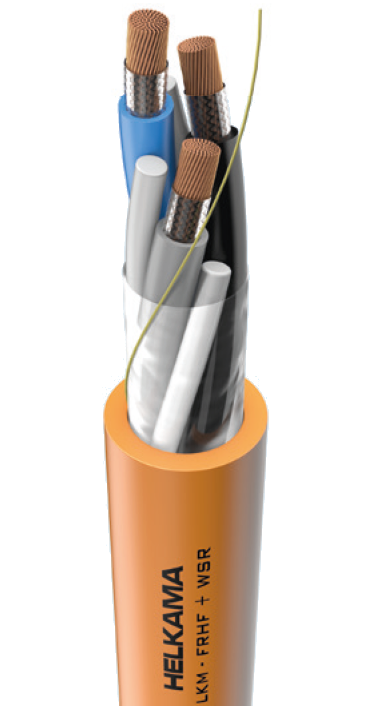

LKM-FRHF+WSR/WJR

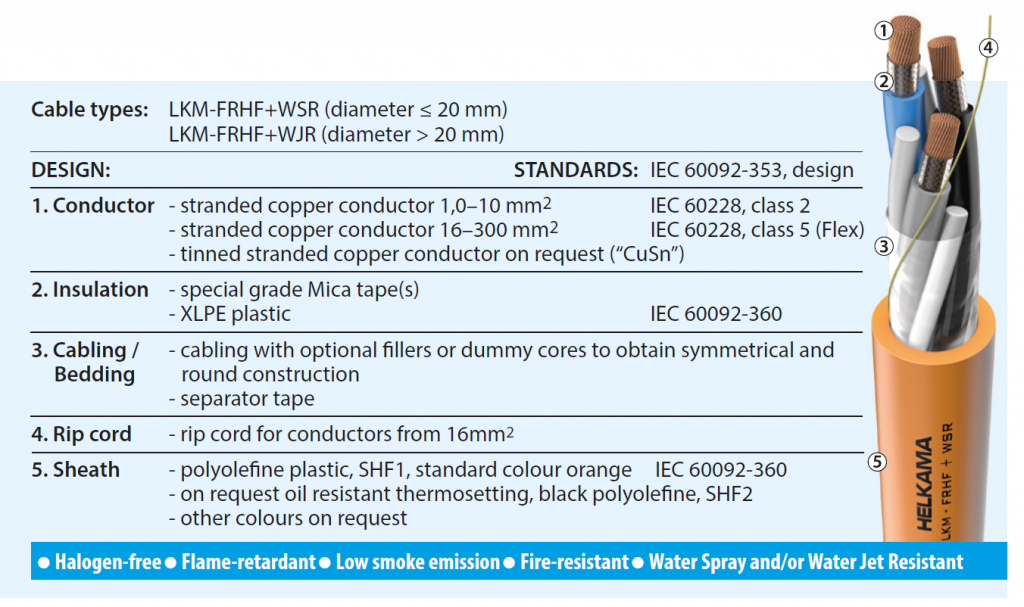

Fire Resistant + Water Spray Resistant and/or Water Jet Resistant, unarmoured power and control cable 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units. Especially intended to ensure the availability of all critical transportation-, comfort- and safety systems, i.e. to meet the concepts of; Orderly Evacuation (3 hours burning time) and Safe Return to Port (Fire test with simultaneous Water Spray / Water Jet + mechanical shocks) to simulate the fi refi ghting conditions.
If the cable is exposed to direct sunlight, we recommend cable with black outer sheath or a protective covering.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Halogen-free IEC 60754 series
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Smoke emission IEC 61034 series
Fire- and Water Spray Resistant IEC 60331-2 (180 min test) + EN 50200:2015 Annex E (diameter ≤ 20 mm)
Fire- and Water Jet Resistant IEC 60331-1 (180 min test) + BS 8491:2008 (diameter > 20 mm)
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Recommended minimum bending radius (fixed installation): 4 x outer diameter of the cable
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section

Note! R=6x D (See IEC 60092-352)

Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
628275 1×1,0 5,5 40 18 35
628100 1×1,5 6,0 50 23 35
628102 1×2,5 6,5 60 30 40
628104 1×4 7,0 80 40 40
628106 1×6 7,5 105 52 45
628108 1×10 8,5 155 72 50
629326 1×16 Flex 9,5 210 94 60
629327 1×25 Flex 12,0 320 123 70
629328 1×35 Flex 13,0 415 153 75
629329 1×50 Flex 15,0 570 196 90
629330 1×70 Flex 17,0 790 240 100
629331 1×95 Flex 18,5 1010 284 110
629332 1×120 Flex 20,5 1270 331 125
629333 1×150 Flex 23,5 1600 381 140
629334 1×185 Flex 26,0 1930 429 155
629335 1×240 Flex 29,0 2530 507 175
629336 1×300 Flex 32,0 3145 582 195
628276 2×1,0 8,5 105 15 50
628132 2×1,5 9,5 125 20 55
628134 2×2,5 11,0 160 26 65
628136 2×4 12,0 220 34 70
628138 2×6 13,0 320 44 80
628140 2×10 15,5 470 61 95
629343 2×16 Flex 18,0 625 80 105
629344 2×25 Flex 22,0 970 105 130
629345 2×35 Flex 24,0 1240 130 145
629346 2×50 Flex 27,5 1690 167 165
629347 2×70 Flex 32,0 2345 204 190
629348 2×95 Flex 35,5 3010 241 215
628278 628279 3×1,0 9,5 100 13 55
628162 628163 3×1,5 10,0 125 16 60
628164 628165 3×2,5 11,5 170 21 70
628166 628167 3×4 12,5 230 28 75
628168 628169 3×6 14,0 350 36 85
628170 628171 3×10 16,5 510 50 100
629366 629367 3×16 Flex 19,0 770 66 115
629368 629369 3×25 Flex 23,5 1170 86 140
629370 629371 3×35 Flex 25,5 1520 107 155
629372 629373 3×50 Flex 30,0 2115 137 180
629374 629375 3×70 Flex 34,5 2925 168 205
629376 629377 3×95 Flex 38,0 3755 199 230
629378 629379 3×120 Flex 43,0 4740 232 255
629380 629381 3×150 Flex 48,5 5950 267 290
629382 629383 3×185 Flex 54,0 7265 300 325
629384 629385 3×240 Flex 60,5 9565 355 365
628280 628281 4×1,0 10,0 125 13 60
628182 628183 4×1,5 11,5 165 16 70
628184 628185 4×2,5 12,5 210 21 75
628186 628187 4×4 14,0 295 28 85
628188 628189 4×6 15,5 430 36 95
628190 628191 4×10 18,5 640 50 110
629400 629401 4×16 Flex 21,0 940 66 125
629402 629403 4×25 Flex 26,0 1445 86 155
629404 629405 4×35 Flex 28,5 1880 107 170
629406 629407 4×50 Flex 33,5 2640 137 200
629408 629409 4×70 Flex 38,5 3645 168 230
629410 629411 4×95 Flex 43,0 4705 199 255
628282 628283 5×1,0 11,5 165 10 70
628212 628213 5×1,5 12,5 205 13 75
628214 628215 5×2,5 13,5 265 17 80
628501 628502 5×4 15,5 380 23 90
628503 628504 5×6 17,0 545 30 105
628505 628506 5×10 20,0 805 42 120
629434 629435 5×16 Flex 23,0 1120 55 140
629436 629437 5×25 Flex 29,0 1740 71 175
629438 629439 5×35 Flex 31,5 2270 89 190
629440 629441 5×50 Flex 37,0 3190 114 220
629442 629443 5×70 Flex 43,0 4455 139 255
628284 628285 7×1,0 12,5 200 9 75
628286 628287 10×1,0 16,0 285 8 95
628288 628289 12×1,0 16,5 325 8 100
628290 628291 14×1,0 17,0 365 7 105
628292 628293 16×1,0 18,5 425 7 110
628294 628295 19×1,0 19,5 480 7 115
628296 628297 24×1,0 22,5 605 6 135
628298 628299 27×1,0 23,5 665 6 140
628563 30×1,0 24,0 725 6 145
628300 628301 37×1,0 26,5 890 5 160
628216 628217 7×1,5 13,5 250 12 80
628240 628241 10×1,5 17,5 365 11 105
628220 628221 12×1,5 18,5 410 10 110
628244 628245 14×1,5 19,0 465 10 115
628248 628249 16×1,5 20,0 535 9 120
628224 628225 19×1,5 21,5 610 9 130
628228 628229 24×1,5 25,5 785 8 155
628232 628233 27×1,5 26,0 860 8 155
30×1,5 27,0 940 7 165
628234 628235 37×1,5 29,5 1140 7 175
628218 628219 7×2,5 15,0 335 16 90
628242 628243 10×2,5 19,5 490 14 115
628222 628223 12×2,5 20,0 550 13 120
628246 628247 14×2,5 21,5 635 13 130
628250 628251 16×2,5 22,5 725 12 135
628226 628227 19×2,5 24,0 820 11 145
628230 628231 24×2,5 28,5 1070 10 170
628236 628237 27×2,5 29,0 1175 10 175
30×2,5 30,0 1290 10 180
628238 628239 37×2,5 33,0 1565 9 195

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
