Scheepskabel

LKM-FRHF

DownloadDatasheet PDF LKM-FRHF Fire-resistant unarmoured power and control cable 0,6/1kV Application: For fixed installation in most areas and on open... read more

Beschrijving

Download
Datasheet PDF

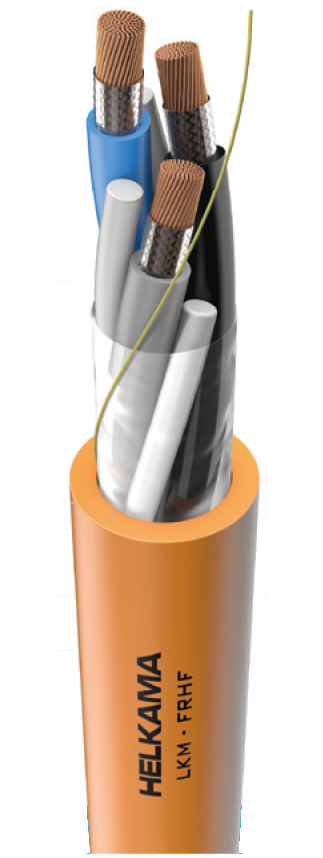

LKM-FRHF

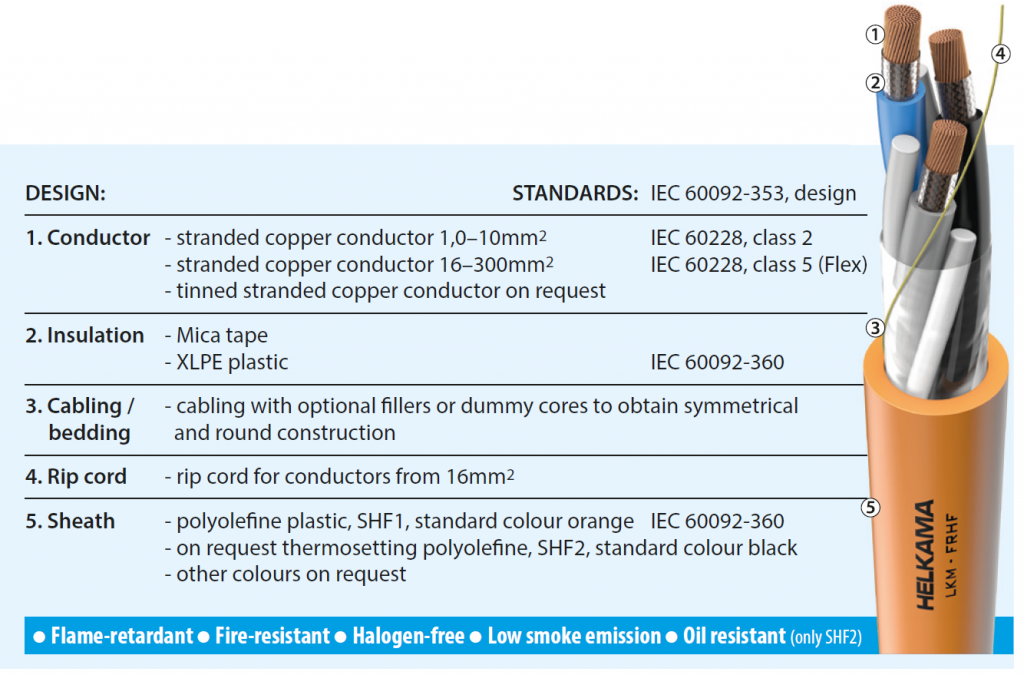

Fire-resistant unarmoured power and control cable 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant IEC 60331-1 or IEC 60331-2
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
28275 1×1,0 5,5 40 18 30
28100 1×1,5 5,5 45 23 35
28102 1×2,5 6,0 60 30 35
28104 1×4 6,5 80 40 40
28106 1×6 7,5 105 52 45
28108 1×10 8,5 150 72 50
29326 1×16 Flex 9,5 200 94 40
29327 1×25 Flex 11,5 305 123 50
29328 1×35 Flex 12,5 400 153 55
29329 1×50 Flex 14,5 555 196 60
29330 1×70 Flex 16,5 765 240 70
29331 1×95 Flex 18,5 985 284 75
29332 1×120 Flex 20,5 1235 331 85
29333 1×150 Flex 23,5 1555 381 95
29334 1×185 Flex 25,5 1880 429 155
29335 1×240 Flex 28,5 2495 507 175
29336 1×300 Flex 32,0 3075 582 195
28276 2×1,0 8,5 75 15 50
28132 2×1,5 9,0 90 20 55
28134 2×2,5 10,5 125 26 60
28136 2×4 11,5 170 34 70
28138 2×6 12,5 260 44 75
28140 2×10 15,0 385 61 90
29343 2×16 Flex 17,5 545 80 70
29344 2×25 Flex 21,5 825 105 90
29345 2×35 Flex 23,5 1090 130 95
29346 2×50 Flex 27,5 1495 167 165
29347 2×70 Flex 31,5 2050 204 190
29348 2×95 Flex 35,5 2705 241 215
28278 28279 3×1,0 8,5 90 13 50
28162 28163 3×1,5 9,5 115 16 60
28164 28165 3×2,5 11,0 160 21 65
28166 28167 3×4 12,0 220 28 75
28168 28169 3×6 13,5 330 36 80
28170 28171 3×10 16,0 490 50 95
29366 29367 3×16 Flex 18,5 690 66 75
29368 29369 3×25 Flex 23,0 1060 86 95
29370 29371 3×35 Flex 25,0 1380 107 155
29372 29373 3×50 Flex 29,5 1930 137 180
29374 29375 3×70 Flex 34,0 2695 168 205
29376 29377 3×95 Flex 38,0 3475 199 230
29378 29379 3×120 Flex 42,5 4405 232 255
29380 29381 3×150 Flex 48,5 5525 267 290
29382 29383 3×185 Flex 53,5 6775 300 325
29384 29385 3×240 Flex 60,5 8935 355 365
28280 28281 4×1,0 9,5 115 13 55
28182 28183 4×1,5 11,0 150 16 65
28184 28185 4×2,5 12,0 200 21 70
28186 28187 4×4 13,5 280 28 80
28188 28189 4×6 15,0 410 36 90
28190 28191 4×10 17,5 620 50 105
29400 29401 4×16 Flex 20,5 870 66 85
29402 29403 4×25 Flex 25,5 1345 86 155
29404 29405 4×35 Flex 28,0 1770 107 170
29406 29407 4×50 Flex 33,0 2485 137 200
29408 29409 4×70 Flex 38,0 3425 168 230
29410 29411 4×95 Flex 42,5 4455 199 255
28282 28283 5×1,0 11,0 150 10 65
28212 28213 5×1,5 12,0 190 13 70
28214 28215 5×2,5 13,0 250 17 80
28501 28502 5×4 15,0 350 23 90
28503 28504 5×6 16,5 520 30 100
28505 28506 5×10 19,5 765 42 115
29434 29435 5×16 Flex 22,5 1065 55 95
29436 29437 5×25 Flex 28,5 1670 71 175
29438 29439 5×35 Flex 31,0 2210 89 185
29440 29441 5×50 Flex 36,5 3080 114 220
29442 29443 5×70 Flex 42,5 4305 139 255
28284 28285 7×1,0 11,5 180 9 70
28286 28287 10×1,0 15,0 265 8 90
28288 28289 12×1,0 15,5 290 8 90
28290 28291 14×1,0 16,0 330 7 95
28292 28293 16×1,0 17,0 380 7 105
28294 28295 19×1,0 18,0 430 7 110
28296 28297 24×1,0 21,5 545 6 130
28298 28299 27×1,0 22,0 600 6 130
28300 28301 37×1,0 24,5 800 5 150
28216 28217 7×1,5 13,0 230 12 75
28240 28241 10×1,5 16,5 330 11 100
28220 28221 12×1,5 17,5 380 10 105
28244 28245 14×1,5 18,0 430 10 110
28248 28249 16×1,5 19,0 485 9 115
28224 28225 19×1,5 20,5 565 9 120
28228 28229 24×1,5 24,0 725 8 145
28232 28233 27×1,5 24,5 795 8 150
28234 28235 37×1,5 28,0 1050 7 165
28218 28219 7×2,5 14,5 315 16 85
28242 28243 10×2,5 18,5 450 14 110
28222 28223 12×2,5 19,0 515 13 115
28246 28247 14×2,5 20,5 595 13 120
28250 28251 16×2,5 21,5 670 12 130
28226 28227 19×2,5 22,5 770 11 135
28230 28231 24×2,5 27,0 1000 10 160
28236 28237 27×2,5 27,5 1100 10 165
28238 28239 37×2,5 31,0 1460 9 185

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
