DownloadDatasheet PDF LKEM-HF Switchboard wire 0,6/1kV Application: For fixed wiring in switchboards, control panels and other enclosures Main characteristics Rated... read more

Beschrijving

Download
Datasheet PDF

LKEM-HF

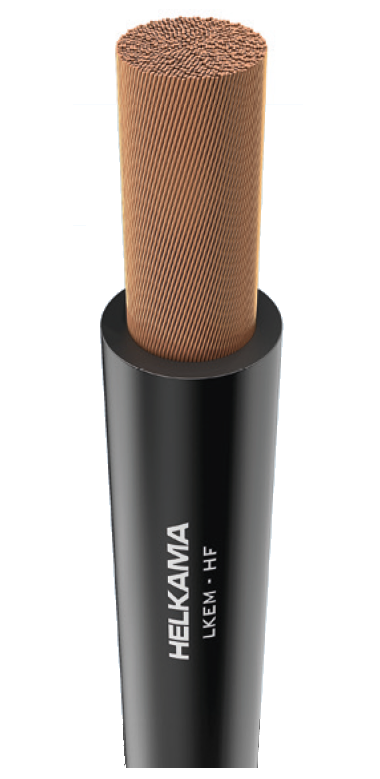

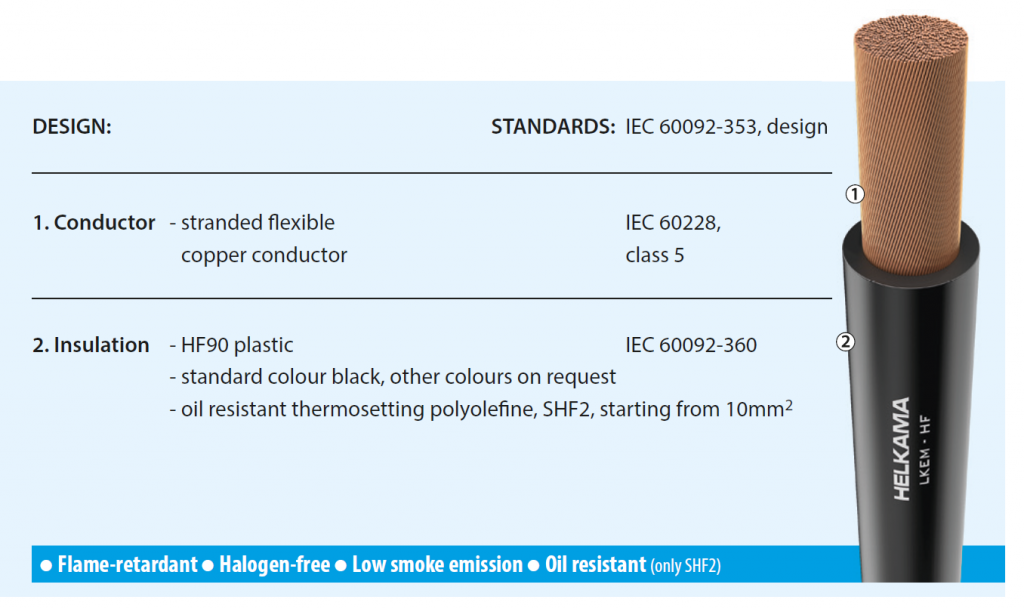

Switchboard wire 0,6/1kV

Application: For fixed wiring in switchboards, control panels and other enclosures

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number
Normal
Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
25117* 1×0,5 2,3 10 11 10
25120 1×0,75 2,7 14 14 15
25121 1×1,0 2,8 17 17 15
25122 1×1,5 3,1 21 22 15
25124 1×2,5 3,6 32 30 15
25125 1×4 4,1 45 39 20
25126 1×6 4,7 63 50 20
25128 1×10 5,7 103 71 25
25130 1×16 6,7 153 94 30
25132 1×25 8,6 241 123 35
25134 1×35 9,4 329 153 40
25136 1×50 11,3 467 196 50
25138 1×70 13,2 661 240 55
25165 1×95 14,8 868 284 60
25166 1×120 16,8 1103 331 70
25279 1×150 19,4 1396 381 80
25281 1×185 21,3 1711 429 90
25283 1×240 24,4 2303 507 100
25285 1×300 27,4 2853 582 110

* Rated voltage 300/500V

Other sizes on request.

Available in colours:
blue, dark blue, black, brown, red, yellow, green, yellow/green, grey, orange, violet and white Other colours on request

Delivery lengths:
0,5 mm2, 0,75 mm2, 1 mm2, 1,5 mm2 and 2,5 mm2 available in 200 m boxes or 500 m drums 4 mm2 available in 100 m boxes or 500 m drums
6 mm2 available in 100 m coils or 500 m drums
