LKMSM-HF

Armoured power cable with extruded filler 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Cross-section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
27232 2×1,5 4,9 11,5 190 20 70
27234 2×2,5 5,4 12,5 225 26 75
27236 2×4 6,0 14,0 285 34 85
27238 2×6 9,2 15,5 415 44 90
27240 2×10 10,7 17,5 565 61 105
27243 2×16 Flex 12,6 20,5 735 80 120
27245 2×25 Flex 15,6 24,5 1070 105 150
27247 2×35 Flex 16,8 26,5 1350 130 160
27249 2×50 Flex 19,6 30,0 1800 167 180
27264 27266 3×1,5 5,3 12,0 220 16 75
27268 27270 3×2,5 5,7 13,5 270 21 80
27272 27274 3×4 8,7 15,0 360 28 90
27276 27278 3×6 9,7 16,0 485 36 95
27280 27282 3×10 11,5 18,5 675 50 110
27285 27287 3×16 Flex 13,4 22,0 905 66 130
27289 27291 3×25 Flex 16,7 26,0 1310 86 155
27293 27295 3×35 Flex 18,4 28,0 1665 107 170
27297 27299 3×50 Flex 21,0 32,5 2250 137 195
27301 27303 3×70 Flex 24,7 37,5 3095 168 225
27305 27307 3×95 Flex 38,8 42,0 4020 199 250
27309 27311 3×120 Flex 41,9 46,5 4990 232 280
27313 27315 3×150 Flex 50,2 53,0 6275 267 320
27328 27330 4×1,5 5,6 13,0 255 16 80
27332 27334 4×2,5 6,3 14,5 315 21 85
27336 27338 4×4 9,5 16,0 425 28 95
27340 27342 4×6 10,6 17,5 580 36 105
27344 27346 4×10 12,6 20,0 815 50 120
27349 27351 4×16 Flex 14,8 23,5 1085 66 140
27353 27355 4×25 Flex 18,5 28,5 1595 86 170
27357 27359 4×35 Flex 19,9 31,0 2055 107 185
27361 27363 4×50 Flex 23,2 35,5 2775 137 215
27365 27367 4×70 Flex 37,8 42,0 3945 168 250
27369 27371 4×95 Flex 41,7 46,5 5010 199 280
27373 27375 4×120 Flex 46,9 51,5 6240 232 310
27392 27394 5×1,5 6,1 14,0 295 13 85
27396 27398 5×2,5 9,3 15,5 390 17 95
27400 27402 5×4 10,4 17,0 505 23 105
27404 27406 5×6 11,6 19,0 680 30 115
27408 27410 5×10 13,8 22,0 975 42 130
27413 27415 5×16 Flex 16,3 25,5 1320 55 155
27417 27419 5×25 Flex 20,3 31,0 1930 71 185

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx

Ship cable

LKMSM-HF

DownloadDatasheet PDF LKMSM-HF Armoured power cable with extruded filler 0,6/1kV Application: For fixed installation in most areas and on open... read more

Beschrijving

Download
Datasheet PDF

LKMSM-HF

Armoured power cable with extruded filler 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units.

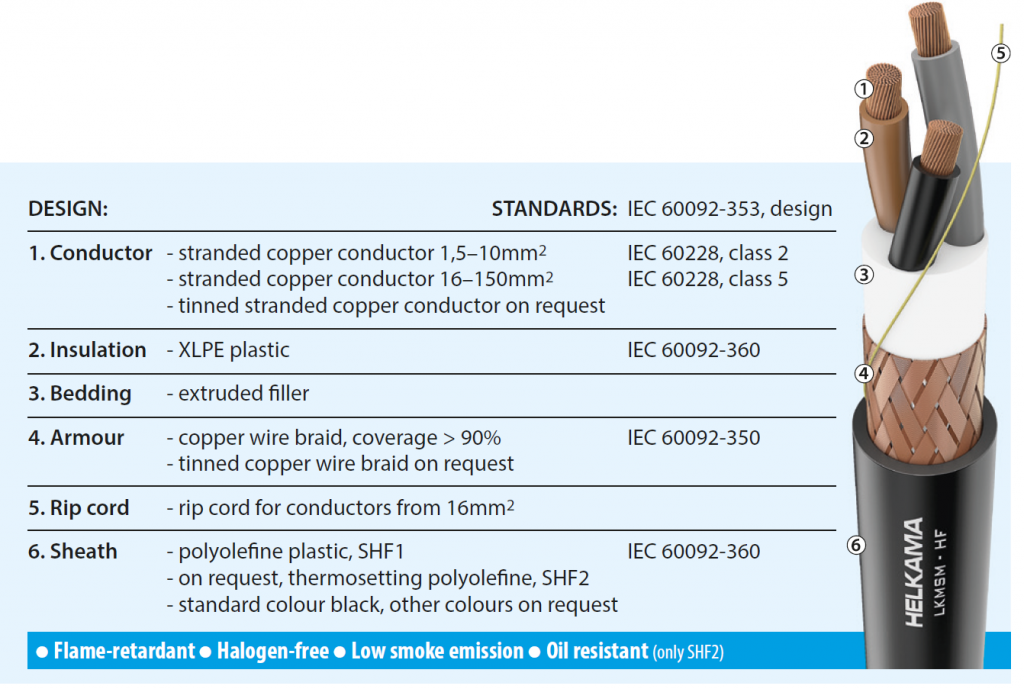

Main characteristics
