LKSM-SHF2 120°C 250V

DownloadDatasheet PDF LKSM-SHF2 120°C Heat and oil resistant armoured control and instrumentation cable 250V Application: For fixed installation in most... read more

Beschrijving

Download
Datasheet PDF

LKSM-SHF2 120°C

Heat and oil resistant armoured control and instrumentation cable 250V

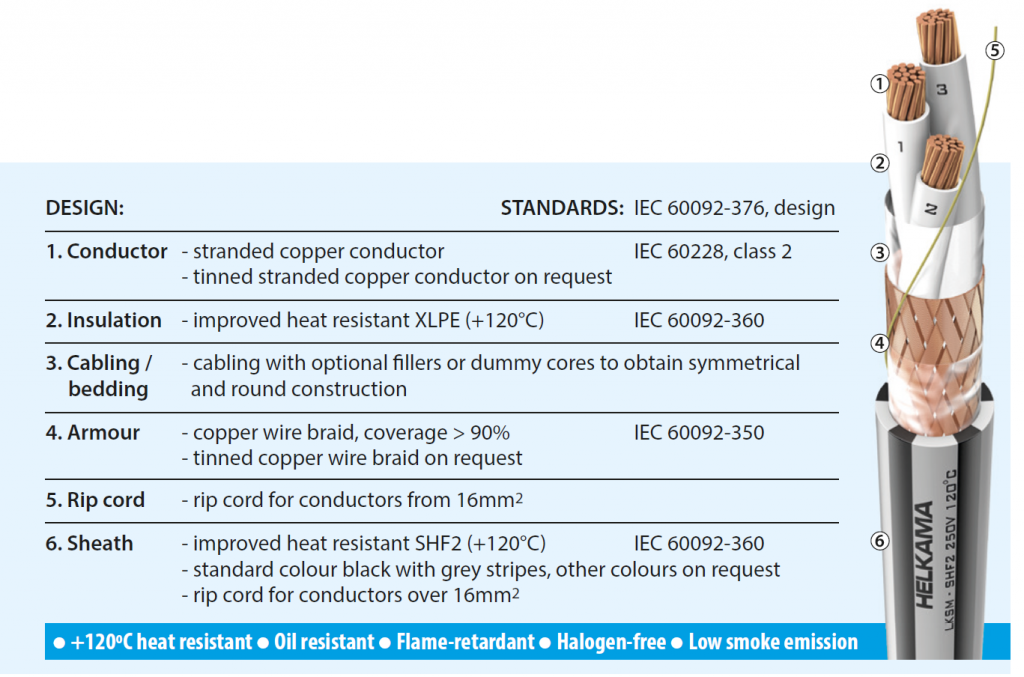

Application: For fixed installation in most areas and on open deck in ships or on oil rigs and various industrial use. Excellent resistance against weathering, ozone, UV-rays, Oil / Diesel oil. Typical Marine, Oil, Gas and Petrochemical applications are for example Ship Engine rooms, power plants and/or other areas where ambient temperature may exceed +80°C, which is the limit for traditional IEC 60092-cables.

Main characteristics
Rated voltage 150/250V (300V)
Oil resistance IEC 60811-404 conditions according to 60092-360
Halogen-free IEC 60754 series
Flame-retardant IEC 60332-1-2 Test for single insulated wire and cable
IEC 60332-3-22 Test for bunched wires and cables, category A
Smoke emission IEC 61034 series
Temperature rating: Fixed installation: -40 ºC to +120 ºC
Occasionally moved: -20 ºC to +120 ºC
Max. conductor temperature: +120 ºC
For details see general information section



Part number Number of conductors & cross-section
n x mm2
Cross-section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
4127779 2×0,5 3,0 6,5 70 8,7 40
4127780 3×0,5 3,0 7,0 80 7,6 40
4127781 4×0,5 2,6 7,5 85 6,9 45
4127782 5×0,5 3,1 8,0 95 6,4 45
4127783 7×0,5 3,2 8,5 110 5,8 50
4127784 10×0,5 4,1 10,5 155 5,1 60
4127785 12×0,5 4,3 10,5 170 4,8 65
4127786 14×0,5 4,5 11,0 190 4,6 65
4127787 16×0,5 5,3 11,5 210 4,4 70
4127788 19×0,5 5,1 12,5 235 4,1 75
4127789 20×0,5 5,5 13,0 250 4,1 80
4127790 24×0,5 6,1 14,0 285 3,8 85
4127791 27×0,5 6,3 14,5 305 3,7 85
4127792 32×0,5 8,9 15,0 370 3,5 90
4127793 37×0,5 9,7 16,0 415 3,3 95
4126402 2×0,75 3,1 7,5 80 11,3 45
4126403 3×0,75 3,1 7,5 95 9,8 45
4126404 4×0,75 3,2 8,0 105 8,9 50
4126405 5×0,75 3,6 9,5 130 8,3 55
4126407 7×0,75 3,9 10,0 155 7,4 60
4126410 10×0,75 5,1 12,0 210 6,6 75
4126412 12×0,75 5,3 12,5 230 6,2 75
4126414 14×0,75 5,6 13,0 255 5,9 80
4126416 16×0,75 5,9 13,5 280 5,6 80
4126419 19×0,75 6,3 14,5 315 5,3 85
4126420 20×0,75 10,9 18,0 430 5,2 105
4126424 24×0,75 10,2 17,0 415 4,9 100
4126427 27×0,75 10,5 17,5 450 4,7 105
4126432 32×0,75 10,9 18,0 510 4,5 110
4126437 37×0,75 11,8 19,5 570 4,3 115
