Ship cable

FXMMS

DownloadDatasheet PDF FXMMS Optical fibre installation cable Cable characteristics 4 slots 8 slots Tensile strength EN 187000 method 501 N... read more

Beschrijving

Download
Datasheet PDF

FXMMS

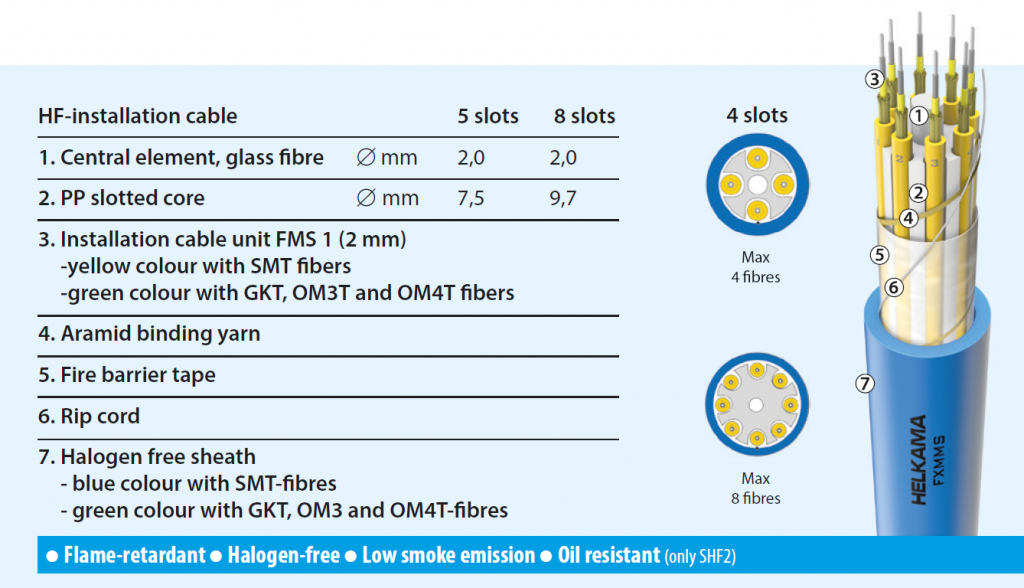

Optical fibre installation cable

Cable characteristics 4 slots 8 slots
Tensile strength EN 187000 method 501 N 1500 1750
Crush strength / 100 mm (plate) EN 187000 method 504 N 4000 7000
Crush strength / 25 mm (mandrel) EN 187000 method 504 N 750 1000
Impact strength EN 187000 method 505 J 30 30



Temperature rating: Fixed installation -45 °C to +70 °C
Minimum recommended installation temperature -15 °C
Fire performance Flame retardant/fire retardant IEC 60332-1, IEC 60332-3-22
Halogenity IEC 60754-1
Acidity of combustion gases IEC 60754-2
Conductivity of combustion gases IEC 60754-2
Smoke emission density
Light transmission IEC 61034-1;2xx



FXMMS Cable and number of fibres Diameter
of slotted
core,
mm
Nominal
outer
diameter
mm
Approximate
weight
kg/km
Minimum bending radius
Partnumber during
installation,
mm
final
installation,
mm
10810 FXMMS 2 SMT (2mm) 4 10,7 102 160 110
10812 FXMMS 4 SMT (2mm) 4 10,7 102 160 110
13747 FXMMS 2 GKT (2mm) 4 10,7 102 160 110
13748 FXMMS 4 GKT (2mm) 4 10,7 102 160 110
13872 FXMMS 2 OM3T (2mm) 4 10,7 102 160 110
13874 FXMMS 4 OM3T (2mm) 4 10,7 102 160 110
13910 FXMMS 2 OM4T (2mm) 4 10,7 102 160 110
13912 FXMMS 4 OM4T (2mm) 4 10,7 102 160 110
10814 FXMMS 6 SMT (2mm) 8 13,1 142 195 130
10816 FXMMS 8 SMT (2mm) 8 13,1 142 195 130
13749 FXMMS 6 GKT (2mm) 8 13,1 142 195 130
13750 FXMMS 8 GKT (2mm) 8 13,1 142 195 130
13876 FXMMS 6 OM3T (2mm) 8 13,1 142 195 130
13878 FXMMS 8 OM3T (2mm) 8 13,1 142 195 130
13914 FXMMS 6 OM4T (2mm) 8 13,1 142 195 130
13916 FXMMS 8 OM4T (2mm) 8 13,1 142 195 130

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
