H-FLEX INS C-PUR 250V

DownloadDatasheet PDF H-FLEX INS C-PUR 250V Screened instrumentation and control cable for flexible use Application: The cable is intended for... read more

Beschrijving

Download
Datasheet PDF

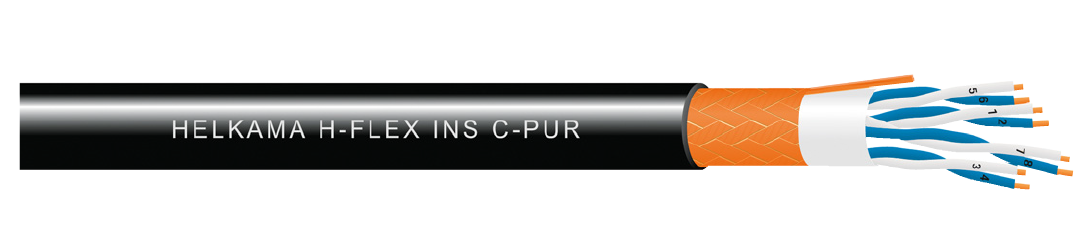

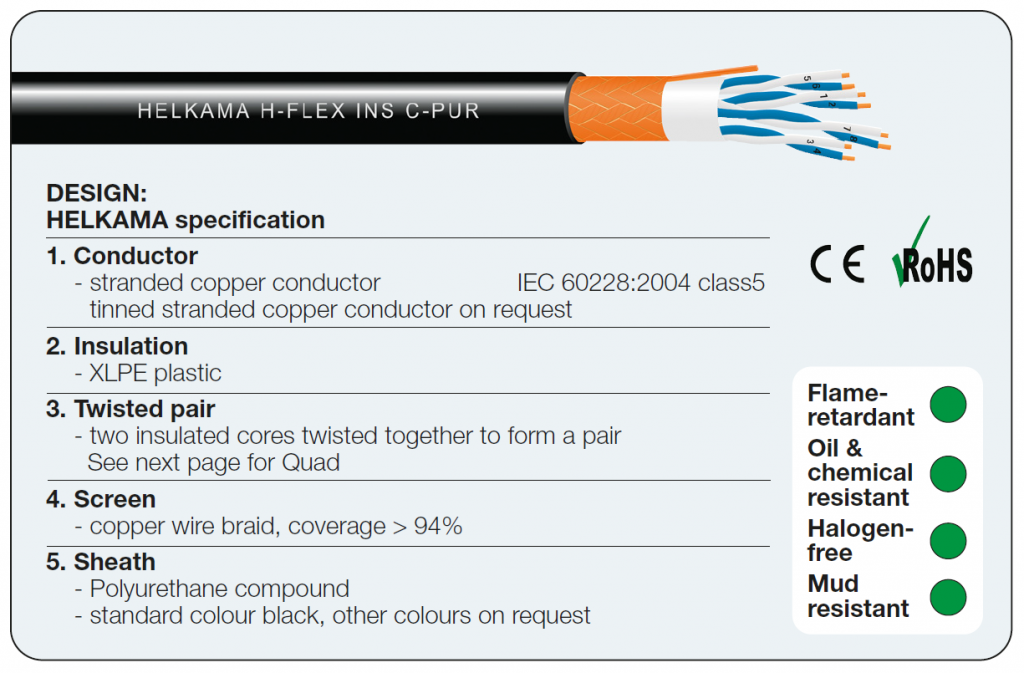

H-FLEX INS C-PUR 250V

Screened instrumentation and control cable for flexible use

Application: The cable is intended for flexible, portable, movable applications. Applications such as ship to shore cable, outdoor cranes and various industrial applications.It is suitable for flexible applications in machineries, machine tools, robot technics and can be submersed into water. The cable has good mechanical characteristics, high tensile strength, is abrasion resistant and resistant to UV, chemicals, oil and other fluids. The cable can be coiled back and forth. Suitable to dragchain use. Mud resistant according to NEK606.

Main characteristics
Rated voltage 150/250V (300V)
Maximum conductor temperature 90 °C
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
Halogen-free IEC 60754 series
Mechanical flex test EN 50396 -conditions according to EN 50525
Oil resistancy EN 60811-404  -conditions according to EN 50363-10-2
Mechanical Min. bending radius
– fixed: 4 x d < 25 mm < 6 x d
– mobile: 8 x d < 25 mm < 10 x d
– s-shape deflection: 15 x d < 25 mm < 20 x d
Max. tensile load without strength members 15 N/mm2
of phases copper cross section
Operating temperature -60 – +80 °C fixed use
-35 – +80 °C flexible use
Core identification White and blue insulation with black numbers
Marine type approvals DNV-GL, BV and ABS



Part number
Normal
Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
5700103012 1x2x0,5 6,0 35
5700103013 1x3x0,5 6,5 40
5700103014 1x4x0,5 7,0 50
5700103022 2x2x0,5 9,0 55
5700103032 3x2x0,5 9,0 70
5700103042 4x2x0,5 10,5 95
5700103072 7x2x0,5 12,5 140
5700103082 8x2x0,5 13,0 160
5700103102 10x2x0,5 15,0 195
5700103122 12x2x0,5 15,5 230
5700103142 14x2x0,5 16,5 260
5700103162 16x2x0,5 17,5 290
5700103192 19x2x0,5 19,0 335
5700103242 24x2x0,5 21,5 430
5700103272 27x2x0,5 22,5 475
5700103302 30x2x0,5 23,5 520
5700103322 32x2x0,5 24,0 550
5700103372 37x2x0,5 26,0 630
5700104012 1x2x0,75 7,0 40
5700104013 1x3x0,75 7,0 50
5700104014 1x4x0,75 7,5 65
5700104022 2x2x0,75 10,0 80
5700104032 3x2x0,75 10,5 100
5700104042 4x2x0,75 11,5 125
5700104072 7x2x0,75 14,0 195
5700104082 8x2x0,75 15,0 225
5700104102 10x2x0,75 17,0 275
5700104122 12x2x0,75 18,0 320
5700104142 14x2x0,75 19,0 365
5700104162 16x2x0,75 20,0 410
5700104192 19x2x0,75 22,0 490
5700104242 24x2x0,75 24,5 610
5700104272 27x2x0,75 26,0 675
5700104302 30x2x0,75 27,0 750
5700104322 32x2x0,75 28,0 790
5700104372 37x2x0,75 29,5 895
5700107012 1x2x1,5 8,5 65
5700107013 1x3x1,5 9,0 85
5700107014 1x4x1,5 10,0 110
5700107022 2x2x1,5 13,0 135
5700107032 3x2x1,5 14,0 175
5700107042 4x2x1,5 15,0 215
5700107072 7x2x1,5 18,5 345
5700107082 8x2x1,5 20,0 395
5700107102 10x2x1,5 23,0 500
5700107122 12x2x1,5 24,0 580
5700107142 14x2x1,5 25,5 675
5700107162 16x2x1,5 27,0 755
5700107192 19x2x1,5 29,5 890
5700107242 24x2x1,5 33,0 1130
5700107272 27x2x1,5 35,0 1255
5700107302 30x2x1,5 36,5 1375
5700107322 32x2x1,5 38,0 1470
5700107372 37x2x1,5 40,0 1675
5700108012 1x2x2,5 10,0 100
5700108013 1x3x2,5 10,5 125
5700108014 1x4x2,5 11,5 155
5700108022 2x2x2,5 15,0 185
5700108032 3x2x2,5 15,5 245
5700108042 4x2x2,5 17,5 320
5700108072 7x2x2,5 21,0 520
5700108082 8x2x2,5 23,0 600
5700108102 10x2x2,5 26,0 750
5700108122 12x2x2,5 27,5 875
5700108142 14x2x2,5 29,5 1010
5700108162 16x2x2,5 31,5 1140
5700108192 19x2x2,5 34,0 1355
5700108242 24x2x2,5 38,0 1705
5700108272 27x2x2,5 40,0 1895
5700108302 30x2x2,5 42,5 2115
5700108322 32x2x2,5 44,0 2260
5700108372 37x2x2,5 46,5 2575
