Scheepskabel

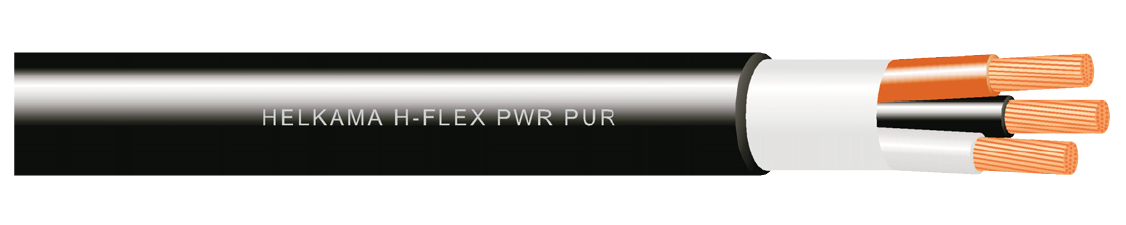

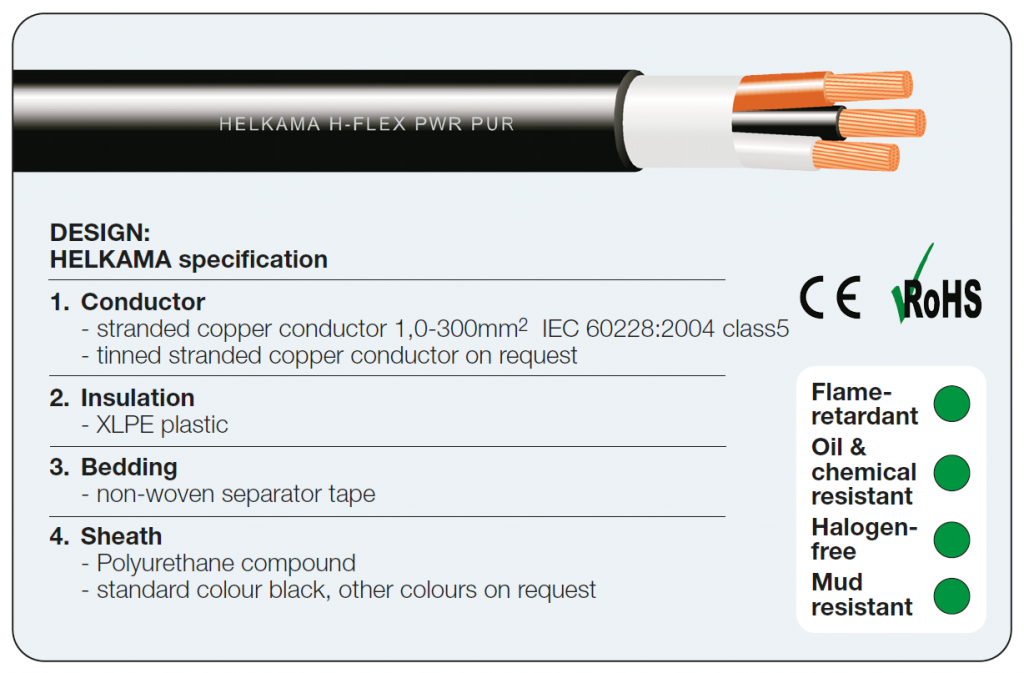

H-FLEX PWR PUR 0,6/1kV

DownloadDatasheet PDF H-FLEX PWR PUR 0,6/1kV Unscreened power and control cable for flexible use Application: The cable is intended for... read more

Beschrijving

Download
Datasheet PDF

H-FLEX PWR PUR 0,6/1kV

Unscreened power and control cable for flexible use

Application: The cable is intended for flexible, portable, movable applications. Applications such as ship to
shore cable, outdoor cranes and various industrial applications.It is suitable for flexible applications in machineries,
machine tools, robot technics and can be submersed into water. The cable has good mechanical characteristics,
high tensile strength, is abrasion resistant and resistant to UV, chemicals, oil and other fluids. The cable can be
coiled back and forth. Suitable to dragchain use. Mud resistant according to NEK606.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Maximum conductor temperature 90 °C
Flame-retardant IEC 60332-1-2  -test for single insulated wire and cable
Halogen-free IEC 60754 series
Mechanical flex test EN 50396 -conditions according to EN 50525
Oil resistancy EN 60811-404  -conditions according to EN 50363-10-2
Operating temperature -60 – +80 °C fixed use
-35 – +80 °C flexible use
Mechanical Min. bending radius
– fixed: 4 x d < 25 mm < 6 x d
– mobile: 6 x d < 25 mm < 8 x d
– s-shape deflection: 15 x d < 25 mm < 20 x d
Max. tensile load without strength members
15 N/mm2 of phases copper cross section
Core identification Color code for 1…4 (5 if PE conductor) core cable,
number code for 5…37 core cable.
Marine type approvals DNV-GL, BV and ABS



Part number
Normal
G – type Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating
A
5300105010 5300105011 1×1,0 5,0 30 17
5300107010 5300107011 1×1,5 5,5 35 22
5300108010 5300108011 1×2,5 6,0 45 30
5300109010 5300109011 1×4 6,5 60 39
5300110010 5300110011 1×6 7,0 80 50
5300111010 5300111011 1×10 8,0 125 71
5300112010 5300112011 1×16 9,0 175 94
5300113010 5300113011 1×25 11,5 275 123
5300114010 5300114011 1×35 12,5 370 153
5300115010 5300115011 1×50 14,5 510 196
5300116010 5300116011 1×70 16,5 715 240
5300117010 5300117011 1×95 18,0 930 284
5300118010 5300118011 1×120 20,5 1170 331
5300119010 5300119011 1×150 23,5 1480 381
5300120010 5300120011 1×185 25,5 1805 429
5300121010 5300121011 1×240 28,5 2395 507
5300122010 5300122011 1×300 32,0 2960 582
5300105020 2×1,0 8,0 55 14
5300107020 2×1,5 8,5 65 19
5300108020 2×2,5 10,0 100 26
5300109020 2×4 11,0 130 33
5300110020 2×6 12,0 195 43
5300111020 2×10 14,5 310 60
5300112020 2×16 16,5 445 80
5300113020 2×25 21,0 685 105
5300114020 2×35 23,0 925 130
5300115020 2×50 26,5 1285 167
5300116020 2×70 31,0 1790 204
5300105030 5300105031 3×1,0 8,5 70 12
5300107030 5300107031 3×1,5 9,5 90 15
5300108030 5300108031 3×2,5 10,5 125 21
5300109030 5300109031 3×4 11,5 170 27
5300110030 5300110031 3×6 13,0 255 35
5300111030 5300111031 3×10 15,5 400 50
5300112030 5300112031 3×16 18,0 580 66
5300113030 5300113031 3×25 22,5 920 86
5300114030 5300114031 3×35 24,5 1220 107
5300115030 5300115031 3×50 28,5 1720 137
5300116030 5300116031 3×70 33,5 2415 168
5300117030 5300117031 3×95 37,5 3140 199
5300118030 5300118031 3×120 42,0 3970 232
5300119030 5300119031 3×150 47,5 5010 267
5300120030 5300120031 3×185 52,5 6145 300
5300121030 5300121031 3×240 59,5 8190 355
5300122030 5300122031 3×300 67,0 10170 407
5300105040 5300105041 4×1,0 9,5 95 12
5300107040 5300107041 4×1,5 10,0 110 15
5300108040 5300108041 4×2,5 11,5 160 21
5300109040 5300109041 4×4 12,5 220 27
5300110040 5300110041 4×6 14,0 320 35
5300111040 5300111041 4×10 17,0 510 50
5300112040 5300112041 4×16 19,5 760 66
5300113040 5300113041 4×25 25,0 1195 86
5300114040 5300114041 4×35 27,0 1605 107
5300115040 5300115041 4×50 32,0 2265 137
5300116040 5300116041 4×70 37,0 3175 168
5300117040 5300117041 4×95 41,5 4145 199
5300118040 5300118041 4×120 46,5 5225 232
5300119040 5300119041 4×150 53,5 6630 267
5300120040 5300120041 4×185 59,0 8125 300
5300121040 5300121041 4×240 66,5 10830 355
5300105050 5300105051 5×1,0 10,0 115 10
5300107050 5300107051 5×1,5 11,0 135 13
5300108050 5300108051 5×2,5 12,5 200 17
5300109050 5300109051 5×4 14,0 270 23
5300110050 5300110051 5×6 15,5 395 29
5300111050 5300111051 5×10 19,0 630 41
5300112050 5300112051 5×16 21,5 920 55
5300113050 5300113051 5×25 27,5 1460 71
5300114050 5300114051 5×35 30,0 1965 89
5300115050 5300115051 5×50 35,5 2805 114
5300116050 5300116051 5×70 41,5 4000 139
5300117050 5300117051 5×95 46,0 5245 165
5300118050 5300118051 5×120 51,5 6735 192
5300119050 5300119051 5×150 59,5 8695 221
5300120050 5300120051 5×185 65,5 10850 249
5300105060 5300105061 6×1,0 11,0 150 0
5300107060 5300107061 6×1,5 12,0 155 0
5300108060 5300108061 6×2,5 13,5 235 0
5300105070 5300105071 7×1,0 11,0 145 9
5300107070 5300107071 7×1,5 12,0 170 11
5300108070 5300108071 7×2,5 13,5 260 15
5300109070 5300109071 7×4 15,0 360 20
5300110070 5300110071 7×6 17,0 520 26
5300111070 5300111071 7×10 20,5 845 37
5300112070 5300112071 7×16 24,0 1270 49
5300113070 5300113071 7×25 30,5 2030 64
5300105100 5300105101 10×1,0 14,0 205 8
5300107100 5300107101 10×1,5 15,5 250 10
5300108100 5300108101 10×2,5 17,5 370 14
5300105120 5300105121 12×1,0 14,5 230 7
5300107120 5300107121 12×1,5 16,0 280 10
5300108120 5300108121 12×2,5 18,0 425 13
5300105140 5300105141 14×1,0 15,5 265 7
5300107140 5300107141 14×1,5 16,5 320 9
5300108140 5300108141 14×2,5 19,0 485 12
5300105160 5300105161 16×1,0 16,0 300 7
5300107160 5300107161 16×1,5 17,5 365 9
5300108160 5300108161 16×2,5 20,0 550 12
5300105190 5300105191 19×1,0 17,0 340 6
5300107190 5300107191 19×1,5 18,5 415 8
5300108190 5300108191 19×2,5 21,5 645 11
5300105240 5300105241 24×1,0 20,0 435 6
5300107240 5300107241 24×1,5 22,5 535 8
5300108240 5300108241 24×2,5 25,5 820 10
5300105270 5300105271 27×1,0 21,0 490 5
5300107270 5300107271 27×1,5 22,5 590 7
5300108270 5300108271 27×2,5 26,0 905 10
5300105300 5300105301 30×1,0 21,5 540 5
5300107300 5300107301 30×1,5 23,5 655 7
5300108300 5300108301 30×2,5 27,0 1005 9
5300105370 5300105371 37×1,0 23,0 640 5
5300107370 5300107371 37×1,5 25,5 780 7
5300108370 5300108371 37×2,5 29,0 1205 9
5330113031 3×25+3×6 23,0 1060 86
5330114031 3×35+3×6 25,0 1355 107
5330115031 3×50+3×10 29,0 1940 137
5330116031 3×70+3×16 33,5 2765 168
5330117031 3×95+3×16 37,5 3475 199
5330118031 3×120+3×25 42,0 4530 232
5330119031 3×150+3×25 48,5 5560 267
5330120031 3×185+3×35 53,0 6880 300
5330121031 3×240+3×50 60,0 9190 355
5330122031 3×300+3×50 67,0 11165 407
