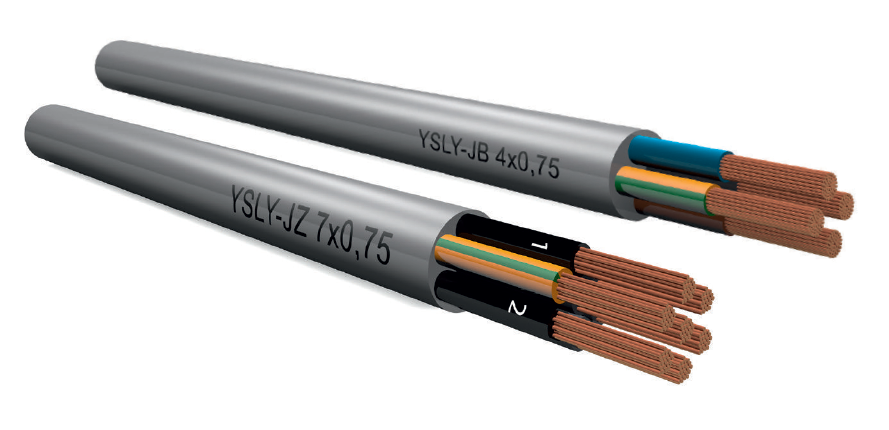

Stuurstroomkabel

YSLY -OZ/-JZ/-OB/-JB

DownloadDatasheet PDF YSLY -OZ/-JZ/-OB/-JB PVC control cable APPLICATION Used as a measuring and control cable on machinery, conveyor belts, in... read more

Beschrijving

Download
Datasheet PDF

YSLY -OZ/-JZ/-OB/-JB

PVC control cable

APPLICATION
Used as a measuring and control cable on machinery, conveyor belts, in air conditioning technology, sys-tems engineering and dry and damp rooms under low mechanical loads. Only for outdoor use in the case of shielded installation. Not suitable for use in water.
The cable is largely resistant against the effects of acids, lyes and oils.

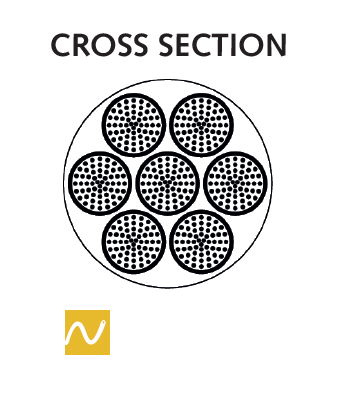

Structure
Design structure based on DIN VDE 0245, 0250 and 0281
Conductor Copper conductor, bare, flexible, conductor structure according to
VDE 0295 class 5 and IEC 228 class 5
Cores OZ – black cores with imprinted digits, no green and yellow protective
conductor
JZ – black cores with imprinted digits, green and yellow protective
conductor
OB – coloured cores without green and yellow protective conductor
JB – coloured cores with green and yellow protective conductor
Stranding method Cores stranded in layers, with optimum lay lengths
Protective conductor Green and yellow in the outer layer
Outer sheath Sheath material made from special PVC compound

Technical data
Nominal voltage 300 V/500 V
Test voltage 3000 V
Conductor resistance At 20°C according to VDE 0295 class 5 and IEC 228 class 5 for
flexible conductors
Conductor temperature Max. +70°C during operation, + 150°C in the case of a short circuit
Insulation resistance Min. 20 MOhm x km
Breakdown voltage Min. 6000 V
Min. bending radius Up to 12 mm Ø: 10 x cable diameter
> 12 mm Ø: 15 x cable diameter
Temperature range Moving -5°C to +70°C
Temperature range Fixed installation -30°C to +80°C
Tests according to DIN VDE 0472 and IEC:
Flammability Test method B according to VDE 0472 part 804 and IEC 60332-1
PVC properties Self extinguishing and flame retardant



Product description Cu weight Outer Ø (mm) Weight (kg/km)
YSLY-OZ 2×0.5 9,6 4,8 35
YSLY-JZ 3×0.5 14,4 5,1 41
YSLY-JZ 4×0.5 19,2 5,7 49
YSLY-JZ 5×0.5 24 6,2 60
YSLY-JZ 7×0.5 33,6 6,7 77
YSLY-JZ 10×0.5 48 8,6 114
YSLY-JZ 12×0.5 58 8,9 128
YSLY-JZ 18×0.5 86 10,5 185
YSLY-JZ 25×0.5 120 12,6 256
YSLY-JZ 50×0.5 240 17,2 510
YSLY-JZ 61×0.5 293 18,5 595
YSLY-OZ 2×0.75 14,4 6,4 50
YSLY-JZ 3×0.75 21,6 6,7 60
YSLY-JZ 4×0.75 28,8 7,2 73
YSLY-JZ 5×0.75 36 08 88
YSLY-JZ 7×0.75 50 7,6 109
YSLY-JZ 10×0.75 72 10,6 153
YSLY-JZ 12×0.75 86 10,6 176
YSLY-JZ 18×0.75 129,6 12,2 268
YSLY-JZ 25×0.75 180 16 374
YSLY-JZ 50×0.75 360 21,7 688
YSLY-OZ 2×1 19,2 6,8 57
YSLY-JZ 3×1 28,8 7,2 73
YSLY-JZ 4×1 38,4 7,8 85
YSLY-JZ 5×1 48 8,6 105
YSLY-JZ 7×1 67 8,2 131
YSLY-JZ 10×1 96 11,4 183
YSLY-JZ 12×1 115 11,4 220
YSLY-JZ 14×1 134,4 12,1 261
YSLY-JZ 18×1 172,8 13,4 315
YSLY-JZ 25×1 240 15,4 449
YSLY-JZ 34×1 326 18,9 594
YSLY-JZ 50×1 480 22,5 808
YSLY-OZ 2×1.5 28,8 7,7 77
YSLY-JZ 3×1.5 43 8,1 95
YSLY-JZ 4×1.5 58 9,1 117
YSLY-JZ 5×1.5 72 10,2 144
YSLY-JZ 7×1.5 101 9,7 183
YSLY-JZ 10×1.5 144 12,4 265
YSLY-JZ 12×1.5 173 13,4 307
YSLY-JZ 14×1.5 201,6 14,1 349
YSLY-JZ 18×1.5 259,2 16,2 461
YSLY-JZ 25×1.5 360 19,8 655
YSLY-JZ 34×1.5 489,6 21,4 850
YSLY-JZ 50×1.5 720 25,4 1107
YSLY-OZ 2×2.5 48 9,2 123
YSLY-JZ 3×2.5 72 9,8 152
YSLY-JZ 4×2.5 96 11 192
YSLY-JZ 5×2.5 120 12,2 243
YSLY-JZ 7×2.5 168 13,1 310
YSLY-JZ 12×2.5 288 15,7 488
YSLY-JZ 14×2.5 336 16,5 558
YSLY-JZ 25×2.5 600 22,9 989
YSLY-JZ 4×4 153,6 12,8 299
YSLY-JZ 5×4 192 14,1 363
YSLY-JZ 7×4 268,8 16 488
YSLY-JZ 4×6 230,4 14,7 480
YSLY-JZ 5×6 288 16,2 583
YSLY-JZ 7×6 403,2 18,2 782
YSLY-JZ 4×10 384 18,4 737
YSLY-JZ 5×10 480 20,4 914
YSLY-JZ 7×10 672 25,2 1165
YSLY-JZ 4×16 614,4 21,8 1087
YSLY-JZ 5×16 768 24,8 1370
YSLY-JZ 7×16 1.075 28,2 1612
YSLY-JZ 4×25 960 28,9 1713
YSLY-JZ 5×25 1.200 31,8 2291
YSLY-JZ 4×35 1.344 31,8 2393
YSLY-JZ 5×35 1.680 35 2684
YSLY-OB 2×0.5 9,6 4,8 35
YSLY-JB 3×0.5 14,4 5,1 41
YSLY-JB 4×0.5 19,2 5,7 49
YSLY-JB 5×0.5 24 6,2 60
YSLY-JB 7×0.5 33,6 6,7 77
YSLY-JB 10×0.5 48 8,6 114
YSLY-JB 12×0.5 58 8,9 128
YSLY-JB 18×0.5 86 10,5 185
YSLY-JB 25×0.5 120 12,6 256
YSLY-JB 50×0.5 240 17,2 510
YSLY-JB 61×0.5 293 18,5 595
YSLY-OB 2×0.75 14,4 6,4 50
YSLY-JB 3×0.75 21,6 6,7 60
YSLY-JB 4×0.75 28,8 7,2 73
YSLY-JB 5×0.75 36 08 88
YSLY-JB 7×0.75 50 7,6 109
YSLY-JB 10×0.75 72 10,6 153
YSLY-JB 12×0.75 86 10,6 176
YSLY-JB 18×0.75 129,6 12,2 268
YSLY-JB 25×0.75 180 16 374
YSLY-JB 50×0.75 360 21,7 688
YSLY-OB 2×1 19,2 6,8 57
YSLY-JB 3×1 28,8 7,2 73
YSLY-JB 4×1 38,4 7,8 85
YSLY-JB 5×1 48 8,6 105
YSLY-JB 7×1 67 8,2 131
YSLY-JB 10×1 96 11,4 183
YSLY-JB 12×1 115 11,4 220
YSLY-JB 14×1 134,4 12,1 261
YSLY-JB 18×1 172,8 13,4 315
YSLY-JB 25×1 240 15,4 449
YSLY-JB 34×1 326 18,9 594
YSLY-JB 50×1 480 22,5 808
YSLY-OB 2×1.5 28,8 7,7 77
YSLY-JB 3×1.5 43 8,1 95
YSLY-JB 4×1.5 58 9,1 117
YSLY-JB 5×1.5 72 10,2 144
YSLY-JB 7×1.5 101 9,7 183
YSLY-JB 10×1.5 144 12,4 265
YSLY-JB 12×1.5 173 13,4 307
YSLY-JB 14×1.5 201,6 14,1 349
YSLY-JB 18×1.5 259,2 16,2 461
YSLY-JB 25×1.5 360 19,8 655
YSLY-JB 34×1.5 489,6 21,4 850
YSLY-JB 50×1.5 720 25,4 1107
YSLY-OB 2×2.5 48 9,2 123
YSLY-JB 3×2.5 72 9,8 152
YSLY-JB 4×2.5 96 11 192
YSLY-JB 5×2.5 120 12,2 243
YSLY-JB 7×2.5 168 13,1 310
YSLY-JB 12×2.5 288 15,7 488
YSLY-JB 14×2.5 336 16,5 558
YSLY-JB 25×2.5 600 22,9 989
YSLY-JB 4×4 153,6 12,8 299
YSLY-JB 5×4 192 14,1 363
YSLY-JB 7×4 268,8 16 488
YSLY-JB 4×6 230,4 14,7 480
YSLY-JB 5×6 288 16,2 583
YSLY-JB 7×6 403,2 18,2 782
YSLY-JB 4×10 384 18,4 737
YSLY-JB 5×10 480 20,4 914
YSLY-JB 7×10 672 25,2 1165
YSLY-JB 4×16 614,4 21,8 1087
YSLY-JB 5×16 768 24,8 1370
YSLY-JB 7×16 1.075 28,2 1612
YSLY-JB 4×25 960 28,9 1713
YSLY-JB 5×25 1.200 31,8 2291
YSLY-JB 4×35 1.344 31,8 2393
YSLY-JB 5×35 1.680 35 2684

SPECIAL FEATURES

Sheath colour
Grey
