Stuurstroomkabel

SOFTFLEX

DownloadDatasheet PDF SOFTFLEX Highly soft and flexible control cable black, matt registrated by VDE No. 7104! APPLICATION This cable has... read more

Beschrijving

Download
Datasheet PDF

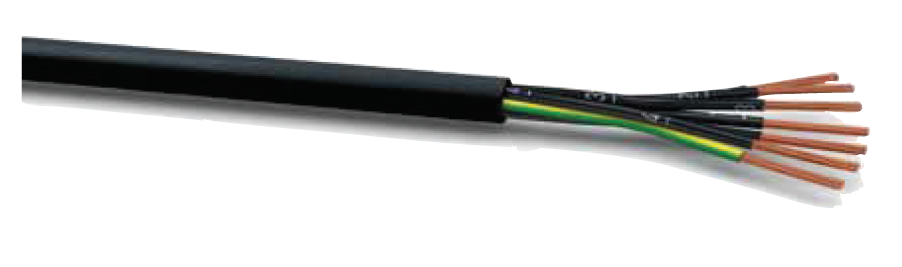

SOFTFLEX

Highly soft and flexible control cable
black, matt
registrated by VDE No. 7104!

APPLICATION
This cable has been manufactured for audio engineering only but these cables are also suitable in areas of household appliances such as very flexible network-connecting cable appliances. SOFTFLEX is very ductile and is very easy to handle due to the improved talcum effect. The outer sheath is lead-free and offers conditional abrasion as well as conditional oil ad UV-resistance.

Construction
Copper conductor bare, fine wired, acc. to VDE 0295 Kl. 5
Insulation PVC
Core identification black with white numbering
(optional coloured cores)
with or without green-yellow core in outer layer to be used as protective conductor
Sheath super soft and lead free special PVC mixture,
black RAL 9005, opt. other colours
Printing white (code, dimension, VDE-Reg. No./CE-code/RoHS/code production date)



Technical data
Nominal voltage 300 / 500 V
Test voltage 4000 V
Insulation resistance > 20 MΩ x km
Temperature at the conductor flexible -5°C … 70°C
Temperature at the conductor fixed installation -30°C … 70°C
Bending radius flexible 7,5 x cable diameter
Bending radius fixed installation 4 x cable diameter



No.cores x cross-sec.
mm2
approx. outer Ø
mm
Copper content
kg/km
Weight
kg/km
GLOBALFLEX-SOFT
14 G 1,5 12,9 202,0 304,0
18 G 1,5 14,4 259,0 383,0
14 G 2,5 15,7 336,0 480,0
18 G 2,5 17,9 432,0 621,0

Dimension: 2 – 100 cores; 0,5 – 240 mm². Available also copper screened. Please request.
