Stuurstroomkabel

HSLH

DownloadDatasheet PDF HSLH LSOH control cable APPLICATION Suitable for use as a fixed installation or flexible (freely moving without restrictive... read more

Beschrijving

Download
Datasheet PDF

HSLH

LSOH control cable

APPLICATION
Suitable for use as a fixed installation or flexible (freely moving without restrictive guidance) measuring and control cable for electrical equipment and power systems in industry and the systems engineering sector. For computer units, control units on machine tools, assembly lines, control units on conveyor systems and production lines, for controlling, regulating and monitoring work processes, industrial plants, as well as guided lines with occasional free, not constantly recurring movement without forced guidance. For external and internal installation in wet and damp environments but not outdoors.
With reduced fire load and low smoke and corrosive combustion gas emissions for preventing increased risks of injury to persons and damage to property in the event of a fire.

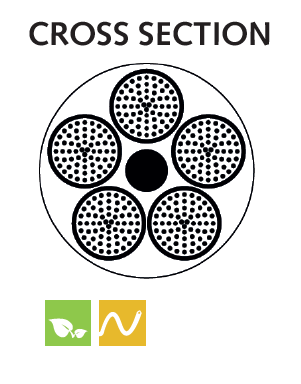

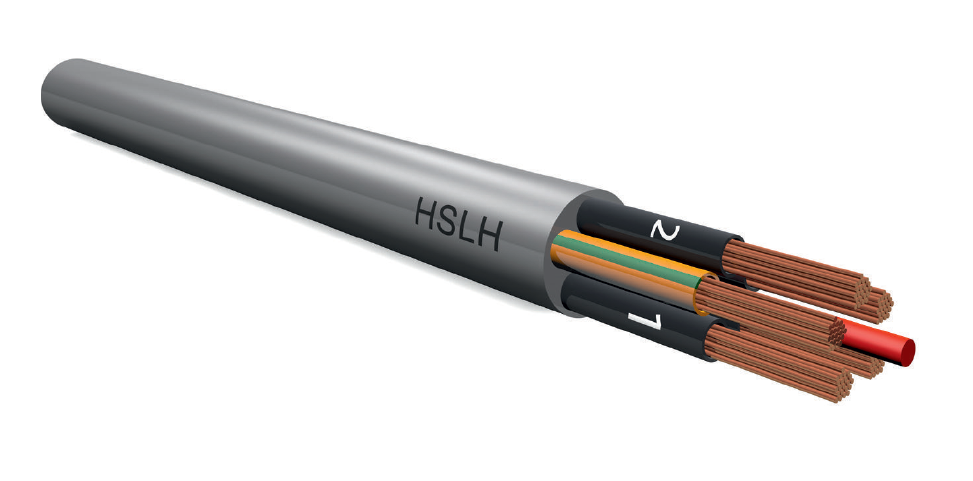

Structure
Conductor Copper, bare, flexible
Cores Halogen-free polymer insulation;
Labelling: black with digits (only 2-cored);
Yellow and green, remaining cores black with digits
Outer sheath Halogen-free, flame-retardant polymer

Technical data
Nominal voltage 300 V/500 V
Test voltage 2000 V
Flame retardancy DIN VDE 0472-804, test method C (cable bundle set)
Halogen-free nature DIN VDE 0472-815 corrosiveness
of combustion gases DIN VDE 0472-813
Smoke density DIN VDE0472-816
Installation temperature Fixed installation -40°C to +85°C
Installation temperature Moving -30°C to +85°C, in the event of a short circuit +160°C
Min. bending radius Cable Ø < 12 mm fixed installation 8x cable Ø
Min. bending radius Cable Ø < 12 mm moving 10x cable Ø
Min. bending radius Cable Ø > 12 mm fixed installation 8x cable Ø
Min. bending radius Cable Ø > 12 mm moving 10x cable Ø



Product description Cu weight Outer Ø (mm) Weight (kg/km)
HSLH-OZ 2×0.75 14,4 6,4 55
HSLH-JZ 3×0.75 21,6 6,8 65
HSLH-JZ 4×0.75 29 07 75
HSLH-JZ 5×0.75 36 7,9 90
HSLH-JZ 7×0.75 50,4 8,6 110
HSLH-JZ 12×0.75 86,4 11,5 170
HSLH-JZ 18×0.75 129,6 13,4 255
HSLH-JZ 25×0.75 180 16,5 365
HSLH-JZ 3×1 29 6,1 62
HSLH-JZ 4×1 38 6,8 79
HSLH-JZ 5×1 48 7,6 98
HSLH-JZ 7×1 67 8,3 126
HSLH-JZ 12×1 115 10,8 212
HSLH-OZ 2×1.5 29 7,2 75
HSLH-JZ 3×1.5 43,2 7,6 90
HSLH-JZ 4×1.5 58 8,3 110
HSLH-JZ 5×1.5 72 09 135
HSLH-JZ 7×1.5 101 9,8 165
HSLH-JZ 10×1.5 144 12,8 235
HSLH-JZ 12×1.5 173 13,2 270
HSLH-JZ 18×1.5 259 15,4 385
HSLH-JZ 25×1.5 360 19,6 575
HSLH-JZ 3×2.5 72 8,4 127
HSLH-JZ 4×2.5 96 9,3 162
HSLH-JZ 5×2.5 120 10,3 200
HSLH-JZ 4×4.0 154 11,6 240
HSLH-JZ 5×4.0 192 12,7 285
HSLH-JZ 4×6.0 231 13 305
HSLH-JZ 5×6.0 288 14,3 410

SPECIAL FEATURES

Properties
Unshielded
Halogen free
Flame retardant

Sheath colour
Grey (RAL 7001), imprint:
TYP HALOGENFREI
Company tracer thread
