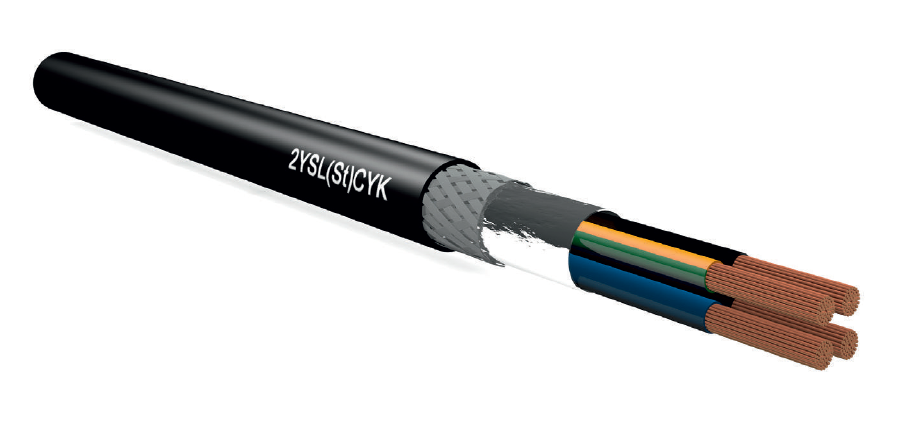

2YSL(St)CYK

DownloadDatasheet PDF 2YSL(St)CYK EMC connecting cable APPLICATION Shielded motor connection cable for frequency converters. The shield prevents the unauthorised influence... read more

Beschrijving

Download
Datasheet PDF

2YSL(St)CYK

EMC connecting cable

APPLICATION
Shielded motor connection cable for frequency converters. The shield prevents the unauthorised influence of electromagnetic interferences. The optimum shielding enables frequency converters to be operated fault free. The areas of use include machine tools, industry robots, air conditioning systems, pump systems and handling equipment. Suitable for use in dry and wet rooms and outdoors.

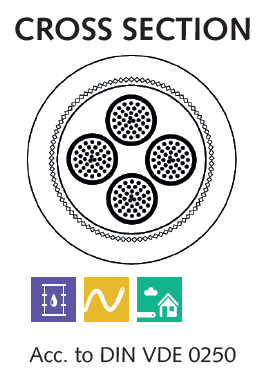

Structure
Conductor Copper wire, bare
Cores Polyethylene (PE) insulation
Shield Aluminium foil, 100% tin-plated copper wires
Outer sheath PVC, black

Technical data
Nominal voltage 600 V/1000 V
Test voltage 4000 V
Insulation resistance 20 MOhm x km
Conductor resistance According to DIN VDE 0295 class 5; IEC228 class 5
Temperature range Moving -5°C to +70°C
Temperature range Fixed installation -40°C to +70°C
Min. bending radius 20 x cable diameter



Product description Cu weight Outer Ø (mm) Weight (kg/km)
2YSL(St)CYK-J 3×1.5 + 3×0.25 86 12 215
2YSL(St)CYK-J 3×2.5 + 3×0.5 144 13 265
2YSL(St)CYK-J 3×4 + 3×0.75 224 15 350
2YSL(St)CYK-J 3×6 + 3×1 298 16 430
2YSL(St)CYK-J 3×10 + 3×1.5 491 21 695
2YSL(St)CYK-J 3×16 + 3×2.5 723 24 925
2YSL(St)CYK-J 3×25 + 3×4 1.138 28 1350
2YSL(St)CYK-J 3×35 + 3×6 1.535 30 1760
2YSL(St)CYK-J 3×50 + 3×10 2.208 35 2550
2YSL(St)CYK-J 3×70 + 3×10 2.871 39 3210
2YSL(St)CYK-J 3×95 + 3×16 3.953 42 4110
2YSL(St)CYK-J 3×120 + 3×16 4.836 47 4925
2YSL(St)CYK-J 3×150 + 3×25 5.412 52 6200
2YSL(St)CYK-J 3×185 + 3×35 6.969 57 7500
2YSL(St)CYK-J 3×240 + 3×50 8.540 62 9610

SPECIAL FEATURES
