Scheepskabel

RFE-FRHF (i) 250V

DownloadDatasheet PDF RFE-FRHF (i) 250V Armoured and individually screened instrumentation and communication cable 250V Application: For fixed installation in most... read more

Beschrijving

Download
Datasheet PDF

RFE-FRHF (i) 250V

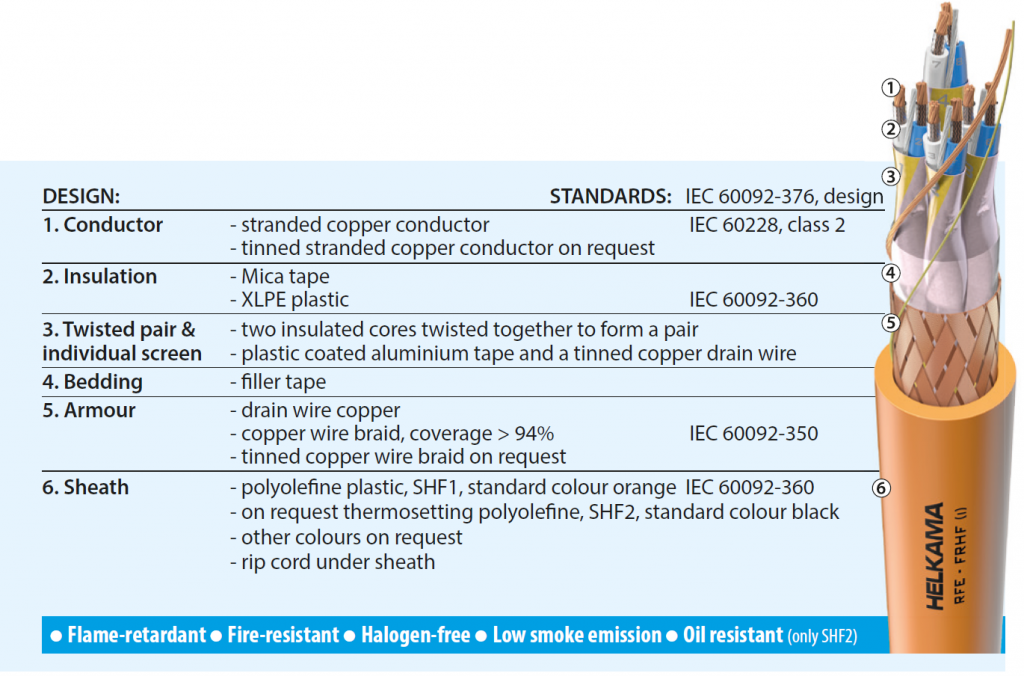

Armoured and individually screened instrumentation and communication cable 250V

Application: For fixed installation in most areas and on open deck in ships and off shore units. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Main characteristics
Rated voltage 150/250V (300V)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant IEC 60331-1 or IEC 60331-2
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Electrical data: 0,75mm2 1,5mm2 Unit
Loop resistance of pair, max. / +20°C 52 24,4 ohm/km
Pair capacitance, nom. / 1 KHz 55 75 nF/km
Loop inductance, nom. 0,6 0,7 mH/km
Insulation resistance / +20°C ≥1500 ≥1500 Mohm/km
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section



Part number Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Min. bending radius fixed installation
mm
20546 1x2x0,5 9,5 120 55
20548 2x2x0,75 Quad 11,0 170 65
20550 2x2x0,75 14,0 215 85
20552 4x2x0,75 16,5 345 100
20554 7x2x0,75 20,0 495 120
20556 8x2x0,75 21,0 545 125
20558 10x2x0,75 24,5 675 145
20560 12x2x0,75 25,5 770 155
20562 14x2x0,75 27,0 865 165
20563 16x2x0,75 29,0 970 175
20564 19x2x0,75 31,0 1105 185
20566 24x2x0,75 35,0 1370 210
20603 1x2x1,5 10,5 160 65
20604 2x2x1,5 Quad 12,0 225 70
20605 2x2x1,5 16,0 315 95
20607 4x2x1,5 19,0 470 115
20609 7x2x1,5 22,5 710 135
20611 8x2x1,5 24,0 795 145
20613 10x2x1,5 27,5 970 165
20615 12x2x1,5 29,0 1130 175
20617 14x2x1,5 31,0 1275 185
20619 16x2x1,5 33,0 1430 200
20621 19x2x1,5 35,5 1640 215

Other sizes on request.

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
