RFE-EMC 250V

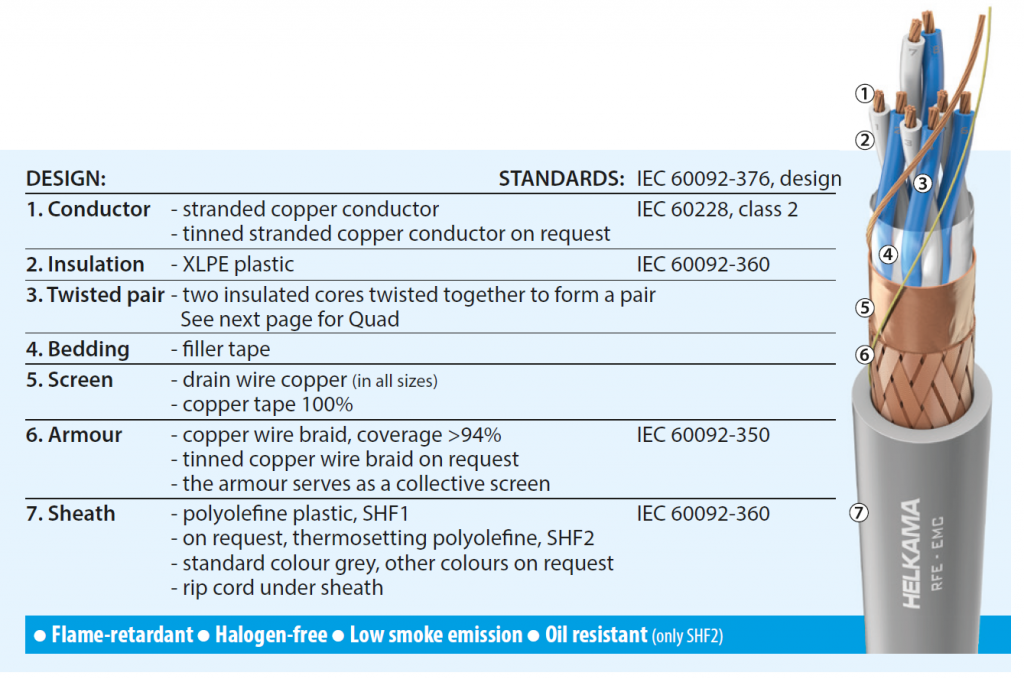

Armoured pair instrumentation and communication cable with improved collective EMC screening 250V

Application: For fixed installation in most areas and on open deck in ships and off shore units. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended. Design to meet requirements for improved EMC screening properties.

Main characteristics
Rated voltage 150/250V (300V)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Transfer impedance IEC 61196-1 (typical value 26dB over 1mΩ/m at 100MHz [20mΩ/m])
Electrical data: 0,5mm2 0,75mm2 1,5mm2 Unit
Loop resistance of pair, max. / +20°C 80 52 24,4 ohm/km
Pair capacitance, nom. / 1 KHz 55 50 60 nF/km
Loop inductance, nom. 0,6 0,6 0,7 mH/km
Insulation resistance / +20°C ≥1500 ≥1500 ≥1500 Mohm/km
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section
Part number Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Min. bending radius fixed installation
mm
21968 1x2x0,5 8,5 95 50
21969 1x3x0,5 8,5 130 50
21970 2x2x0,5 Quad 9,0 140 55
21971 2x2x0,5 10,5 140 65
21972 3x2x0,5 11,0 155 65
21973 4x2x0,5 12,0 195 75
21974 7x2x0,5 14,0 250 85
21975 8x2x0,5 15,0 280 90
21976 10x2x0,5 16,0 325 95
21977 12x2x0,5 16,5 360 100
21978 14x2x0,5 18,0 405 105
21979 16x2x0,5 18,5 440 110
21980 19x2x0,5 20,0 495 120
21981 24x2x0,5 22,0 595 130
21982 27x2x0,5 23,5 670 140
21983 30x2x0,5 24,0 725 145
21984 32x2x0,5 25,0 755 150
21985 37x2x0,5 26,5 840 160
21987 1x2x0,75 9,0 110 55
21988 1x3x0,75 9,5 150 55
21989 2x2x0,75 Quad 10,0 160 60
21990 2x2x0,75 12,5 185 75
21991 3x2x0,75 13,0 210 75
21992 4x2x0,75 14,0 240 85
21993 7x2x0,75 16,0 330 95
21994 8x2x0,75 17,0 365 100
21995 10x2x0,75 19,0 435 115
21996 12x2x0,75 19,5 480 120
21997 14x2x0,75 21,0 545 125
21998 16x2x0,75 22,0 595 130
21999 19x2x0,75 23,5 675 140
22000 24x2x0,75 26,5 840 160
22001 27x2x0,75 27,5 915 165
22002 30x2x0,75 29,0 990 175
22003 32x2x0,75 29,5 1055 180
22004 37x2x0,75 31,5 1175 190
22375 1x2x1,5 11,0 160 65
22376 1x3x1,5 11,5 195 70
22377 2x2x1,5 Quad 12,5 240 75
22378 2x2x1,5 15,5 270 90
22379 3x2x1,5 16,5 325 100
22380 4x2x1,5 17,5 385 105
22381 7x2x1,5 21,0 560 125
22382 8x2x1,5 22,0 630 135
22383 10x2x1,5 25,5 775 150
22384 12x2x1,5 26,5 875 160
22385 14x2x1,5 28,5 995 170
22386 16x2x1,5 30,0 1100 180
22387 19x2x1,5 32,0 1275 195
22388 24x2x1,5 36,0 1565 215

Other sizes on request.

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
