Polyurethaankabel

H05 BQ-F / H07 BQ-F

DownloadDatasheet PDF H05 BQ-F / H07 BQ-F PUR – insulated cable APPLICATION For use outdoors and in dry rooms, under... read more

Beschrijving

Download
Datasheet PDF

H05 BQ-F / H07 BQ-F

PUR – insulated cable

APPLICATION
For use outdoors and in dry rooms, under high mechanical loads. For agricultural and commercial applian-ces. Excellent abrasion and notch resistance. High radiation resistance. Ideal as a supply line for hand-held devices and drills. The combination of the flexible rubber core insulation and robust PUR sheath guarantees a long service life. PUR is resistant to microbes, hydrolysis, UV radiation, ozone, oxygen, oils, grease, petrol, water and atmospheric influences. Free from paint-coating substances.

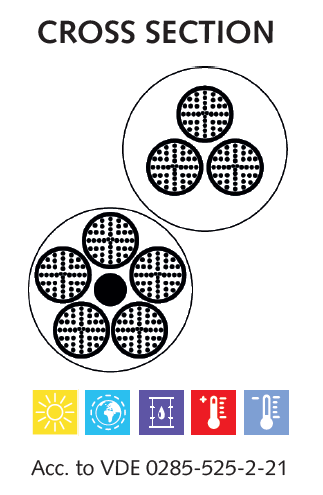

STRUCTURE
Conductor: Bare copper conductor, design structure according to DIN VDE 0282 part 10. Conductor structure according to VDE 0295 and HD 383 class 5, cores stranded in layers
Cores: Rubber insulation
Outer sheath: Polyurethane according to VDE 282 part 10

TECHNICAL DATA
Nominal voltage:
H05 BQ-F: 300/500 V / H07 BQ-F: 450/750 V
Test voltage: H05 BQ-F: 2000 V / H07 BQ-F: 2500 V
Operating temperature: -40°C to +90°C
Max. operating temperature: +90°C
Min. installation temperature: -30°C
Max. installation temperature: +80°C
Min. bending radius: Moving 12 x cable diameter

TESTS ACCORDING TO DIN VDE 0282 PART 10 AND HD 22.10.S1:
Oil resistance:
According to HD 505.21
Cold resistance: According to HD 505.1.4
Hydrolysis resistance: HD 22.10
Ozone resistance: According to HD 505.2.1 and HD 22.2





Product description Cu weight Outer Ø (mm) Weight (kg/km)
H05 BQ-F 2×0.75 14.4 6.5 53
H05 BQ-F 2×1 19.0 7.0 60
H07 BQ-F 2×1.5 29.0 8.5 91
H07 BQ-F 2×2.2 48.0 9.0 101
H07 BQ-F 2×4.0 77.0 10.6 154
H07 BQ-F 2×6.0 116.0 11.8 232
H07 BQ-F 2×10.0 192.0 15.6 343
H07 BQ-F 2×16.0 308.0 17.9 554
H05 BQ-F 3G0.75 21.6 7.0 65
H05 BQ-F 3G1 29.0 7.5 72
H07 BQ-F 3G1.5 43.0 9.0 110
H07 BQ-F 3G2.5 72.0 11.0 160
H07 BQ-F 3G4.0 115.0 11.3 264
H07 BQ-F 3G6.0 173.0 12.8 346
H07 BQ-F 3G10.0 288.0 16.8 500
H07 BQ-F 3G16.0 461.0 19.5 830
H05 BQ-F 4G0.75 29.0 8.0 82
H05 BQ-F 4G1 38.0 8.5 91
H07 BQ-F 4G1.5 58.0 11.0 143
H07 BQ-F 4G2.2 96.0 12.5 200
H07 BQ-F 4G4.0 154.0 12.7 277
H07 BQ-F 4G6.0 230.0 14.2 414
H07 BQ-F 4G10.0 384.0 18.6 691
H07 BQ-F 4G16.0 614.0 21.3 1106
H05 BQ-F 5G0.75 36.0 7.6 100
H05 BQ-F 5G1 48.0 9.0 112
H07 BQ-F 5G1.5 72.0 11.0 170
H07 BQ-F 5G2.2 120.0 13.5 260
H07 BQ-F 5G4.0 192.0 14.1 345
H07 BQ-F 5G6.0 288.0 15.7 518
H07 BQ-F 5G10.0 480.0 20.4 864
H07 BQ-F 5G16.0 768.0 23.7 1382
H07 BQ-F 7G1.5 101.0 13.2 260

SPECIAL FEATURES

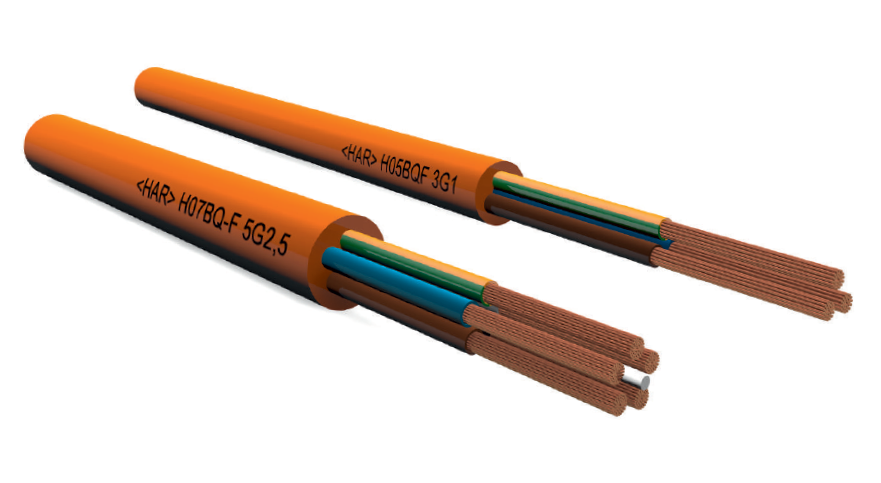

Sheath colour:

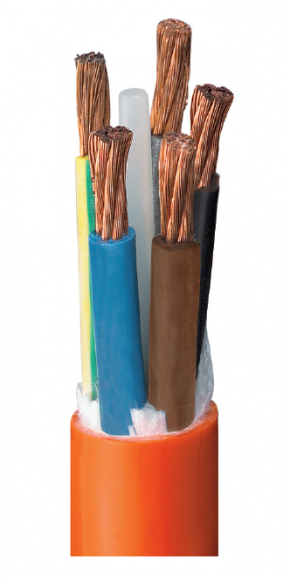

Orange with inscription: H05 BQ-F/H07 BQ-F
