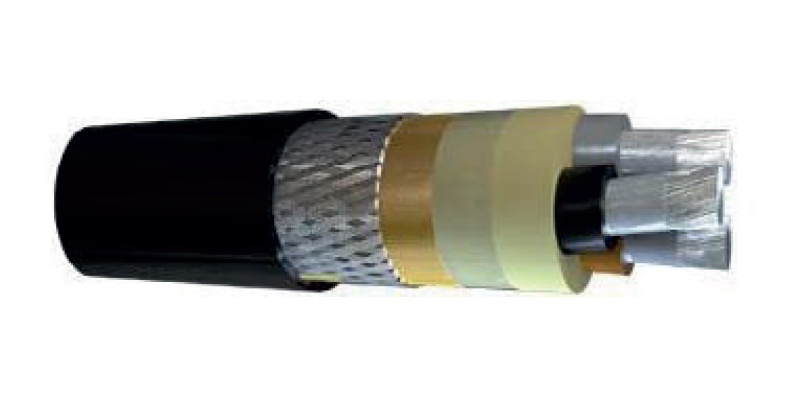

EMC DREDGEFLEX 3 kV
Temperature rating: 90°C
Uo/U (Um): 1,8/3 (3,6) kV Norm
Test voltage: 6,5 kV
Conductor: IEC 60228,5
Insulation: EN 50363,5
Inner jacket: EN 50363,10-2
Outer jacket: EN 50363,10-2
Flame properties: IEC 60332-1
Flame properties: IEC 60332-3-24
USE:
The cable is manufactured with an outer jacket of PUR which has good resistance against salt water. Cable inner jacket material, PUR has very good mechanical properties which can withstand high mechanical stresses and good flexibility as it is normal for such use.
The cable comes normally with class 5 tinned wire conductor which makes it flexible and easy to work with, it can be delivered also in class 6, extra flexible.
Conductor: Class 5 or 6 flexible Conductor, tinned
Insulation of conductor: XLPE
Color of insulation: White
Inner Sheath: Halogen free compound, TPE
Metallic screen: Copper wire braid with helically wrapped copper tape
Outer sheath: Halogen free, flame retardant compound PUR
Color of jacket: Black, or customer choice
Temp range, operation: -30 to+85 fixed installation
Bending radius: ODx12
Conductor cross section (mm²) | Insulation Thickness (mm) | Conductor Diameter (mm) | Inner sheath Thickness (mm) | Outer sheath Thickness (mm) | Outer Diameter (mm) | Weight (Kg/km) | Packing |
1x 120 | 2,0 | 18,8 | 1,0 | 1,8 | 24,3±1,0 | 1400 | Drum |
3x 70 | 2,0 | 15,0 | 1,2 | 2,3 | 41,2±1,5 | 2960 | Drum |
3x 95 | 2,0 | 16,8 | 1,4 | 2,4 | 45,4±1,5 | 3870 | Drum |
