Polyurethane cable

BUFLEX M 0.6/1(1.2)kV

DownloadDatasheet PDF BUFLEX M 0.6/1(1.2)kV with 2 pilot cores Maximum conductor temperature : 90°C Design 1 Conductor Flexible bare copper... read more

Beschrijving

Download
Datasheet PDF

BUFLEX M 0.6/1(1.2)kV

with 2 pilot cores

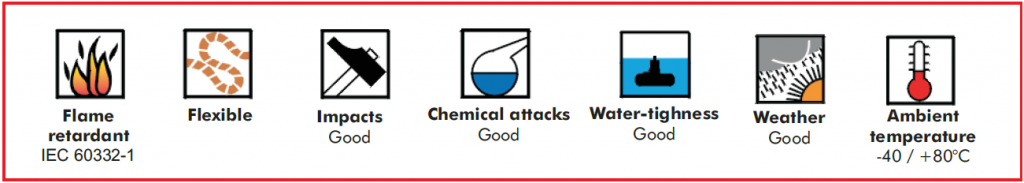

Maximum conductor temperature : 90°C

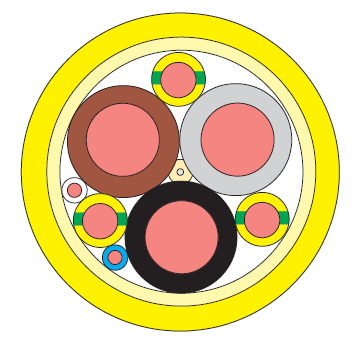

Design

1 Conductor
Flexible bare copper
Class 5 (IEC 60228)

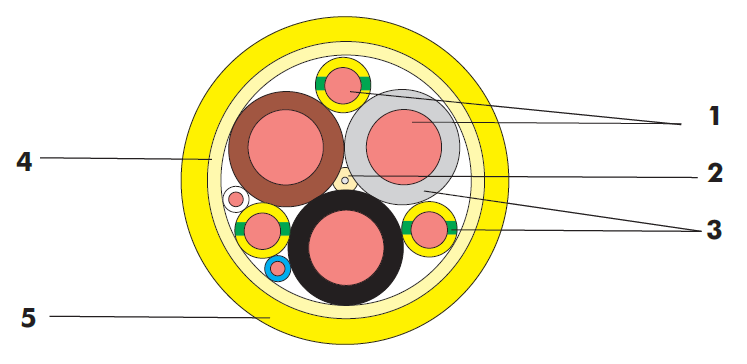

4 Inner sheath
Polyurethane thermoplastic compound
2 Central strenght member3 Insulation
XLPE (cross linked polyethylene)
5 Outer sheath
Flame retardant polyurethane
(oil and UV resistant)
Colour : Yellow
Cores identificationPhase cores : brown – black – grey
Earth cores : yellow/green
Pilot cores : white – blue
Laying up with two pilot cores

Dimensions

Cable Outer diam. Weight Minimum bending radius
(mm²) Min. (mm) Max. (mm) approx. (kg/km) static (mm) dynamic (mm)
3×25+3G6+2x1x1 21,5 24,0 1200 144 192
3×35+3G6+2x1x1.5 25,0 28,0 1600 168 224
3×50+3G10+2x1x1.5 29,0 32,0 2100 192 256
3×70+3G16+2x1x1.5 34,0 37,0 3000 222 296
3×95+3G16+2x1x1.5 39,0 42,0 3900 252 336
3×120+3G25+2x1x1.5 42,0 46,5 4900 279 372
3×150+3G25+2x1x1.5 48,5 52,0 6000 312 416
3×185+3G35+2x1x1.5 53,5 56,0 7400 336 448
3×240+3G50+2x1x1.5 61,5 64,5 9600 387 516
