H07 RN-F / TITANEX PREMIUM

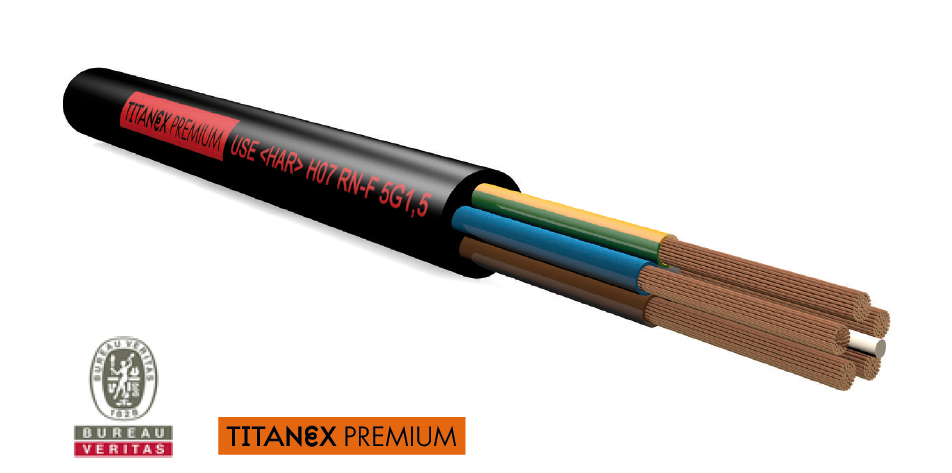

Flexible rubber cable

APPLICATION
Heavy rubber-insulated cable for various applications involving high mechanical and thermal loads. Fulfils the requirements of H07RN8-F for continual use in water (AD8), H07BN4-F for operating temperatures of 90°C and H07BB-F for extremely low ambient temperatures (up to -50°C static and up to -40°C dynamic). Halogen free and, therefore, suitable for use in fire risk areas (IEC 60332-1). Use at up to 1000 V when permanently installed or supplying power to motors. Application areas: port cranes, mobile machines on public construction sites, portable professional tools. Heavy duty applications in harbours, on ships (Bureau Veritas cert. 26673/AO BV IEC 60092-350/351/353/359; IEC 60228, IEC 60332-1-2, IEC 60811), on drilling platforms, in road tunnels and at train stations and airports.

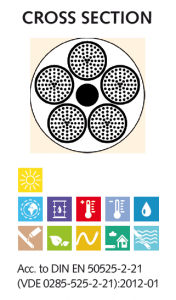

STRUCTURE
Conductor: Copper conductor, bare, flexible (class 5) according to DIN VDE 0295 and IEC 60228 cl. 5, HD 383
Cores: Special cross-linked elastomer insulation
Outer sheath: Special cross-linked elastomer with high mechanical properties, LSOH

TECHNICAL DATA
Nominal voltage: 450 V/750 V
Test voltage: 2500 V
Conductor temperature: Fixed installation: max. +85°C
Short-circuit temperature: Max. +250°C on the conductor
Operating temperature: -50°C to +90°C
Max. operating temperature: +90°C
Installation temperature: Min. -40°C
Min. bending radius: 6-8 x cable diameter

CONDUCTOR MARKING

SPECIAL FEATURES

Properties:
Water resistant
Oil and grease resistant
Halogen free
Salt water resistant
Waste water resistant
UV resistant
Sheath colour: Black
