Neopreenkabel

TITANEX 90°C H07 RN-F

DownloadDatasheet PDF TITANEX 90°C H07 RN-F Flexible rubber cable Industrial fl exible cable, insulation and outer sheath in elastomer. Oil... read more

Beschrijving

Download
Datasheet PDF

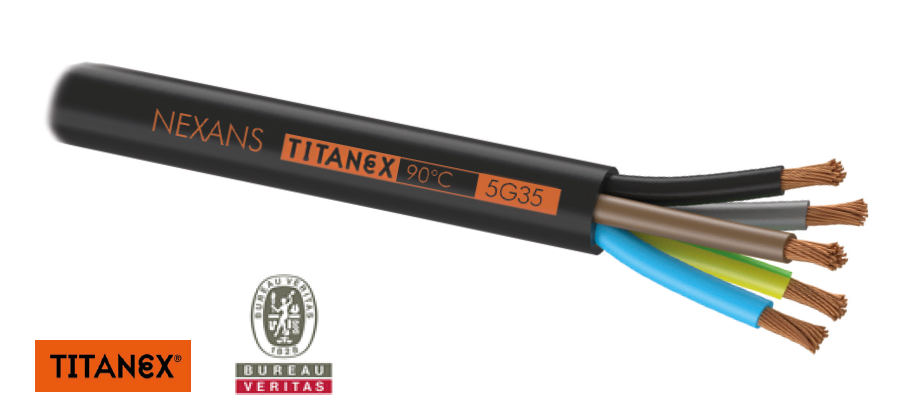

TITANEX 90°C H07 RN-F

Flexible rubber cable

Industrial fl exible cable, insulation and outer sheath in elastomer.
Oil resistant, fl ame retardant according to IEC/EN 60332-1-2 standard. H07RN-F

APPLICATION
The TITANEX® flexible rubber cable range off ers exceptional performances and is designed to release you from all your constraints. Robust yet fl exible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fi xed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.
TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.
The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances – machine tools – etc.

INSTALLATION
This cable can be installed in open air or be buried but with extra mechanical protection.

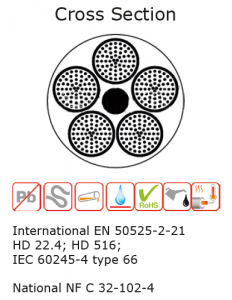

STRUCTURE
Conductor: Copper conductor, bare, fl exible (class 5) according to DIN VDE 0295 and IEC 60228 cl. 5, HD 383
Cores: Cross-linked elastomer insulation
Outer sheath: Cross-linked elastomer with high mechanical properties

TECHNICAL DATA
Nominal voltage:
450V/750V
Test voltage: 2500 V
Conductor resistance: According to DIN VDE 0295 cl. 5
Conductor temperature: fixed and protected installation: 90°C, mobile installation: 60°C
Short-circuit temperature: max.+200°C on the conductor
Operating temperature: -25°C to +55°C
Min. bending radius: 6 to 8x cable outer diameter
Dynamic use: 3x outer cable diameter if the outer diam is < or =12mm
Static use: 4x outer cable diameter if the outer diam is >12mm.
Permanent tensile loading: (total copper cross section in mm2) max. 15N/mm2
Silicon free: yes

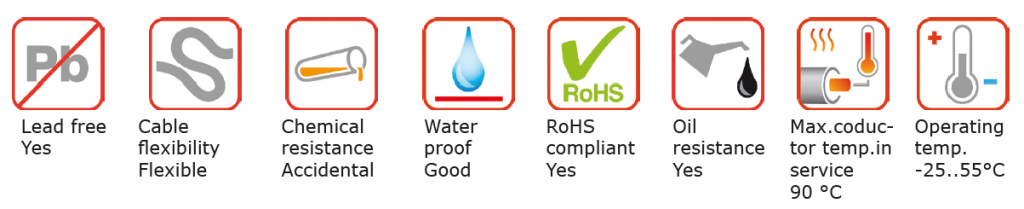

TESTS ACCORDING TO DIN VDE 0472 AND IEC:
Flammability:
Test method B according to VDE 0472 part 804 and IEC 332-1
Oil resistance: Test method A acc. to VDE 0472 part 803 or test method C acc. to part 805A1
Ozone resistance:Test method A according to VDE 0472 part 805

CONDUCTOR MARKING

number of conductors with green-yellow conductor with green-yellow conductor
1 black
2 brown + blue
3* green-yellow + brown + blue brown + black + grey
3** blue + brown + black
4 green-yellow + brown + black + grey blue + brown + black + grey
5 green-yellow + blue + brown + black + grey blue + brown + black + grey + black
> 5 white printed numbers + 1 green-yellow white printed numbers
* for cables without green/yellow, with one cross section >4mm²
** for the cables without green/yellow, with a cross section of 1,5mm² & 2,5mm²
Item
H07 RN-F
max.current
(A) 90°C
current
rating open
air (A)
Voltage drop
(V/A.km)
Cu weight Outer diameter
min.(mm) – max.(mm)
weight (kg/km)
1×1,5 24 14,4         7,1 50
1×2,5 33 24,0         7,9 66
1×4 45 38,0         9,0 94
1×6 58 58 5,90 58,0 7,9 – 9,8 109
1×10 80 80 3,40 96,0 9,5 – 11,9 182
1×16 107 107 2,20 154,0 10,8 – 13,4 256
1×25 138 138 1,40 240,0 12,7 – 15,8 369
1×35 169 169 1,04 336,0 14,3 – 17,9 482
1×50 207 207 0,75 480,0 16,5 – 20,6 662
1×70 268 268 0,56 672,0 18,6 – 23,3 895
1×95 328 328 0,44 912,0 20,8 – 26,0 1144
1×120 382 382 0,36 1152,0 22,8 – 28,6 1430
1×150 441 441 0,31 1440,0 25,2 – 31,4 1740
1×185 506 506 0,28 1776,0 27,6 – 34,4 2160
1×240 599 599 0,23 2304,0 30,6 – 38,3 2730
1×300 693 693 0,20 2880,0 33,5 – 41,9 3480
2×1
2×1,5 26 26 27 29,0 8,5 – 11,0 111
2×2,5 36 36 16,2 48,0 10,2 – 13,2 161
2×4 49 49 10,1 77,0 11,8 – 15,1 238
2×6 63 63 6,7 115,0 13,1 – 16,8 279
2×10 86 86 3,8 192,0 17,7 – 22,6 538
2×16 115 115 2,5 308,0 20,2 – 25,7 744
3G1 20 39,4 29,0 8,3 – 10,7 117
3G1,5 26 26 27,0 43,0 9,2 – 11,9 134
3G2,5 36 36 16,2 72,0 10,9 – 14,0 195
3G4 49 49 10,1 115,0 12,7 – 16,2 290
3G6 63 63 7,0 173,0 14,1 – 18,0 346
3G10 86 86 4,0 288,0 19,1 – 24,2 663
3G16 115 115 2,5 461,0 21,8 – 27,6 924
3G25 149 720,0
3G35 185 185 1,21 1008,0 29,3 – 37,1 1760
3G50 225 225 0,87 1440,0 34,1 – 42,9 2390
3G70 289 289 0,64 2016,0 38,4 – 48,3 3110
3G95 352 352 0,5 2736,0 43,3 – 54,0 4170
3G120 410 3456,0 5078
4G1 18 34,08 38,0 9,6 – 12,0 144
4G1,5 23 23 23,3 58,0 10,2 – 13,1 165
4G2,5 31 31 14,0 96,0 12,5 – 15,5 245
4G4 42 42 8,71 154,0 14,0 – 18,0 357
4G6 54 54 5,84 230,0 15,7 – 20,0 443
4G10 75 75 3,42 384,0 20,8 – 26,5 818
4G16 100 100 2,20 614,0 23,8 – 30,1 1150
4G25 127 127 1,44 960,0 28,9 – 36,6 1700
4G35 158 158 1,04 1344,0 32,5 – 41,1 2180
4G50 192 192 0,75 1920,0 37,7 – 47,5 3030
4G70 246 246 0,56 2688,0 42,7 – 54,0 3990
4G95 298 298 0,44 3648,0 48,4 – 61,0 5360
4G120 346 346 0,36 4608,0 53,0 – 66,0 6500
4G150 395 395 0,31 5760,0 58,0 – 73,0 7990
4G185 450 7104,0 9912
5G1,5 23 23 23,6 72,0 11,2 – 14,4 238
5G2,5 31 31 14,0 120,0 13,3 – 17,0 297
5G4 42 42 8,72 192,0 15,6 – 19,9 453
5G6 54 54 5,84 288,0 17,5 – 22,2 557
5G10 75 75 3,43 480,0 22,9 – 29,1 1001
5G16 100 100 2,20 768,0 26,4 – 33,3 1430
5G25 127 127 1,44 1200,0 32,0 – 40,4 2096
5G35 158 158 1,04 1680,0 35,6 – 45,1 2690
5G50 192 192 1,04 2400,0 41,8 – 53,0 3840
5G70 246 246 0,56 3360,0 47,5 – 60,0 4996
7G1,5 17 23,3 101,0 14,7 – 18,7 349
7G2,5 21 13,9 168,0 17,1 – 21,8 487
12G1,5 12 23,3 173,0 17,6 – 22,1 510
12G2,5 16 13,9 288,0 20,6 – 26,2 702
14G1,5 202,0 600
18G1,5 10 20,7 259,0 20,7 – 26,3 730
18G2,5 14 13,9 432,0 24,4 – 30,9 1018
19G1,5 274,0 819
19G2,5 456,0 1170
24G1,5 346,0 1005
24G2,5 576,0 1380
27G1,5 385,0 1077
27G2,5 638,0 1521
36G1,5 518,0 1260
36G2,5 864,0 1862
37G1,5 533,0 1370

SPECIAL ATTRIBUTES
Coating colour: Black
Standards: International EN 50525-2-21; HD 22.4; HD 516; IEC 60245-4 type 66; National NF C 32-102-4
Bureau Veritas Marine & Offshore Approval: 18999/C0 BV:
IEC 60092-350 (2014)
IEC 60092-353 (2016)
IEC 60092-360 (2014)
IEC 60811 (2012)
