Flexibele PVC Kabel

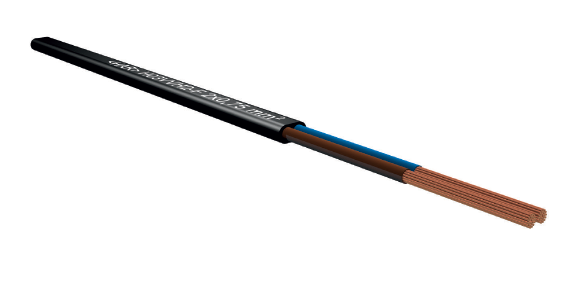

H03 VVH2-F Eca

DownloadDatasheet PDF H03 VVH2-F Eca PVC flat cable APPLICATION For very low mechanical loads in households, kitchens, offices and for... read more

Beschrijving

Download
Datasheet PDF

H03 VVH2-F Eca

PVC flat cable

APPLICATION
For very low mechanical loads in households, kitchens, offices and for the connection of light electrical appliances. Not suitable for cooking and heating appliances.



Structure
Conductor Flexible copper stranded wire according to VDE 0295 cl. 5
Insulation sheath According to VDE 0207 part 4 type Y12
Core colour Blue/brown
Outer sheath Sheath compound according to VDE 0207 part 5 type YM2



Technical data
Nominal voltage 300 V
Test voltage 2000 V
Maximum permissible operating voltage in rotary-phase and single-phase alternating current systems Uo/U 330/330 V
Direct current systems Uo/U 495/495 V



Product description Cu weight Outer Ø (mm) Weight (kg/km)
H03VVH2-F 2×0.75 Light PVC flat cable 14,4 3.8 x 6.3 36

SPECIAL FEATURES

Sheath colour
White , black
