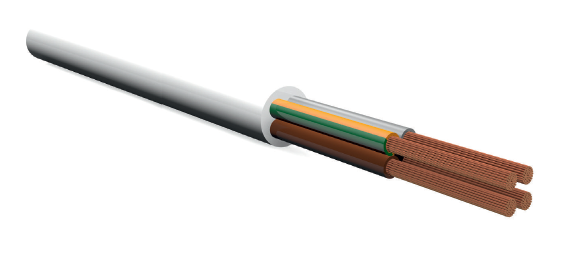

H05 VV-F Eca

PVC insulated cord

APPLICATION
For connections subjected to medium mechanical loads, such as for connecting washing machines, spin dryers, tumble dryers and cooking and heating appliances without a major heat influence. Not suitable for outdoor use.



Structure
Conductor Copper stranded wire, bare, flexible; cores concentrically stranded in layers, according to DIN VDE 0281 part 5
Cores PVC insulation according to VDE 0207 part 4, colour-coded or label-led with imprinted digits according to VDE 0293
Outer sheath PVC according to VDE 0207 part 5



Technical data
Nominal voltage 300 V/500 V
Test voltage 2000 V
Insulation resistance 20 MOhm x km at 20°C
Operating temperature -40°C to +70°C
Max. operating temperature +70°C
Min. installation temperature -5°C
Max. installation temperature +70°C
Min. bending radius 10 x cable diameter



Product description Cu weight Outer Ø (mm) Weight (kg/km)
H05VV-F 2×1 White 19 08 65
H05VV-F 2×1 Black 19 08 65
H05VV-F 2×1.5 White 29 08 90
H05VV-F 2×1.5 Black 29 08 90
H05VV-F 2×2.5 White 48 10,6 130
H05VV-F 2×2.5 Black 48 10,6 130
H05VV-F 3G0.75  White 21,6 6,6 62
H05VV-F 3G0.75  Black 21,6 6,6 62
H05VV-F 3G1 White 29 7,2 79
H05VV-F 3G1 Black 29 7,2 79
H05VV-F 3G1.5 White 43 8,5 115
H05VV-F 3G1.5 Black 43 8,5 115
H05VV-F 3G1.5 Grey 43 8,5 115
H05VV-F 3G2.5 White 72 9,7 175
H05VV-F 3G2.5 Black 72 9,7 175
H05VV-F 3G2.5 Grey 72 9,7 175
H05VV-F 4G0.75  White 29 8,3 75
H05VV-F 4G0.75  Black 29 8,3 75
H05VV-F 4G1 White 38 09 90
H05VV-F 4G1 Black 38 09 90
H05VV-F 4G1.5 White 58 11 145
H05VV-F 4G1.5 Black 58 11 145
H05VV-F 4G1.5 Grey 58 11 145
H05VV-F 4G2.5 White 96 12,5 198
H05VV-F 4G2.5 Black 96 12,5 198
H05VV-F 4G2.5 Grey 96 12,5 198
H05VV-F 5G0.75  White 36 9,3 95
H05VV-F 5G0.75  Black 36 9,3 95
H05VV-F 5G1 White 48 9,8 112
H05VV-F 5G1 Black 48 9,8 112
H05VV-F 5G1.5 White 72 10,6 173
H05VV-F 5G1.5 Black 72 10,6 173
H05VV-F 5G1.5 Grey 72 10,6 173
H05VV-F 5G2.5 White 120 12,7 259
H05VV-F 5G2.5 Black 120 12,7 259
H05VV-F 5G2.5 Grey 120 12,7 259

SPECIAL FEATURES

Sheath colour
Black, white or grey with inscription
