Flexibele PVC Kabel

H03 VV-F

DownloadDatasheet PDF H03 VV-F PVC insulated cord APPLICATION For connections subject to low mechanical loads, such as the connection of... Lees meer

Beschrijving

Download
Datasheet PDF

H03 VV-F

PVC insulated cord

APPLICATION
For connections subject to low mechanical loads, such as the connection of light electrical appliances (radios, lights, vacuum cleaners, kitchen appliances etc.). Not, however, suitable for heating and cooking appliances or outdoor use.

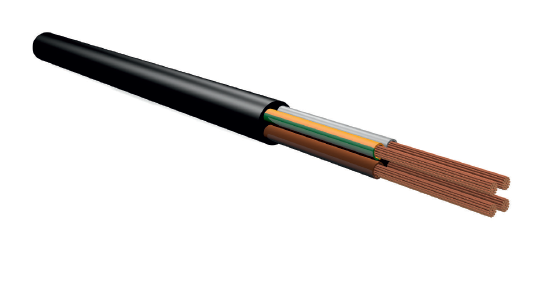

Structure
Conductor Copper stranded wire, bare, flexible/cores concentrically stranded in layers, according to DIN VDE 0281 part 5
Cores PVC insulation according to VDE 0207 part 4, colour-coded or label-led with imprinted digits according to VDE 0293
Outer sheath PVC according to VDE 0207 part 5



Technical data
Nominal voltage 300 V/300 V
Test voltage 2000 V
Insulation resistance 20 MOhm x km at 20°C
Operating temperature -40°C to +70°C
Max. operating temperature +70°C
Min. installation temperature -5°C
Max. installation temperature +70°C
Min. bending radius 10 x cable diameter



Product description Cu weight Outer Ø (mm) Weight (kg/km)
H03VV-F 2X0.75 White 14,4 5,6 46
H03VV-F 2X0.75 Black 14,4 5,6 46
H03VV-F 3G0.75 White 21,6 06 55
H03VV-F 3G0.75 Black 21,6 06 55
H03VV-F 4G0.75 White 29 6,5 69
H03VV-F 4G0.75 Black 29 6,5 69

SPECIAL FEATURES

Sheath colour
Black or white with inscription, additional colours on request
