RFA-FRHF(i)+WSR/WJR 250V
DownloadDatasheet PDF RFA-FRHF(i)+WSR/WJR 250V Fire Resistant + Water Spray Resistant and/or Water Jet Resistant collectively and individually screened instrumentation and... read more
Description
RFA-FRHF(i)+WSR/WJR 250V

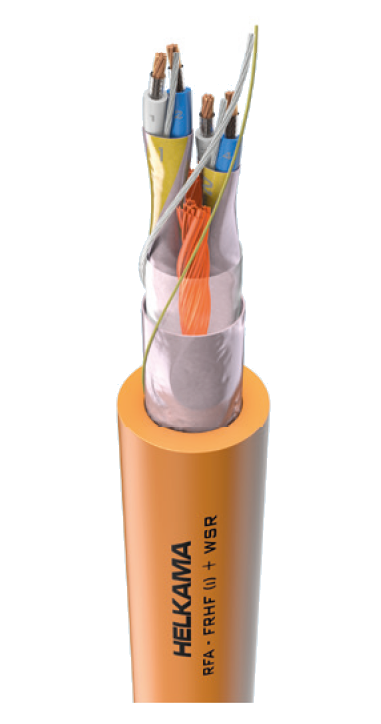

Fire Resistant + Water Spray Resistant and/or Water Jet Resistant collectively and individually screened instrumentation and communication cable 250 V
Application: For fixed installation in most areas and on open deck in ships and off shore units. Especially intended to ensure the availability of all critical transportation-, comfort- and safety systems, i.e. to meet the concepts of; Orderly Evacuation (3 hours burning time) and Safe Return to Port (Fire test with simultaneous Water Spray / Water Jet + mechanical shocks) to simulate the firefighting conditions.
If the cable is exposed to direct sunlight, we recommend cable with black outer sheath or a protective covering.

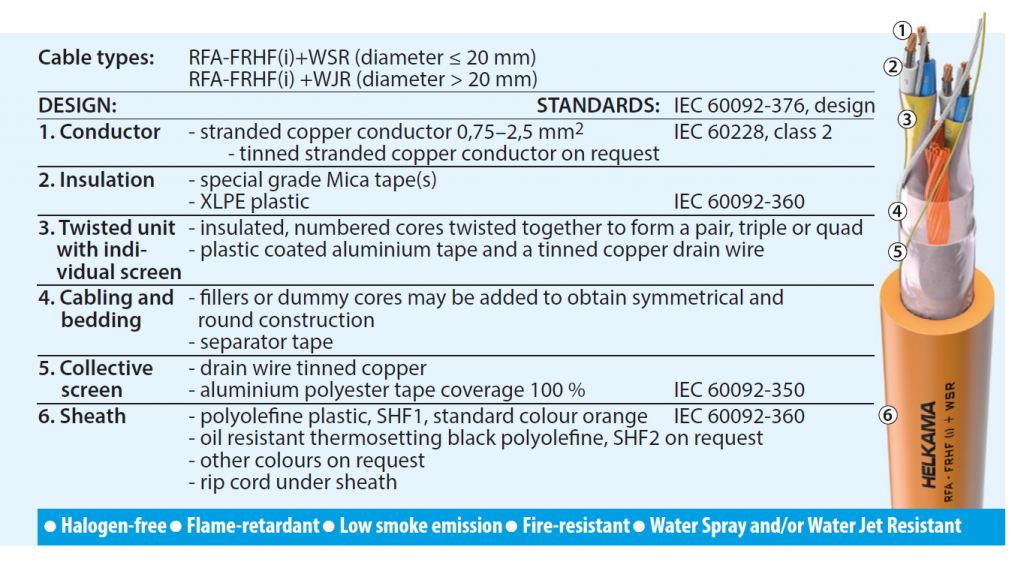

| Main characteristics | |
| Rated voltage | 150/250V (300V) |
| Halogen-free | IEC 60754 series |
| Flame-retardant | IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A |
| Smoke emission | IEC 61034 series |
| Fire- and Water Spray Resistant | IEC 60331-2 (180 min test) + EN 50200:2015 Annex E (diameter ≤ 20 mm) |
| Fire- and Water Jet Resistant | IEC 60331-1 (180 min test) + BS 8491:2008 (diameter > 20 mm) |
| Oil resistance (only SHF2) | IEC 60811-404 conditions according to 60092-360/SHF2 |
| For details see general information section | |
| Electrical data: | 0,75mm2 | 1,5mm2 | Unit |
| Loop resistance of pair, max. / +20°C | 52 | 24,4 | ohm/km |
| Pair capacitance, nom. / 1 KHz | 55 | 75 | nF/km |
| Loop inductance, nom. | 0,6 | 0,7 | mH/km |
| Insulation resistance / +20°C | ≥1500 | ≥1500 | Mohm/km |
| Recommended minimum bending radius (fixed installation): 4 x outer diameter of the cable | |
| Temperature rating: | Maximum conductor temperature + 90 °C Fixed installation -40 °C to +80 °C Minimum recommended installation temperature -15 °C |
| For details see general information section | |
| Part number | Number of conductors & cross-section n x mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Min. bending radius fixed installation mm |
| 620664 | 1x2x0,75 | 8,5 | 80 | 50 |
| 620666 | 2x2x0,75 Quad | 9,5 | 110 | 55 |
| 620667 | 2x2x0,75 | 13,0 | 155 | 80 |
| 620669 | 4x2x0,75 | 15,5 | 235 | 90 |
| 620671 | 7x2x0,75 | 18,5 | 365 | 110 |
| 620673 | 8x2x0,75 | 20,0 | 415 | 120 |
| 620675 | 10x2x0,75 | 23,0 | 525 | 140 |
| 620677 | 12x2x0,75 | 24,0 | 600 | 145 |
| 620679 | 14x2x0,75 | 25,5 | 680 | 155 |
| 620681 | 16x2x0,75 | 27,5 | 775 | 165 |
| 620683 | 19x2x0,75 | 29,5 | 895 | 175 |
| 620685 | 24x2x0,75 | 33,5 | 1135 | 200 |
| 620686 | 30x2x0,75 | 37,0 | 1390 | 220 |
| 621550 | 1x2x1,5 | 9,0 | 105 | 55 |
| 621552 | 2x2x1,5 Quad | 11,0 | 170 | 65 |
| 621553 | 2x2x1,5 | 14,5 | 230 | 90 |
| 621555 | 4x2x1,5 | 17,5 | 345 | 105 |
| 621557 | 7x2x1,5 | 21,0 | 545 | 125 |
| 621559 | 8x2x1,5 | 23,0 | 635 | 135 |
| 621561 | 10x2x1,5 | 26,5 | 800 | 160 |
| 621563 | 12x2x1,5 | 27,5 | 920 | 165 |
| 621565 | 14x2x1,5 | 29,5 | 1050 | 175 |
| 621567 | 16x2x1,5 | 31,5 | 1205 | 190 |
| 621569 | 19x2x1,5 | 34,0 | 1415 | 205 |
Other sizes on request.
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxxxxxxx
