LKMSM-FRHF

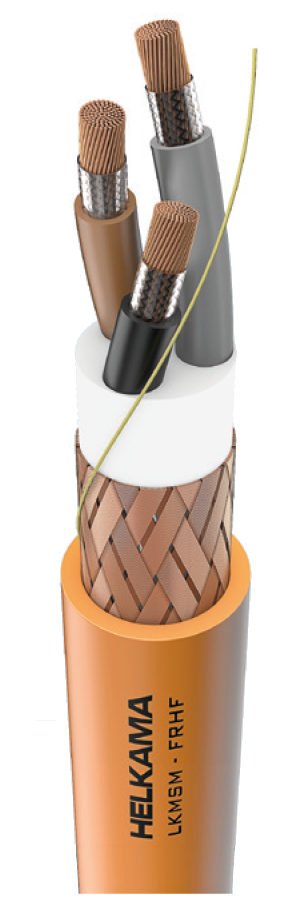

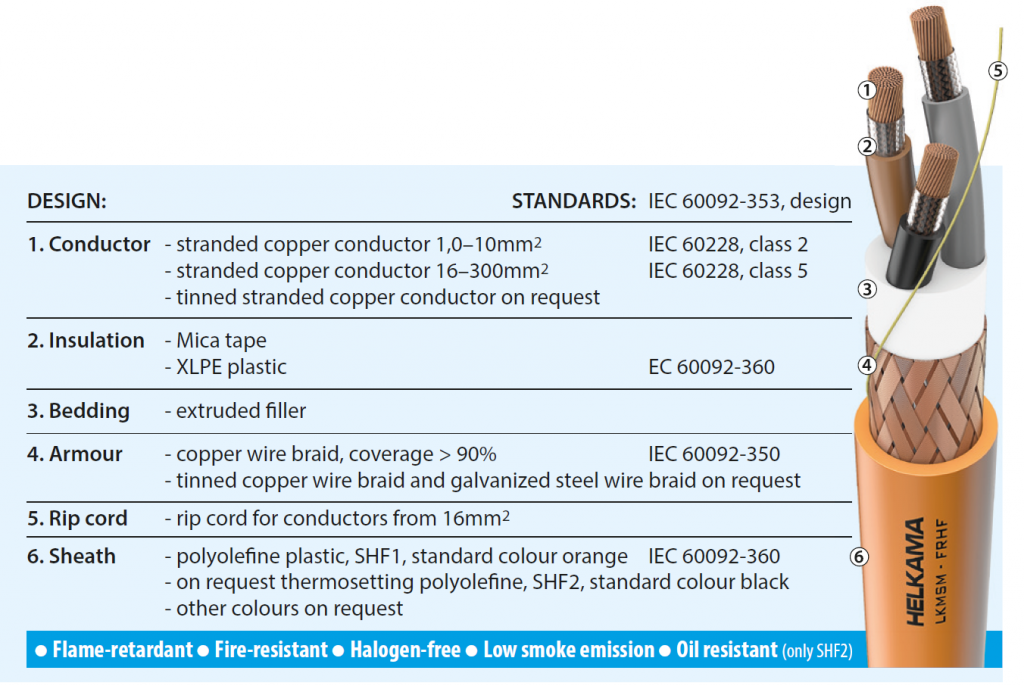

Fire-resistant armoured power cable with extruded filler 0,6/1kV

Application: For fixed installation in most areas and on open deck in ships and off shore units. If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV)
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable
IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant IEC 60331-1 or IEC 60331-2
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Oil resistance (only SHF2) IEC 60811-404 conditions according to 60092-360/SHF2
Temperature rating: Maximum conductor temperature + 90 °C
Fixed installation -40 °C to +80 °C
Minimum recommended installation temperature -15 °C
For details see general information section
Part number
Normal
G-type Number of conductors & cross-section
n x mm2
Cross-section of armour
mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Current Rating A
at +45°C
Min. bending radius fixed installation
mm
29720 2×1,5 5,3 13,0 215 20 75
29721 2×2,5 5,8 13,0 255 26 80
29722 2×4 6,6 15,0 315 34 90
29723 2×6 9,8 16,5 410 44 95
29719 2×10 11,4 18,0 550 61 110
29720 2×16 Flex 13,0 20,5 690 80 125
29721 2×25 Flex 16,1 25,5 980 105 150
29722 2×35 Flex 17,2 26,5 1270 130 160
29723 2×50 Flex 20,0 30,5 1675 167 185
29732 29733 3×1,5 5,7 13,5 245 16 80
29734 29735 3×2,5 6,3 14,0 300 21 85
29736 29737 3×4 9,4 16,0 395 28 95
29738 29739 3×6 10,4 16,5 490 36 100
29740 29741 3×10 12,1 19,0 675 50 115
29743 29744 3×16 Flex 13,9 21,5 860 66 130
29745 29746 3×25 Flex 17,1 27,0 1240 86 160
29747 29748 3×35 Flex 18,4 29,0 1605 107 170
29749 29750 3×50 Flex 21,4 33,0 2145 137 195
29751 29752 3×70 Flex 25,2 38,5 2960 168 230
29753 29754 3×95 Flex 38,3 42,5 3820 199 255
29755 29756 3×120 Flex 42,7 46,5 4740 232 280
29757 29758 3×150 Flex 48,9 53,0 5940 267 320
29767 29768 4×1,5 6,2 14,5 290 16 85
29769 29770 4×2,5 6,7 15,0 350 21 90
29771 29772 4×4 10,3 16,5 465 28 100
29773 29774 4×6 11,4 18,0 595 36 110
29775 29776 4×10 13,3 21,5 825 50 125
29777 29778 4×16 Flex 15,3 24,0 1075 66 145
29779 29780 4×25 Flex 18,9 29,5 1540 86 175
29781 29782 4×35 Flex 20,4 31,0 2000 107 190
29783 29784 4×50 Flex 23,7 36,0 2720 137 220
29785 29786 4×70 Flex 38,4 42,0 3815 168 255
29787 29788 4×95 Flex 42,5 46,5 4845 199 280
29789 29790 4×120 Flex 47,7 52,5 6045 232 315
29801 29802 5×1,5 6,7 15,5 335 13 90
29803 29804 5×2,5 10,1 17,0 435 17 100
29805 29806 5×4 11,2 18,0 555 23 110
29807 29808 5×6 12,5 19,5 700 30 120
29809 29810 5×10 14,6 22,5 985 42 135
29811 29812 5×16 Flex 16,8 26,0 1305 55 160
29813 29814 5×25 Flex 20,9 31,5 1900 71 190

Other sizes on request.

G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5

Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
