Scheepskabel

RFE-SHF2 (i) 120°C 250V

DownloadDatasheet PDF RFE-SHF2 (i) 120°C 250V Armoured and individually screened instrumentation and communication cable 250V Application: For fixed installation in... read more

Beschrijving

Download
Datasheet PDF

RFE-SHF2 (i) 120°C 250V

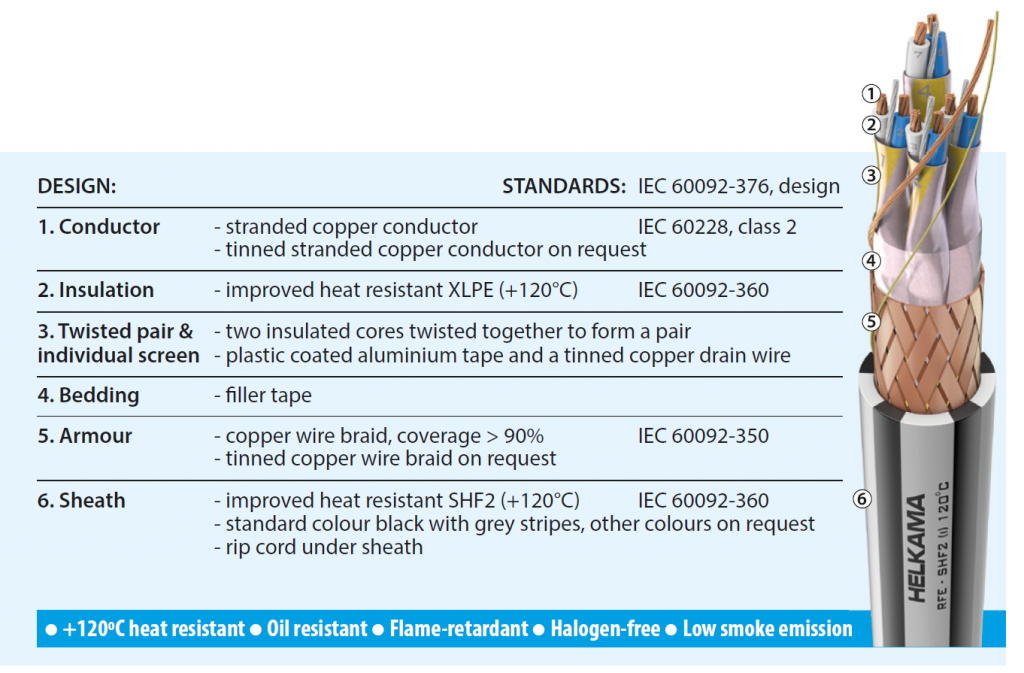

Armoured and individually screened instrumentation and communication cable 250V

Application: For fixed installation in most areas and on open deck in ships or on oil rigs and various industrial use. Excellent resistance against weathering, ozone, UV-rays, Oil / Diesel oil. Typical Marine, Oil, Gas and Petrochemical applications are for example Ship Engine rooms, power plants and/or other areas where ambient temperature may exceed +80°C, which is the limit for traditional IEC 60092-cables.

Main characteristics
Rated voltage 150/250V (300V)
Oil resistance IEC 60811-404 conditions according to 60092-360
Halogen-free IEC 60754 series
Flame-retardant IEC 60332-1-2 Test for single insulated wire and cable
IEC 60332-3-22 Test for bunched wires and cables, category A
Smoke emission IEC 61034 series
Temperature rating: Fixed installation: -40 ºC to +120 ºC
Occasionally moved: -20 ºC to +120 ºC
Max. conductor temperature: +120 ºC
Electrical data: 0,5mm2 0,75mm2 1,5mm2 Unit
Loop resistance of pair, max. / +20°C 80 52 24,4 ohm/km
Pair capacitance, nom. / 1 KHz 55 70 90 nF/km
Loop inductance, nom. 0,6 0,6 0,7 mH/km
Insulation resistance / +20°C ≥1500 ≥1500 ≥1500 Mohm/km

For details see general information section

Part number Number of conductors & cross-section
n x mm2
Nominal outer diameter
mm
Approximate weight
kg/km
Min. bending radius fixed installation
mm
4122338 1x2x0,5 7,0 85 40
4122342 2x2x0,5 Quad 7,5 110 45
4122344 2x2x0,5 9,5 135 60
4122346 3x2x0,5 10,0 165 60
4122348 4x2x0,5 11,0 195 65
4122350 7x2x0,5 13,0 285 75
4122352 8x2x0,5 13,5 345 80
4122354 10x2x0,5 15,5 420 95
4122356 12x2x0,5 16,5 485 100
4122358 14x2x0,5 17,5 535 105
4122360 16x2x0,5 18,5 590 110
4122362 19x2x0,5 19,5 690 120
4122364 24x2x0,5 22,0 840 135
4122366 27x2x0,5 23,0 925 140
4122368 30x2x0,5 24,0 1005 145
4122370 32x2x0,5 24,5 1070 150
4122372 37x2x0,5 26,5 1205 160
4122006 1x2x0,75 7,5 90 45
4122008 2x2x0,75 Quad 8,5 135 50
4122010 2x2x0,75 11,0 160 65
4122012 4x2x0,75 13,0 225 75
4122014 7x2x0,75 15,5 355 95
4122016 8x2x0,75 16,5 400 100
4122018 10x2x0,75 18,5 495 110
4122020 12x2x0,75 19,5 555 115
4122022 14x2x0,75 21,0 620 125
4122024 19x2x0,75 23,5 790 140
4122026 24x2x0,75 26,0 985 155
4122050 1x2x1,5 10,0 145 60
4122052 2x2x1,5 Quad 11,0 170 65
4122054 2x2x1,5 14,5 200 85
4122056 4x2x1,5 17,0 250 105
4122058 7x2x1,5 20,5 405 120
4122060 8x2x1,5 22,0 605 130
4122062 10x2x1,5 25,0 690 150
4122064 12x2x1,5 26,0 840 155
4122066 14x2x1,5 28,0 955 170
4122068 19x2x1,5 32,0 1090 195
4122070 24x2x1,5 36,0 1425 215

Other sizes on request.
