Hittebestendige kabel

SIAF

Download Datasheet PDF SIAF Flexible silicon wire Application For wiring lights and switchgears. Used in areas where temperature fluctuations cause... read more

Beschrijving

Download
Datasheet PDF

SIAF

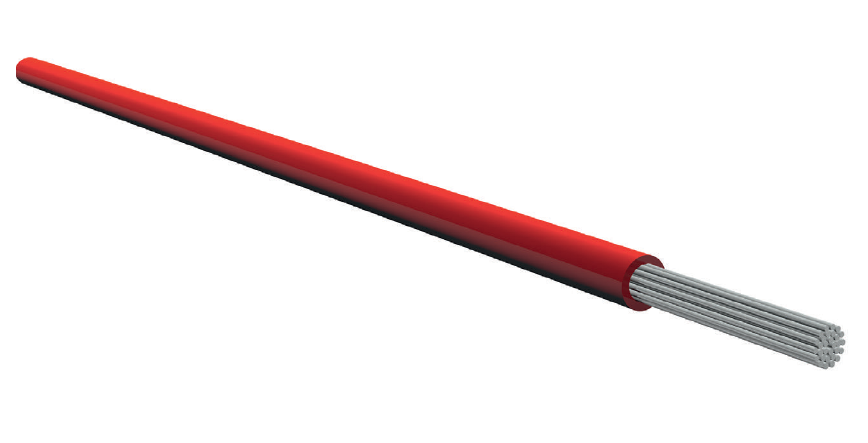

Flexible silicon wire

Application
For wiring lights and switchgears. Used in areas where temperature fluctuations cause conventional PVC-in- sulated cables to become brittle or cracked. They are resistant to vegetable and animal fats, many oils and diluted acids. The insulation is protected against humidity and resistant to oxygen and ozone. One outstan- ding property is the high flashpoint. If the cable sets on fire, an insulating layer of silicone dioxide remains on the conductor to prevent a short circuit.
Structure

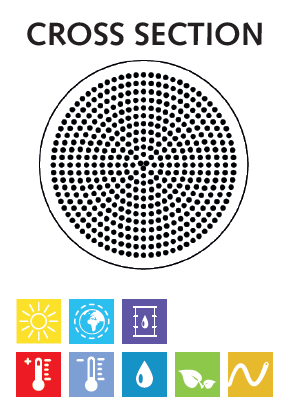

Conductor                                 Flexible copper conductor, tin plated, according to VDE 0295
Cores                                          Silicone rubber insulation
Technical Data
Nominal voltage                          500 V
Test voltage                                  2000 V
Temperature range                    -60°C to + 180°C
Tests according to DIN VDE 0472 and IEC:
Flammability                                No fire propagation
Halogen-free nature                    According to VDE 0472

Special Features
Properties
Halogen free
Tin-plated copper

Product description Cu weight Outer Ø (mm) Weight (kg/km)
SIAF 0.5 Black 4.8 2.1 8.5
SIAF 0.5 Green/yellow 4.8 2.1 8.5
SIAF 0.5 White 4.8 2.1 8.5
SIAF 0.5 Red 4.8 2.1 8.5
SIAF 0.5 Brown 4.8 2.1 8.5
SIAF 0.5 Blue 4.8 2.1 8.5
SIAF 0.75 Black 7.2 2.4 11.8
SIAF 0.75 Green/yellow 7.2 2.4 11.8
SIAF 0.75 White 7.2 2.4 11.8
SIAF 0.75 Red 7.2 2.4 11.8
SIAF 0.75 Brown 7.2 2.4 11.8
SIAF 0.75 Blue 7.2 2.4 11.8
SIAF 1.0 Black 9.6 2.5 13.5
SIAF 1.0 Green/yellow 9.6 2.5 13.5
SIAF 1.0 White 9.6 2.5 13.5
SIAF 1.0 Red 9.6 2.5 13.5
SIAF 1.0 Brown 9.6 2.5 13.5
SIAF 1.0 Blue 9.6 2.5 13.5
SIAF 1.5 Black 14.4 2.8 18.5
SIAF 1.5 Green/yellow 14.4 2.8 18.5
SIAF 1.5 White 14.4 2.8 18.5
SIAF 1.5 Red 14.4 2.8 18.5
SIAF 1.5 Brown 14.4 2.8 18.5
SIAF 1.5 Blue 14.4 2.8 18.5
SIAF 2.5 Black 24.0 3.4 30.0
SIAF 2.5 Green/yellow 24.0 3.4 30.0
SIAF 2.5 White 24.0 3.4 30.0
SIAF 2.5 Red 24.0 3.4 30.0
SIAF 2.5 Brown 24.0 3.4 30.0
SIAF 2.5 Blue 24.0 3.4 30.0
SIAF 4.0 Black 38.4 4.2 47.3
SIAF 4.0 Green/yellow 38.4 4.2 47.3
SIAF 4.0 White 38.4 4.2 47.3
SIAF 4.0 Red 38.4 4.2 47.3
SIAF 4.0 Brown 38.4 4.2 47.3
SIAF 4.0 Blue 38.4 4.2 47.3
SIAF 6.0 Black 57.6 5.2 71.2
SIAF 6.0 Green/yellow 57.6 5.2 71.2
SIAF 6.0 White 57.6 5.2 71.2
SIAF 6.0 Red 57.6 5.2 71.2
SIAF 6.0 Brown 57.6 5.2 71.2
SIAF 6.0 Blue 57.6 5.2 71.2
