Hittebestendige kabel

SIHF

DownloadDatasheet PDF SIHF Silicon insulated cable Application These heat and cold-resistant silicone hose cables are used as moving connection cables... read more

Beschrijving

Download
Datasheet PDF

SIHF

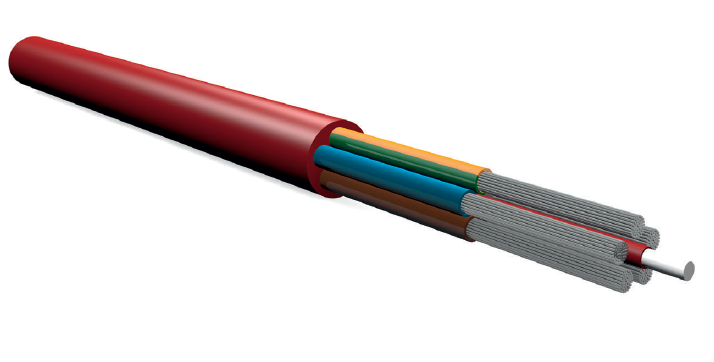

Silicon insulated cable

Application
These heat and cold-resistant silicone hose cables are used as moving connection cables for devices subject to the influence of high temperatures and ambient temperatures of -60°C to +180°C. They can temporarily withstand temperatures of up to +250°C. They are suitable for headlights, heating appliances, rolling mills and thermal power plants, as well as for use as moving connection cables. They are resistant to vegetable and animal fats. The insulation is protected against humidity and resistant to ozone and oxygen. One outstanding property is the high flashpoint. If the cable sets on fire, an insulating layer of silicone dioxide remains on the conductor to help prevent a short circuit.

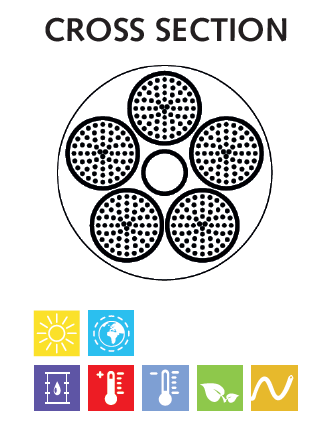

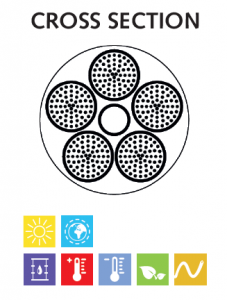

Structure
Conductor                                Tin-plated copper stranded wire, flexible, design structure according to DIN VDE 0295 class 5, cores concentrically stranded in layers
Cores                                        Silicone rubber, coloured up to 5-cored or black from 6-cored with imprinted digits according to VDE 0293
Outer Sheath                           Silicone rubber according to VDE 0207 part 21
Technical Data
Nominal voltage                           300 V/500 V
Test voltage                                   50 Hz: 2.000 V
Insulation resistance                   At 20°C min.: 20 MOhm x km
Operating temperature              -60°C to +180°C
Min. installation temperature   -25°C
Max. installation temperature  +180°C
Min. bending radius                    7.5 x cable diameterTests according to DIN VDE 0472 and IEC:
Flammability                                 Test method B according to VDE 0472 part 804 and IEC 332-1
Halogen-free nature                    According to VDE 0472 part 814 and IEC 331

Special Features
Properties
Halogen free
Tin-plated copper
Sheath colour
Auburn



Product description Cu weight Outer Ø (mm) Weight (kg/km)
SIHF-O 2×0.75 14.0 6.4 53
SIHF-O 2×1 19.0 6.6 64
SIHF-O 2×1.5 28.8 7.6 77
SIHF-O 2×2.5 48.0 7.5 80
SIHF 3×0.75 21.6 6.8 64
SIHF 3×1 29.0 6.6 79
SIHF 3×1.5 43.0 8.0 98
SIHF 3×2.5 72.0 9.7 152
SIHF 4×0.75 29.0 7.8 84
SIHF 4×1 38.0 8.0 95
SIHF 4×1.5 58.0 8.8 122
SIHF 4×2.5 96.0 10.6 189
SIHF 4×4 154.0 13.1 295
SIHF 4×6 230.0 15.2 442
SIHF 4×10 385.0 20.0 707
SIHF 4×16 615.0 24.3 987
SIHF 4×25 960.0 27.7 1557
SIHF 4×35 1344.0 30.5 2025
SIHF 5×0.75 36.0 8.5 101
SIHF 5×1 48.0 8.8 116
SIHF 5×1.5 72.0 9.6 148
SIHF 5×2.5 120.0 11.6 229
SIHF 5×4 192.0 14.4 359
SIHF 5×6 288.0 17.7 535
SIHF 7×0.75 50.0 9.2 125
SIHF 7×1 67.0 9.5 144
SIHF 7×1.5 100.8 10.4 202
SIHF 7×2.5 168.0 12.6 293
SIHF 10×1.5 144.0 14.6 283
SIHF 12×1.5 173.0 13.6 320
SIHF 16×1.5 231.0 16.2 446
SIHF 18×1.5 260.0 16.8 478
SIHF 20×1.5 288.0 17.5 566
SIHF 24×1.5 346.0 19.8 722
