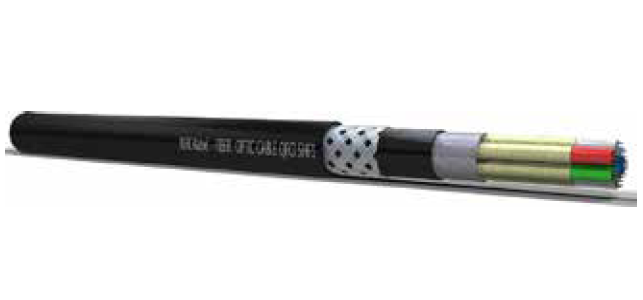

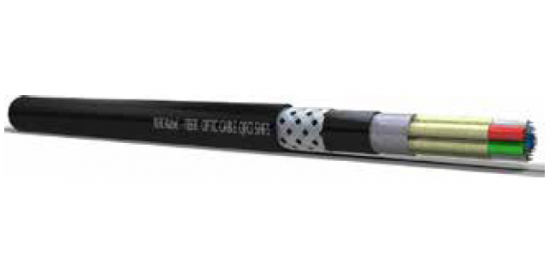

QFCI-I/O/RM-JM

Armoured SHF1
Indoor and outdoor, loose tube
4, 8 , 12, 24 or 48 fibers

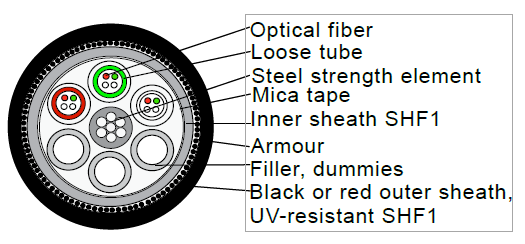

Construction:
No. of fiber:
2 1-Red (with 2-OF) 4-Filler
2-Filler 5-Filler
3-Filler 6-Filler
4 1-Red (with 2-OF) 4-Filler
2-Green (with 2-OF) 5-Filler
3-Filler 6-Filler
8 1-Red (with 4-OF) 4-Filler
2-Green (with 4-OF) 5-Filler
3-Filler 6-Filler
12 1-Red (with 4-OF) 4-Filler
2-Green (with 4-OF) 5-Filler
3-Natural (with 4-OF) 6-Filler
24 1-Red (with 6-OF) 4-Nat. (with 6-OF)
2-Green (with 6-OF) 5-Filler
3-Natural (with 6-OF) 6-Filler
48 1-Red (with 12-OF) 4-Nat. (with 12-OF)
2-Green (with 12-OF) 5-Filler
3-Natural (with 12-OF) 6-Filler

Loose tube diam.: 2.2mm

Color of fiber: 1-white
2-red
3-yellow
4-green
5-blue
6-grey
7-brown
8-black
9-violet
10-turquise
11-orange
12-pink

Inner Jacket: Black SHF1 Ø=10,1mm
Armour alt. 1: Galvanised steel wire braid
Armour alt. 2: Tinned copper wire braid
Armour alt. 3: Bronze wire braid
Outer Jacket: Black SHF1 Ø=13.5mm
Weight: 260 kg/km

Application:
Optical cable for indoor and outdoor use in vital communication  and emergency systems that need to be operational during fire.  The cable is designed to ensure operation for more than 3 hours in fires up to 1000ºC. The cable is halogen free and flame retardant to protect against secondary damage to electronic equipment during and after fire. Outer sheath is made from black UV-stabilized and weather resistant material and may be exposed for shorter periods to fluids such as diesel, petrol, glycol, ethanol, white sprite and ASTM oil 2. The resistance to these fluids is according to DOD- STD-1678, method 8030.The cable is reinforced with a steel wire braiding. The fibres are protected in jelly filled loose tubes stranded around a central strength member to ensure optimum performance and long life. Each fiber and loose tube is color coded for easy identification during splicing and termination. The outer sheath is marked to show fibre type and cable type.

Temperature installed: -40 to +70 [°C]
Temperature @ installation: -10 to +60 [°C]
Tensile installed (IEC 60794-1-2E1): 500 [N]
Tensile @ installation: 1500 [N]
Crush (IEC 60794-1-2E3): 3000 [N/10cm]
Impact (IEC 60794-1-2E4): 30 [J]
Torsion (IEC 60794-1-2E7): ±1 [turn/m]
Min.bending diam. fixed: 15 x outer diam
Min.bending diam. flexible: 20 x outer diam

Norms:
Chemical resistance: IEC 60811-2-1 (Mineral oils)
Fire and smoke: IEC 60331-25, BP-236, IEC 61034, IEC 60332-3 catA and C, IEC 60754-1, IEC 60754/2
MUD resistant acc. to: NEK TS 606

Approval: DNV CERTIFICATE NO. E-11775
Date                 Rev.
16.03.2015      1                                               Armour



Multimode fibres MM 62.5
IEC 60793-2-10
Type A1b
Telecordia GR-20-core
MM50 ITU-T G651.1
IEC 60793-2-10
Type A1a.1 Telecordia GR-20-core
MM50-OM3 ISO/IEC 11801
IEC 60793-2-10
Type A1a.2 Telecordia GR-20-core
MM50-OM4
ISO/IEC 11801
IEC 60793-2-10
Type A1a.2 Telecordia GR-20-core
ITU-T type G 651
Core Diameter mm 62.5 ± 2 50 ± 2 50 ± 2 50 ± 2
Core non-circularity % <_ 5 <_ 5 <_ 5 <_ 5
Cladding Diameter mm 125 ± 1,0 125 ± 1,0 125 ± 1,0 125 ± 1,0
Coating Diameter mm 245 ± 5 242 ± 5 242 ± 5 242 ± 5
Cladding non-circularity % 0,7 0,7 0,7 0,7
Core/cladding concentricity error mm <_ 1,0 <_ 1,0 <_ 1,0 <_ 1,0
Coating/cladding concentricity error mm <_ 10 <_ 6 <_ 6 <_ 6
Numerical Aperture mm 0.275 ± 0.015 0.200 ± 0.015 0.200 ± 0.015 0.200 ± 0.015
Proorf test kpsi >_ 100 >_ 100 >_ 100 >_ 100
Attenuation
Bandwith
at 850 nm db/km (max) <_ 3,5 <_ 2,8 <_ 2,8 <_ 2,8
at 1300 nm db/km (max) <_ 1,0 <_ 0,8 <_ 0,8 <_ 0,8
at 850 nm MHz x km >_ 200 >_ 500 >_ 1500 >_ 3500
at 1300 nm MHz x km >_ 500 >_ 500 >_  500 >_  500
Single mode fibres Single mode SMR 9/125/250 Single mode SMR LWP 9/125/250 Non-zero Dispersion
ITU-T type G652.B G652.D G655
Mode Field diameter
(MDF)
at 1310 nm mm 9.2 ± 0.4 9.2 ± 0.4
at 1550 nm mm 9.2 ± 0.5
Cladding Diameter mm 125 ± 1 125 ± 0.7 125 ± 1
Coating Diameter mm 245 ± 10 245 ± 5 245 ± 10
Attenuation at 1310 nm db/km (max) <_ 0.38 <_ 0.35
at 1383 nm db/km (max) <_ 0.33
at 1550 nm db/km (max) <_ 0.25 <_ 0.25 <_ 0.25
at 1625 nm db/km (max) <_ 0.28 <_ 0.28
Zero dispersion wavelength l0 1302 – 1322 1302 – 1322
Chromatic Disper-
sion
PDM
at 1285 – 1330nm ps/nm x km <_ 0.35 <_ 0.35
at 1550 nm ps/nm x km <_ 18.0 <_ 18.0
at 1530 – 1565
nm
ps/nm x km 5.5 to 10.0
at 1565 – 1625
nm
ps/nm x km 7.5 to 13.0
at 1550 nm ps/vkm <_ 0.20
