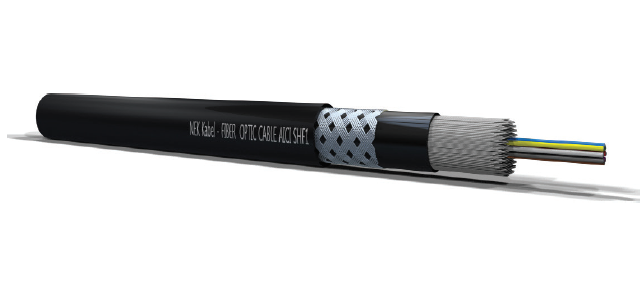

AICI Indoor and outdoor Armoured industrial cable, LSZH tight buffer



Application:
Optical  cable  for  industry  environments.  The  cable  is  suitable  for both  indoor  and  outdoor  use.  Continuos  submergence  in  water  is not recommended. Outer jacket made of UV- and weather resistant material may be exposed for shorter periods to fluids such as diesel and mineral oils (acc. to IEC 60811-2-1). The cable is reinforced with a steel wire braiding between the two jackets. Strength elements of glass yarn around the cable core allow easy installation of long lengths. The 0,9mm tight buffer is easy to strip allowing fast and reliable splicing and connector mounting. Each fibre is color coded for easy identification. Outer jacket is marked to show fibre type and cable type. The cable is DNV approved.
Specifications:
Temperature installed:                        -30 to +70  [°C]
Temperature @ installation:               -10 to +70  [°C]
Tensile perforemance IEC 60794-1-2-E1:
for 4 and 8 fibre:                                        1000  [N]
for 12 fibre:                                                 1500  [N]
for 24 fibre:                                                 2000  [N]
Crush, acc IEC 60794-1-2E3:                     2000  [N/10cm]
Impact, acc IEC 60794-1-2E4:                      1 impacts, 25J
Torsion, acc IEC 60794-1-2E7:                     ± 1 turns/1m
Water tightness acc. IEC 60794-1-2F5B:   < 3m/24hours
Min. bending radius fixed:                        15  x outer diam
Min. bending radius flexible:                    10  x outer diam
Cable bend (IEC 60794-1-2E11):                <0.5dB/±5 turn
Flexibility (IEC 60794-1-2E8):                     1000 cycles
Fire and smoke classifications:
IEC 60332-3-22 and IEC 60332-1-2 IEC 61034-1/2
IEC 60754-1/2
Chemical resistance:
Mineral oils – IRM 902 (IEC 60811-2-1):     7days/23°C
4hours/70°C
Diesel – IRM 903 (IEC 60811-2-1)                7days/23°C
4hours/70°C
Approvals:                   DNV- and ABS-certified

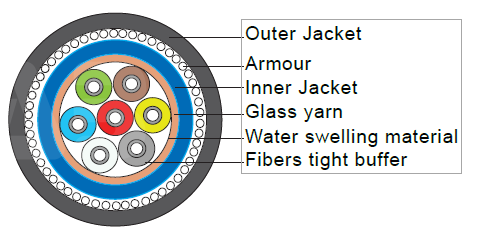

Construction:
Fibers:                           Tight buffer, Ø=0,9mm
Colour of tight:
1 – blue                 13 – blue with black ring
2 – orange            14 – orange with black ring
3 – green              15 – green with black ring
4 – brown              16 – brown with black ring
5 – grey                 17 – grey with black ring
6 – white               18 – white with black ring
7 – red                  19 – red with black ring
8 – black               20 – yellow with black ring
9 – yellow              21 – violet with black ring
10 – violet             22 – pink with black ring
11 – pink               23 – turquoise with black ring
12 – turquoise       24 – white with double black ring

No. of fibers: Diam. inner sheath Outer diam. Weight Tensile str. *
(inst./oper.)
[mm] [mm] [kg/km] [N]
4 5,2 8,5 105 700/250
8 6,0 9,4 125 800/350
12 6,7 10,3 145 1200/500
24 8,5 12,1 185 1700/750

* acc. IEC 60794-1-2E1

Filler:                             Glassyarn
Inner Jacket:                 Black LSZH compound, SHF1
Armour alt. 1:               Galvanised steel wire braid
Armour alt. 2:               Tinned copper wire braid
Armour alt. 3:               Bronze wire braid
Outer Jacket:                Black LSZH, UV-resist. compound, SHF1

Multimode fibres MM 62.5
IEC 60793-2-10
Type A1b Telecordia GR-20-core
MM50
ITU-T G651.1
IEC 60793-2-10
Type A1a.1 Telecordia GR-20-core
MM50-OM3 ISO/IEC 11801
IEC 60793-2-10
Type A1a.2 Telecordia GR-20-core
MM50-OM4
ISO/IEC 11801
IEC 60793-2-10
Type A1a.2 Telecordia GR-20-core
ITU-T type G 651
Core Diameter mm 62.5 ± 2 50 ± 2 50 ± 2 50 ± 2
Core non-circularity % <_ 5 <_ 5 <_ 5 <_ 5
Cladding Diameter mm 125 ± 1,0 125 ± 1,0 125 ± 1,0 125 ± 1,0
Coating Diameter mm 245 ± 5 242 ± 5 242 ± 5 242 ± 5
Cladding non-circularity % 0,7 0,7 0,7 0,7
Core/cladding concentricity error mm <_ 1,0 <_ 1,0 <_ 1,0 <_ 1,0
Coating/cladding concentricity error mm <_ 10 <_ 6 <_ 6 <_ 6
Numerical Aperture mm 0.275 ± 0.015 0.200 ± 0.015 0.200 ± 0.015 0.200 ± 0.015
Proorf test kpsi >_ 100 >_ 100 >_ 100 >_ 100
Attenuation
Bandwith
at 850 nm db/km (max) <_ 3,5 <_ 2,8 <_ 2,8 <_ 2,8
at 1300 nm db/km (max) <_ 1,0 <_ 0,8 <_ 0,8 <_ 0,8
at 850 nm MHz x km >_ 200 >_ 500 >_ 1500 >_ 3500
at 1300 nm MHz x km >_ 500 >_ 500 >_  500 >_  500
Single mode fibres Single mode SMR 9/125/250 Single mode SMR LWP 9/125/250 Non-zero Dispersion
ITU-T type G652.B G652.D G655
Mode Field diameter (MDF) at 1310 nm mm 9.2 ± 0.4 9.2 ± 0.4
at 1550 nm mm 9.2 ± 0.5
Cladding Diameter mm 125 ± 1 125 ± 0.7 125 ± 1
Coating Diameter mm 245 ± 10 245 ± 5 245 ± 10
Attenuation at 1310 nm db/km (max) <_ 0.38 <_ 0.35
at 1383 nm db/km (max) <_ 0.33
at 1550 nm db/km (max) <_ 0.25 <_ 0.25 <_ 0.25
at 1625 nm db/km (max) <_ 0.28 <_ 0.28
Zero dispersion wavelength l0 1302 – 1322 1302 – 1322
Chromatic Disper- sion
PDM
at 1285 – 1330nm ps/nm x km <_ 0.35 <_ 0.35
at 1550 nm ps/nm x km <_ 18.0 <_ 18.0
at 1530 – 1565
nm
ps/nm x km 5.5 to 10.0
at 1565 – 1625
nm
ps/nm x km 7.5 to 13.0
at 1550 nm ps/vkm <_ 0.20
