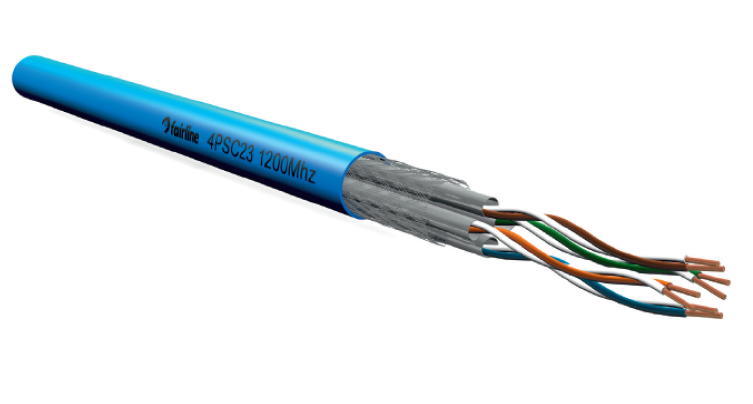

SFTP Cat 7 4x2xAWG23 1200 MHz LSOH

S/FTP 4x2xAWG23 1200 MHz RoHS Cat.7 Application Installation cable for use for structured building cabling in accordance with ISO/IEC 11801... Lees meer

Beschrijving

S/FTP 4x2xAWG23 1200 MHz

RoHS
Cat.7
Application
Installation cable for use for structured building cabling in accordance with ISO/IEC 11801 and EN 50173-2.
Ideally suited for all applications in classes D to F multimedia (video, data, voice), > 10 GbE according to IEEE
802.3, VoIP, POE

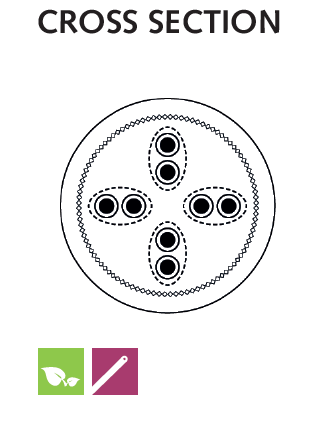

Structure
Conductor Solid copper conductor AWG23
Cores Foamed plastic insulation
Shield Single shielding from plastic-laminated aluminium foil, outer conducting surface (PIMF), overall braided shield, tin-plated copper mesh
Outer sheath Halogen-free outer sheath, outer diameter: 7.4 mm
Technical Data
Insulation resistance > 500 MOhm/km/500 V
Wave resistance 100 +- 5 Ohm/100 MHz
Loop resistance < 17 Ohm/100 m
Transfer impedance < 5 MOhm/m 10 MHz
NVP 80%
Delay skew ≤ 5 ns/100 m
NEXT 80 dB/1000 MHz     67 dB/1200MHz
ACR 28 dB/1000 MHz
RL 21 dB/1000 MHz     17 dB/1200MHz
Installation Recommendation:
min. bending radius Installation: 58 mm, operation: 29 mm
max. tensile stress 110 N
temperature Installation: 0°C to +50°C, operation: -20°C to +60°C
flame retardancy According to IEC 60332-3-24
halogen-free nature According to IEC 60754-2
smoke density According to IEC 61034
fire load (mJ/m) 0.6
legislative cross references EN 50173-1: 2011-09
ISO/IEC 11801
IEC 61156-5



Product description Cu weight Outer Ø ( mm) Weight (kg/km) Fire load (MJ/m)
Data cable S/FTP 4x2xAWG23 1200 MHz Cat.7 blue 37.0 7.4 70 0.60
Data cable S/FTP 4x2xAWG23 1200 MHz Cat.7 orange 37.0 7.4 70 0.60


Special Features:

Properties
Halogen free
Sheath colour
Orange or blue
