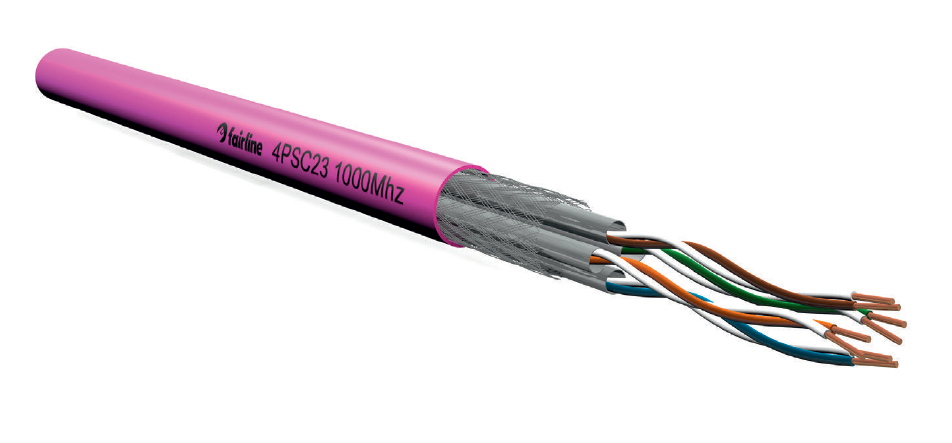

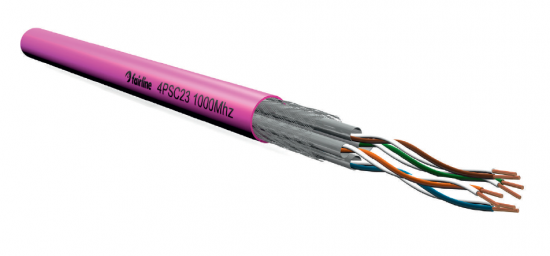

SFTP Cat 7 4x2xAWG23 1000 MHz LSOH

Download Datasheet PDF S/FTP 4x2xAWG23 1000 MHz RoHS Cat.7 Application Our 1000 MHz cable types exceed the legal requirements established... Lees meer

Beschrijving

Download
Datasheet PDF

S/FTP 4x2xAWG23 1000 MHz

RoHS
Cat.7
Application
Our 1000 MHz cable types exceed the legal requirements established in the standard for category 7 cables. They are designed for transmission rates of up to 1000 MHz and can be used for all structured cabling systems up to and including class F.
Structure
Conductor Solid copper conductor AWG23
Cores Foamed plastic insulation
Shield Single shielding from plastic-laminated aluminium foil, outer conducting surface (PIMF), overall braided shield, tin-plated copper mesh
Outer sheath Halogen-free outer sheath, outer diameter: 7.4 mm
Technical Data
Insulation resistance > 500 MOhm/km/500 V
Wave resistance 100 +- 5 Ohm/100 MHz
Loop resistance < 19 Ohm/100 m
Transfer impedance < 7m Ω /m 10 MHz
NVP 80%
Delay skew ≤ 5 ns/100 m
NEXT 81.3 dB/1000 MHz
ACR 21 dB/1000 MHz
RL 20 dB/1000 MHz
Installation Recommendation:
min. bending radius Installation: 60 mm, operation: 30 mm
max. tensile stress 110 N
temperature Installation: 0°C to +50°C, operation: -20°C to +60°C
flame retardancy According to IEC 60332-1-2
halogen-free nature According to IEC 60754-2
smoke density According to IEC 61034
fire load (mJ/m) 0.2
legislative cross references EN 50173-1: 2011-09
ISO/IEC 11801
IEC 61156-5



Product description Cu weight outer Ø ( mm) Weight (kg/km) fire load (mJ/m)
Data cable S/FTP 4x2xAWG23 1000 MHz Cat.7 magenta 34.0 7.4 55 0.20
Data cable S/FTP 4x2xAWG23 1000 MHz Cat.7 orange 34.0 7.4 55 0.20


Special Features:

Properties
Halogen free
Sheath colour
Orange or magenta
