Datakabel

SFTP Cat 5e 4x2x0.22 DNV MUD Protected

S/FTP Installation Cable for tougher environments Application Generic Data transmission. This Cat.5e S/FTP cable is based on our DNV and... Lees meer

Beschrijving

S/FTP Installation Cable for tougher environments

Application
Generic Data transmission. This Cat.5e S/FTP cable is based on our DNV and Lloyd Register certified ToughCat, but with an additional fire retardant, halogen-free, low smoke MUD protecting outer jacket. This cabel is meant for use as installation/horisontal cable in tougher electrical and mechanical environment, including ships and offshore units.
Standards
EN 50173-1; EN 50288-2-1
ISO/IEC 11801; IEC 61156-5
Fire rating
MUD protecting outer sheath                      : IEC 60754-2, IEC 61034, IEC 60332-3-24 Inner sheath LSHF-FR(SHF1)                     : IEC 60754-2, IEC 61034, IEC 60332-3-24
Chemical resistance
Mineral oils IRM 902 (IEC60811-2-1)          : 7 days/100°C Diesel – IRM 903 (IEC60811-2-1)               : 7 days/100°C

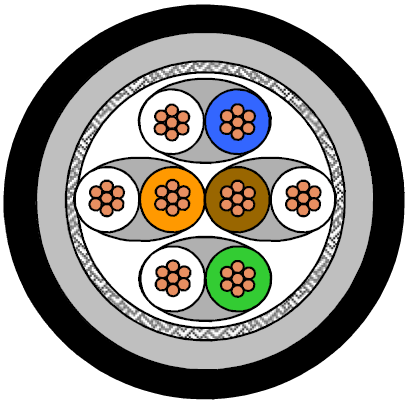

Construction
Conductor Stranded copper wire Ø 0.22 mm2
Insulation PE, Ø 1.4 mm
Twisting 2 cores to the pair
Cable lay up 4 pairs
Pair screen Al-laminated plastic foil around each pair
Overall screen Copper braid, tinned Ø 6,2 mm
Inner sheath Oil resistant, Fire retardant and halogen free LSHF-FR (SHF1) Ø 7,7 mm
Outer sheath MUD protecting
Mechanical Properties
Bending radius Installation 8 x D
Installed 4 x D
Temperature range During operation -40°C to + 85°C
During installation -15°C to + 50°C
Fire load 4 pair (On request) MJ/km
Maximum tensile load, installation During installation 100 N
Installed No  load
Electrical Properties                                                             at 20°C
DC loop resistance £ 158 Ω/km
Resistance unbalance £ 2%
Insulation resistance (500 V) ³ 5000 MΩxkm
Capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair to ground) £ 300 pF/km
Mean Characteristic impedance @ 100 MHz) 100 ± 5 Ω
Nominal velocity of propagation 0,75c
Propagation delay £ 450 ns/100 m
Delay skew £ 15 ns/100 m
Transfer impedance at 1 MHz £ 10 mΩ /m
at 10 MHz £ 8 mΩ /m
at 30 MHz £ 10 mΩ /m
Coupling attenuation ³ 85 dB
Nominal Transmission characteristics                                at 20°C
F
(MHz)
Attenuation
(dB/100m)
NEXT
(dB)
ACR
(dB/100m)
Return loss
(dB)
PS-NEXT
(dB)
PS-ACR
(dB/100m)
ELFEXT
(dB/100m)
PS-ELFEXT
(dB/100m)
1 2,1 90 88 87 85 85 82
4 4,0 90 86 27 87 83 85 82
10 6,3 90 84 30 87 81 79 76
16 8,0 90 82 30 87 79 75 72
20 9,0 90 81 30 87 78 73 70
31.25 11,4 90 79 30 87 76 69 66
62.50 16,5 86 70 30 83 67 63 60
100 21,3 83 62 30 80 59 59 56
155.00 24,2 81 57 26 78 54 57 54
200.00 31,5 78 47 25 75 44 53 50
250.00 35,8 77 41 25 74 38 51 48
300.00 47,1 73 26 23 70 23 47 44
600.00 60,1 71 11 20 68 8 44 41
Technical data
Part no. Description Colour Outer diameter
mm
Fire load Weight
kg/km
MJ/km kWh/m
1000846 ToughCat MUD C5e S/FTP P 4Px0.22mm2 Dark Grey RAL7024 9,6 *) *) 100
*)-On request
Product Code Table
Product Description Product Code PG Reference Code PG Part Number
ToughCat MUD C5e S/FTP P 4Px0.22mm2 100846 60015701 60015701
ToughCat MUD C5e S/FTP 4Px0.22mm2 500DP 1000846-00500DP 60015701 60015703
