PURWIL EPR/PUR EMC Line
Flexible low voltage cables
25_1_0
S05BC4Q-F / S07BC4Q-F
Flexible and shielded multi-core polyurethane cable
- Test voltage
≤ 1mm2:2000V/50Hz
≥ 1.5 mm2:2500V/50Hz - Min. bending radius 15 x D (D = cable-Ø)
- Halogen-free
Application
- SF6 switchgear
- Engine construction
- Machine tool construction

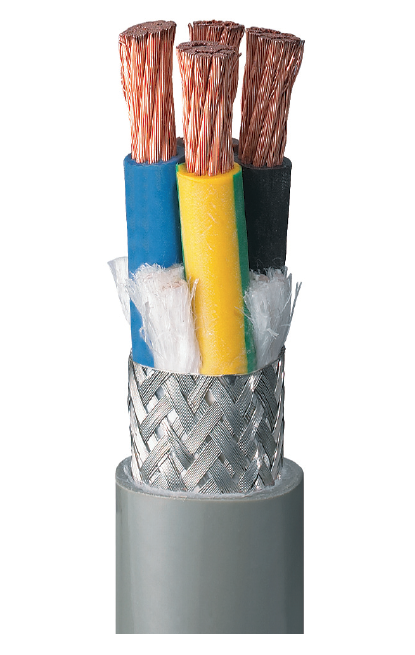

Construction
- Copper cord flex, cl. 5 (IEC 60228) finely stranded
- EPR insulation; colour of conductors acc. to CENELEC HD308S2
- Tinned copper shield
- Sheath polyurethane PUR
Description
- Very robust
- Oil and petrol resistant
- Cold flexibility
- Nominal voltage
≤ 1mm2:Uo/U 300 V /500 V
≥ 1.5 mm2: Uo/U 450 V / 750 V
Temperature range
-40°C…+90°C static
Short-term application up to 110°C
Jacket colour
Grey similar to RAL 7011
Standards
- SEV TP20B/3C
- IEC 60754-1 halogen free
Remarks
Special labelling of outer sheath on request
Technical data
| Cross-section mm² | Part no. | Conductor design | Ø d1 mm | Ø D approx. mm | Cu-number kg/km | Weight kg/km |
| 2×0.75 | 18356 | 2Lnum | 5.5 | 7.2 | 38.50 | 68.0 |
| 3×1 | 18511 | 2Lnum+PE | 6.2 | 8.1 | 56.70 | 87.0 |
| 5×1 | 18512 | 4Lnum+PE | 7.6 | 9.7 | 82.40 | 140.0 |
| 3×1.5 | 18513 | 2Lnum+PE | 7.7 | 9.7 | 79.20 | 118.0 |
| 4×1.5 | 18514 | 3Lnum+PE | 8.5 | 10.7 | 96.30 | 166.0 |
| 5×1.5 | 18520 | 4Lnum+PE | 9.5 | 11.7 | 114.50 | 198.0 |
| 7×1.5 | 18521 | 6Lnum+PE | 10.4 | 13.2 | 146.50 | 260.0 |
| 12×1.5 | 18522 | 11Lnum+PE | 14.3 | 17.7 | 256.80 | 439.0 |
| 16×1.5 | 18523 | 15Lnum+PE | 16.0 | 19.6 | 324.20 | 547.0 |
| 3×2.5 | 18530 | 2Lnum+PE | 9.2 | 11.4 | 116.60 | 190.0 |
| 4×2.5 | 18531 | 3Lnum+PE | 10.2 | 12.6 | 164.40 | 242.0 |
| 5×2.5 | 18532 | 4Lnum+PE | 11.7 | 14.3 | 191.50 | 308.0 |
| 4×4 | 18534 | 3LPE | 12.4 | 15.0 | 227.90 | 350.0 |
| 5×4 | 18540 | 3LNPE | 13.7 | 16.5 | 277.50 | 426.0 |
| 4×6 | 18541 | 3LPE | 14.3 | 17.3 | 316.70 | 470.0 |
| 5×6 | 18542 | 3LNPE | 15.9 | 19.1 | 386.30 | 579.0 |
| 4×10 | 18543 | 3LPE | 18.1 | 22.5 | 530.70 | 800.0 |
| 5×10 | 18544 | 3LNPE | 20.2 | 24.8 | 644.20 | 971.0 |
| 4×16 | 18561 | 3LPE | 21.1 | 25.7 | 781.10 | 1110.0 |
| 5×16 | 18562 | 3LNPE | 23.4 | 28.4 | 953.70 | 1357.0 |
| 4×25 | 21408 | 3LPE | 25.7 | 30.5 | 1139.50 | 1580.0 |
| 5×25 | 21409 | 3LNPE | 28.7 | 34.2 | 1443.30 | 1989.0 |
| 4×35 | 21410 | 3LPE | 29.5 | 34.9 | 1610.40 | 2122.0 |
| 4×50 | 21411 | 3LPE | 34.5 | 40.7 | 2212.80 | 2900.0 |
| 5×50 | 21412 | 3LNPE | 38.5 | 45.0 | 2733.40 | 3629.0 |
| 4×70 | 21413 | 3LPE | 39.0 | 46.0 | 3039.00 | 3997.0 |
| 4×95 | 21414 | 3LPE | 45.3 | 52.2 | 4282.00 | 5470.0 |
| 1×50 | 23706 | L | 14.4 | 17.7 | 5382.00 | 6780.0 |
| 1×70 | 23708 | L | 16.2 | 19.9 | 7565.00 | 9150.0 |
| 1×95 | 23710 | L | 18.8 | 22.8 | 1057.20 | 1245.0 |
| 1×120 | 23712 | L | 21.1 | 25.3 | 1304.30 | 1515.0 |
| 1×150 | 23714 | L | 22.8 | 27.6 | 1574.00 | 1875.0 |
| 1×185 | 23716 | L | 25.4 | 30.4 | 2004.10 | 2330.0 |
| 1×240 | 23718 | L | 29.0 | 34.5 | 2541.30 | 2950.0 |
