Stäubli cable-coubler MC4
DownloadDatasheet PDF Stäubli cable-coubler MC4 Fast moving technology Photovoltaic main catalog Solarline | Connectors for renewable energy PLUG CONNECTORS Advantages... Lees meer
Beschrijving
Stäubli cable-coubler MC4
Fast moving technology
Photovoltaic main catalog
Solarline | Connectors for renewable energy
PLUG CONNECTORS
Advantages of the MC4 connector range

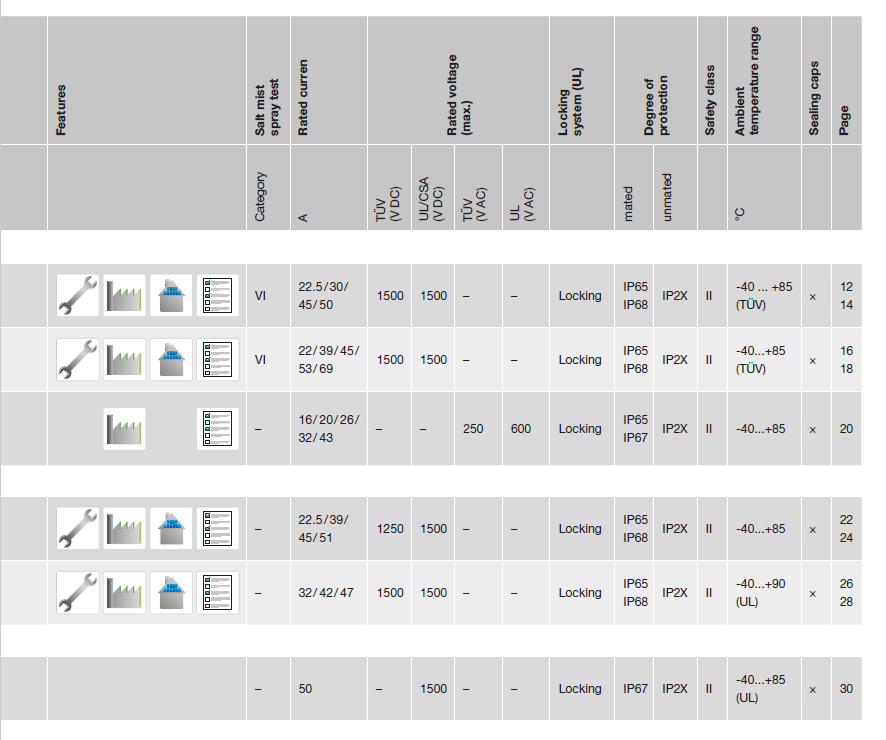

Overview of plug connectors
1) Certifications are in some cases limited to specific types or still pending. Details are given on the relevant product pages.

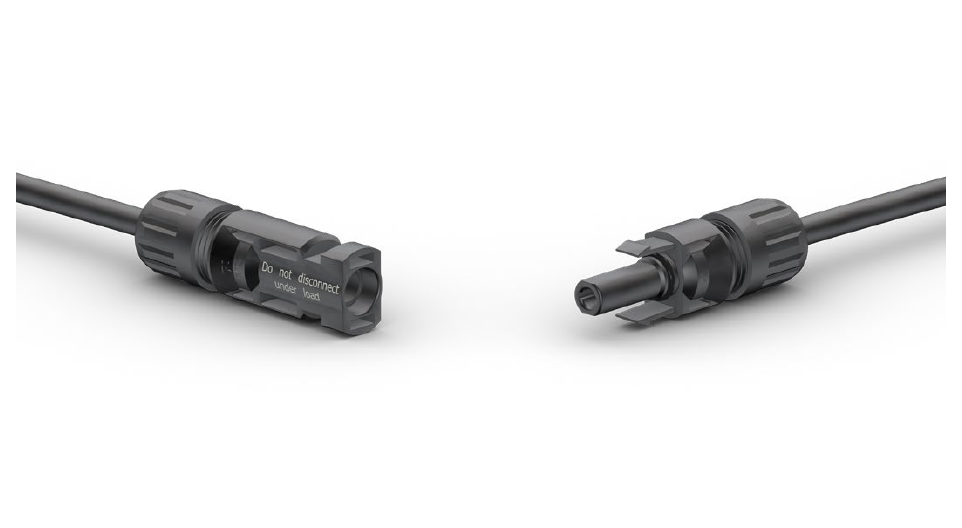

Female and male cable coupler MC4
Female and male cable coupler as individual part (including insulating part)
Note:
For more detailed information concerning the suitable cable gland range, please consult MA231
■ Snap-in lock
■ In accordance with NEC 2014, requires a tool to open
■ Proven MULTILAM technology with high long-term stability, which ensures con-sistently low performance loss through-out the entire service life of the plug connector
■ Tried and tested plug connectors, over 15 years of experience in the field
■ Available for assembly with cross- sections of 10 mm²
■ Also available as ready made leads
■ Mating compatibility with MC4 connec-tor family
■ Leads made to customer’s specifications
Technical data | |
Connector system | Ø 4 mm |
1000 V DC (IEC 62852) | |
Rated voltage | 1500 V DC (2Pfg2330)¹⁾ |
1500 V DC (UL)²⁾ | |
22.5 A (2.5 mm²) 39 A (4 mm²/6 mm²) | |
Rated current TÜV (85°C) | |
45 A (10 mm²) | |
30 A (14 AWG) 30 A (12 AWG/10 AWG) | |
Rated current UL | |
50 A (8 AWG) | |
12 kV (1000 V DC (TÜV)) | |
Rated impulse voltage | |
16 kV (1500 V DC (TÜV)) | |
-40°C…+85°C (TÜV) | |
Ambient temperature range | |
-40°C…+75°C (UL) | |
Upper limiting temperature | 105°C (TÜV) |
Degree of protection, mated | IP65, IP68 (1 h / 1 m) |
unmated | IP2X |
Overvoltage category / Pollution degree | CATIII / 3 |
Contact resistance of plug connectors | ≤ 0.25 mΩ |
Safety class | 1000 V DC: II 1500 V DC: 0 |
Contact system | MULTILAM |
Type of termination | Crimping |
Contact material | Copper, tin plated |
Insulation material | PC / PA |
Locking system (UL) | Locking type |
Flame class | UL94-V0 |
Ammonia resistance (acc. to DLG) | 1500 h, 70°C / 70% RH, 750 ppm |
Salt mist spray test, degree of severity 6 | IEC 60068-2-52 |
TÜV-Rheinland certified, | R60127190 3) |
in accordance with IEC 62852 | |
TÜV-Rheinland certified, | R60087448 |
in accordance with 2PfG2330 | |
UL recognized component, | E343181 |
in accordance with UL 6703 | |
CSA certified, in accordance with UL 6703 | 250725 |
CQC certified according CNCA/CTS0002-2012 | CQC16024138286 |
1) 2Pfg2330: only approved for locations with restricted access
2) for selected configurations; see assembly instructions MA231 for details
3) For PV junction boxes in accordance with IEC62790, lines in accordance with EN50618 must be used
