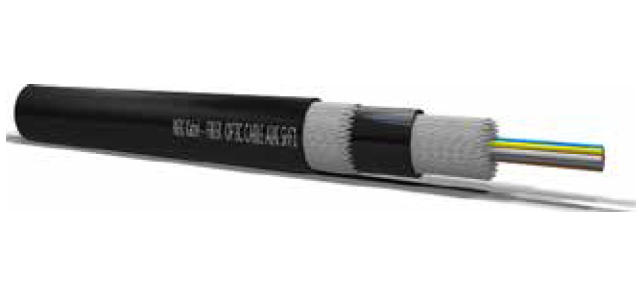

AIAI Tight reinforced with double sheath Non metallic, double dielectric 12 or 24 fiber

Application:
Optical cable for industry, ship and offshore environments. The cable is suitable for both indoor and outdoor use. Double jacket with glass yarn in between, makes the cable mechanically strong without use of metal, and therefore suitable for installation together with Cu-cable. The waterblocking glass yarns between inner sheath and the fibers makes the cable waterproof.
Specifications:
Temperature installed:                        -30 to +70  [°C]
Temperature @ installation:               -10 to +50  [°C]
Temperature storage:                         -40 to +70  [°C]
Tensile perf.: (IEC60794-1-2-E1)                      2000  [N]
Crush: (IEC60794-1-2-E3)                                 2000  [N]
Impact: (IEC60794-1-2-E4)                                    20  [J]
Water penetration: (IEC60794-1-2-F5)  No water leakage (limited to inner sheath)
Min. bending radius static:                              10  x outer diam
Min. bending radius static:                              15  x outer diamNorm:
– Halogen acid emission <_0,3% when tested acc. to IEC 60754-1/2
– Degree of acidity of gases evolved during of the combus- tion (pH value >_4,3 and Conductivity <_10mS/mm) when tested acc. to IEC 60754-1/2
– Smoke emission (Transmittance) >_60% when tested acc. to IEC 61034-1 and IEC 61034-2
– Fire propagation complying with IEC 60332-3-24 and IEC 60332-1-2
Approvals:                           DNV- and ABS-certified

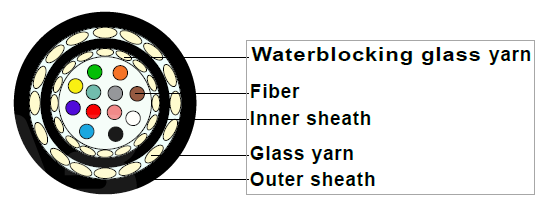

Construction:
Optical core:         Tight buffered, nom. Ø=0,9mm
Color of fiber:1 – blue            13 – blue + black ring
2 – orange       14 – orange + black ring
3 – green         15 – green + black ring
4 – brown         16 – brown + black ring
5 – grey            17 – grey + black ring
6 – white          18 – white + black ring
7 – red             19 – red + black ring
8 – black          20 – yellow + black ring
9 – yellow         21 – violet + black ring
10 – violet        22 – pink + black ring
11 – pink          23 – turquoise + black ring
12 – turquoise  24 – white + doubleblack ringProtection/dielectric:     Waterblocking glass yarns
Inner sheath:        Black LSZH compound,
thickness 1,2mm
Ø=6,7mm 12 fibre
Ø=8,5mm 24 fibreProtection/dielectric:     Glass yarns
Outer Sheath:      Black LSZH, UV-resistant compound,
thickness 1,3mm
Ø=10,3mm 12 fibre
Ø=12,1mm 24 fibre

Weigth:
12 fibre:    115 kg/km
24 fibre:    160 kg/km
