Data cable

SFTP cat 7 patch 4p 27-7 PUR

Download Datasheet PDF ICS IE UC900 SS27 Cat.7 PUR IE S/FTP patch cable 4x2xAWG27/7 with abrasion and oil resistant PUR... read more

Description

Download
Datasheet PDF

ICS IE UC900 SS27 Cat.7 PUR

IE S/FTP patch cable 4x2xAWG27/7 with abrasion and oil resistant PUR sheath
Application
Work area and patch cord cable
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
EIA/TIA 568A;
ISO/IEC 11801 2nd ed.; IEC 61156-6
EN 50173-1; EN 50288-4-2
Flame resistance
IEC 60332-1; IEC 60754-2; IEC 61034
Chemical resistance
Oil resistant against Mineral – oil, ASTM – oil The sheath material is tested in Hydraulic oil
ARAL VITAM 32, Mobil DTE 13 M, Gear oil ARAL DEGOL  BG Plus 320 and Tribol 1710/320.

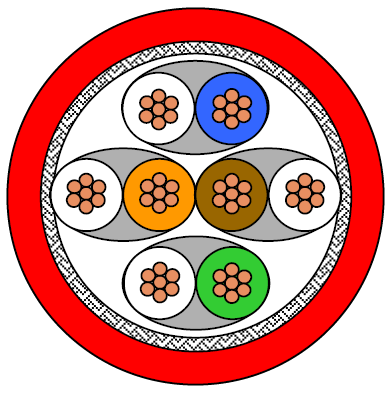

Construction
Conductor stranded bare copper wires, Ø 0.42 mm (AWG 27/7)
Insulation foam-skin Polyethylene, Ø 0.98 mm
Twisting 2 cores to the pair
Pair screen Al-laminated plastic foil
Cable lay up 4 pairs (PiMF) to the core
Screen copper braid, tinned
Sheath PUR
Colour red
Marking DRAKA UC900 SUPER SCREEN 27 CATEGORY 7 S/FTP Patch 4P IEC 61156-6 PUR, batch number and meter marking
Mechanical properties
Bending radius without load ³ 25 mm
with load ³ 50 mm
Temperature range during operation -35°C to + 75°C
during installation -5°C to + 50°C
UV resistance of sheath material acc. to IEC60068-2-5
Ozone resistance acc. to  EN 60811-2-1, clause 8
Smoke density acc. to EN 50268-2, IEC61034-1 and 2
Corrosivity acc. EN 50267-1 and 2, IEC 60754-1
and 2
Electrical properties                                                      at 20°C± 5°C
Loop resistance £ 340 Ω/km
Resistance unbalance £ 3%
Insulation resistance (500 V) ³ 2000 MΩ*km
Mutual capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair/ground) £ 1500 pF/km
Characteristic impedance (1-100 MHz) (100 ± 15) Ω
(100 – 250) MHz
(250 – 600) MHz
(100 ± 18) Ω
(100 ± 25) Ω
Nominal velocity of propagation ca. 79 %
Propagation delay £ 427 ns/100m
Delay skew £    12 ns/100m
Test voltage (DC, 1 min) core/core and core/screen 1000 V
Transfer impedance at    1 MHz 25 mΩ/m
at  10 MHz 15 mΩ/m
at  30 MHz 30 mΩ/m
Coupling attenuation 75 dB
Electrical data (nominal)                                                        acc. to Cat.7  (at 20°C)
F (MHZ) Attenuation (dB/10m) NEXT (dB) PS-NEXT (dB) ACR
(dB/100m)
ELFEXT
(dB/100m)
PS-ELFEXT
(dB/100m)
Return loss (dB)
1.0 0.3 90 87 90 80 77 23
4.0 0.6 90 87 89 80 77 24
10.0 1.0 90 87 89 80 77 25
16.0 1.3 90 87 89 76 73 25
20.0 1.4 90 87 89 74 71 25
31.2 1.8 90 87 88 70 67 25
62.5 2.6 90 87 87 64 61 23
100.0 3.2 87 84 84 60 57 21
125.0 3.6 85 82 81 58 55 20
155.5 4.0 84 81 80 56 53 19
175.0 4.3 83 80 79 55 52 19
200.0 4.6 82 79 77 54 51 18
250.0 5.1 81 78 76 52 49 18
300.0 5.6 80 77 74 50 47 17
450.0 6.9 77 74 70 47 44 17
600.0 7.9 75 72 67 44 41 17
750.0 8.7 73 70 64 42 39
900.0 9.7 72 69 62 41 38
1000.0 10.2 71 68 61 40 37
Technical data
Part number Cable type DIN/VDE Product name Colour Outer diameter
mm
Fire load Weight
kg/km
Copper content Tensile force
N
MJ/km kWh/m
1001136 Li-02YSC11Y 4x2x0.42L PiMF UC900 SS27 Cat.7 PUR S/FTP 4P red 5.9 383 0.106 34 24 100
Product Code Table
Product Description Product Code PG Reference Code PG Part Number
UC900 SS27 C7 S/FTPp 4P PUR RD 500DW 1001136-00500DW 60014327 60011459
UC900 SS27 C7 S/FTPp 4P PUR RD 1001136 60014327 60014327
UC900 SS27 C7 S/FTPp 4P PUR RD 100RW 1001136-00100RW 60014327 60014328
UC900 SS27 C7 S/FTPp 4P PUR RD 1000DW 1001136-01000DW 60014327 60014330
