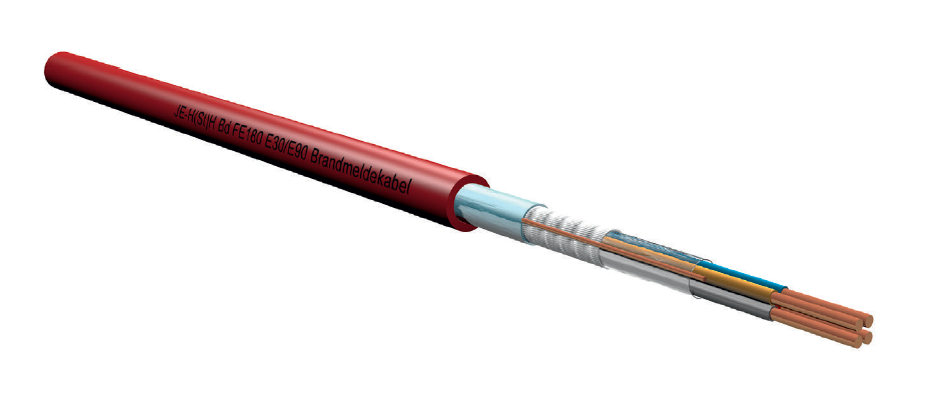

JE-H(St)H Bd FE180 E30/E90

Fire resistant cable

APPLICATION
As an installation cable for telecommunication purposes for fixed laying in fire risk areas where particular protection against fire and fire damage is required for people and property and a system’s functional integ-rity must be maintained for 30 or 90 minutes. The cable has an insulation integrity of at least 180 minu-tes. The functional integrity is guaranteed under a test voltage of 110 V. The cable should be laid within buildings. When using a tube, the cables can also be laid outdoors or underground. During installation, the general test certificates issued by the cable and carrier system manufacturer must be observed. Also suitable
for use as a fire alarm cable with a red outer sheath.

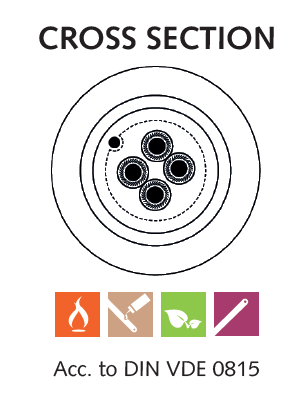

Structure
Conductor Copper conductor, bare, solid, based on DIN 4102, halogen-free dual
insulation made from special mica tape and insulation material HI
2, cores stranded into pairs, 4 pairs stranded into bundles, bundles la-
belled using colour-coded plastic tape covering, core wrapping made
from plastic-laminated aluminium foil with drain wire. Wrapped with
protective foil.
Cores Polymer compound insulation
Drain wire Copper drain wire
Shield Plastic-laminated metal foil with drain wire
Outer sheath Polymer compound



Technical data
Nominal voltage 225 V
Test voltage 800 V
Loop resistance 73.2 Ohm/gm
Insulation resistance 100 MOhm x km
Operating capacity 120 nF/km
Operating temperature -30°C bis +70°C
Max. operating temperature +70°C
Capacitive coupling For 100 m max. 300pF
Min. installation temperature -5°C
Max. installation temperature +50°C
Flame retardancy Halogen-free, flame-retardant HM2 sheath
Min. bending radius 15 x cable diameter
Smoke density HD 606 and IEC 601034-1, 601034-2 and BS 7622 part 1+2



Product description Cu weight Outer Ø (mm) Weight (kg/km) Fire load (kWh/m)
JE-H(St)H Bd 2x2x0.8    Red FE180 E30/E90 25 7,5 74 0,19
JE-H(St)H Bd 4x2x0.8    Red FE180 E30/E90 45 10,9 127 0,33
JE-H(St)H Bd 8x2x0.8    Red FE180 E30/E90 85 14,5 232 0,56
JE-H(St)H Bd 12x2x0.8   Red FE180 E30/E90 126 17,1 318 0,77
JE-H(St)H Bd 16x2x0.8   Red FE180 E30/E90 166 19,6 430 1,08
JE-H(St)H Bd 20x2x0.8   Red FE180 E30/E90 206 21,5 514 1,25
JE-H(St)H Bd 32x2x0.8   Red FE180 E30/E90 327 27 730 1,89
JE-H(St)H Bd 40x2x0.8   Red FE180 E30/E90 407 28,9 962 002
JE-H(St)H Bd 52x2x0.8   Red FE180 E30/E90 527 33,2 0.001 003
JE-H(St)H Bd 2x2x0.8      Orange FE180 E30/E90 25 7,5 74 0,19
JE-H(St)H Bd 4x2x0.8      Orange FE180 E30/E90 45 10,9 127 0,33
JE-H(St)H Bd 8x2x0.8      Orange FE180 E30/E90 85 14,5 232 0,56
JE-H(St)H Bd 12x2x0.8   Orange FE180 E30/E90 126 17,1 318 0,77
JE-H(St)H Bd 16x2x0.8   Orange FE180 E30/E90 166 19,6 430 1,08
JE-H(St)H Bd 20x2x0.8   Orange FE180 E30/E90 206 21,5 514 1,25
JE-H(St)H Bd 32x2x0.8   Orange FE180 E30/E90 327 27 730 1,89
JE-H(St)H Bd 40x2x0.8   Orange FE180 E30/E90 407 29,8 962 002
JE-H(St)H Bd 52x2x0.8   Orange FE180 E30/E90 527 33,2 1200 003

SPECIAL FEATURES
Properties
Halogen free

Sheath colour
Red, imprinted with the text ‘Brandmeldekabel’ or orange
