RFE-FRHF+WSR/WJR 250V
DownloadDatasheet PDF RFE-FRHF+WSR/WJR 250V Fire Resistant + Water Spray Resistant and/or Water Jet Resistant armoured pair instrumentation and communication cable... read more
Description
RFE-FRHF+WSR/WJR 250V
Fire Resistant + Water Spray Resistant and/or Water Jet Resistant armoured pair instrumentation and communication cable 250V
Application: For fixed installation in most areas and on open deck in ships and off shore units. Especially intended to ensure the availability of all critical transportation-, comfort- and safety systems, i.e. to meet the concepts of; Orderly Evacuation (3 hours burning time) and Safe Return to Port (Fire test with simultaneous Water Spray / Water Jet + mechanical shocks) to simulate the firefighting conditions.
If the cable is exposed to direct sunlight, we recommend cable with black outer sheath or a protective covering.

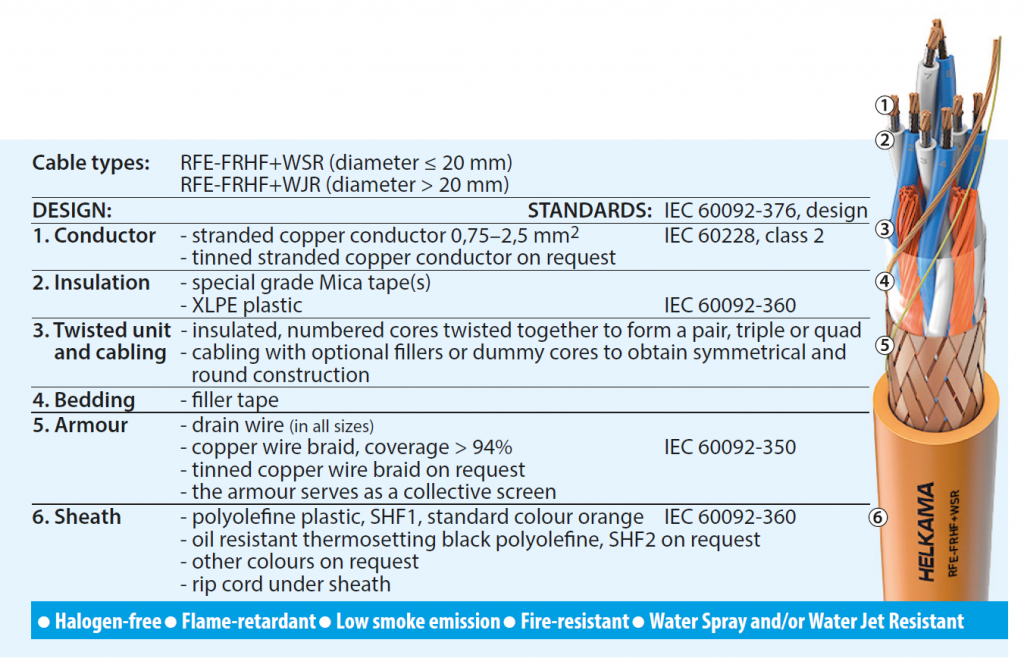

| Main characteristics | |
| Rated voltage | 150/250V (300V) |
| Halogen-free | IEC 60754 series |
| Flame-retardant | IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A |
| Smoke emission | |
| Fire- and Water Spray Resistant | IEC 60331-2 (180 min test) + EN 50200:2015 Annex E (diameter ≤ 20 mm) |
| Fire- and Water Jet Resistant | IEC 60331-1 (180 min test) + BS 8491:2008 (diameter > 20 mm) |
| Oil resistance (only SHF2) | IEC 60811-404 conditions according to 60092-360/SHF2 |
| For details see general information section | |
| Electrical data: | 0,75mm2 | 1,5mm2 | Unit |
| Loop resistance of pair, max. / +20°C | 52 | 24,4 | ohm/km |
| Pair capacitance, nom. / 1 KHz | 45 | 55 | nF/km |
| Loop inductance, nom. | 0,6 | 0,7 | mH/km |
| Insulation resistance / +20°C | ≥1500 | ≥1500 | Mohm/km |
| Recommended minimum bending radius (fixed installation): 4 x outer diameter of the cable | |
| Temperature rating: | Maximum conductor temperature + 90 °C Fixed installation -40 °C to +80 °C Minimum recommended installation temperature -15 °C |
| For details see general information section | |
| Part number | Number of conductors & cross-section n x mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Min. bending radius fixed installation mm |
| 620520 | 1x2x0,75 | 9,0 | 115 | 55 |
| 620522 | 2x2x0,75 Quad | 11,0 | 170 | 65 |
| 620524 | 2x2x0,75 | 14,0 | 200 | 85 |
| 620526 | 4x2x0,75 | 16,0 | 285 | 95 |
| 620528 | 7x2x0,75 | 19,5 | 445 | 115 |
| 620530 | 8x2x0,75 | 21,0 | 495 | 125 |
| 620532 | 10x2x0,75 | 24,0 | 615 | 145 |
| 620534 | 12x2x0,75 | 25,0 | 685 | 150 |
| 620536 | 14x2x0,75 | 26,5 | 765 | 160 |
| 620538 | 16x2x0,75 | 28,5 | 855 | 170 |
| 620538 | 19x2x0,75 | 30,5 | 970 | 180 |
| 620540 | 24x2x0,75 | 34,0 | 1205 | 205 |
| 620575 | 1x2x1,5 | 10,5 | 155 | 65 |
| 620577 | 2x2x1,5 Quad | 12,0 | 220 | 70 |
| 620579 | 2x2x1,5 | 16,0 | 300 | 95 |
| 620581 | 4x2x1,5 | 18,5 | 425 | 110 |
| 620583 | 7x2x1,5 | 22,5 | 650 | 135 |
| 620585 | 8x2x1,5 | 24,0 | 715 | 145 |
| 620587 | 10x2x1,5 | 27,0 | 875 | 160 |
| 620589 | 12x2x1,5 | 28,5 | 1000 | 170 |
| 620591 | 14x2x1,5 | 30,5 | 1125 | 180 |
| 620593 | 16x2x1,5 | 32,5 | 1280 | 195 |
| 620595 | 19x2x1,5 | 35,0 | 1460 | 210 |
Other sizes on request.
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
